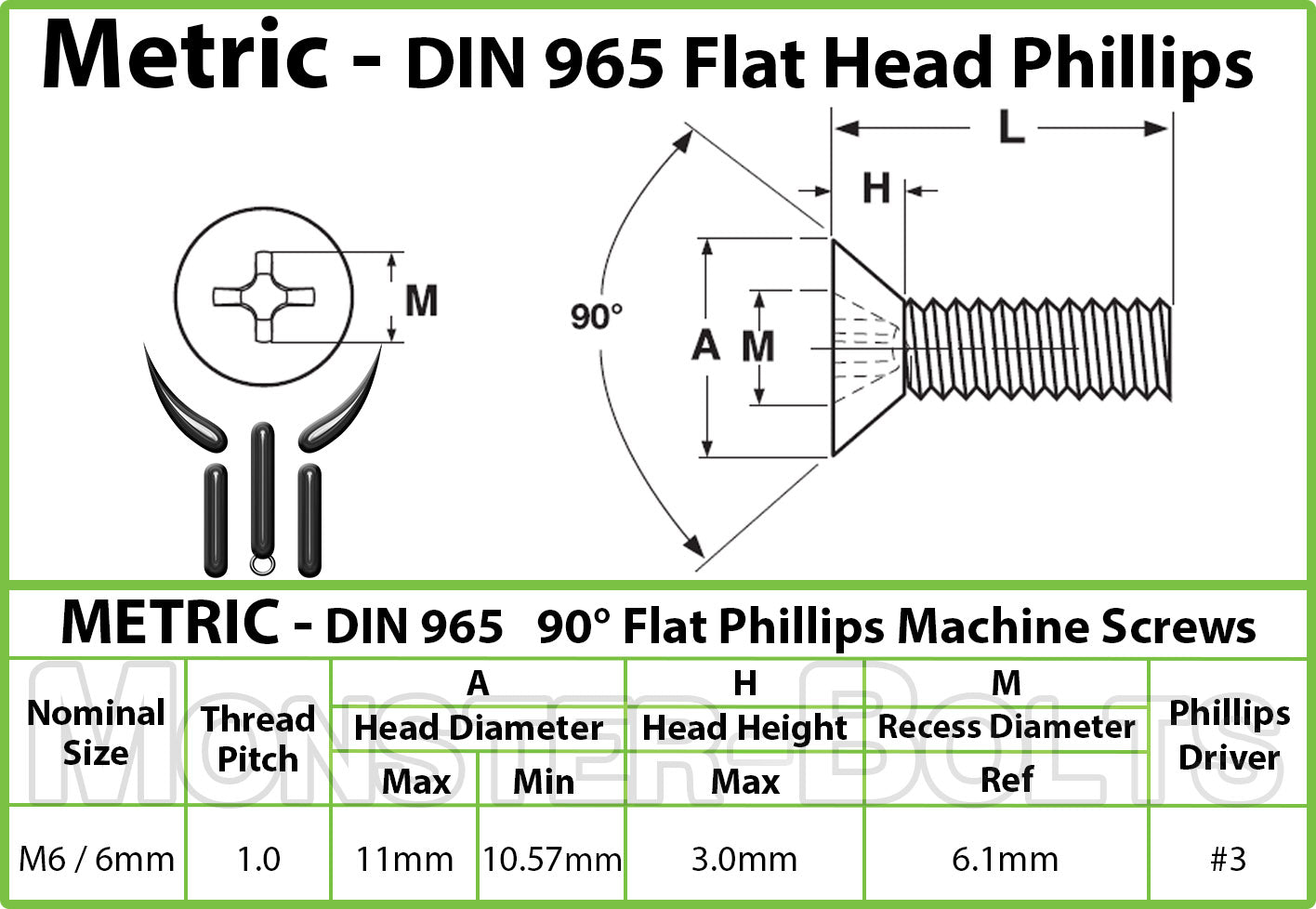

Specification sheet detailing the dimensions, thread size, material, and standards for M6 Phillips Flat Head Machine Screws with a black oxide finish.

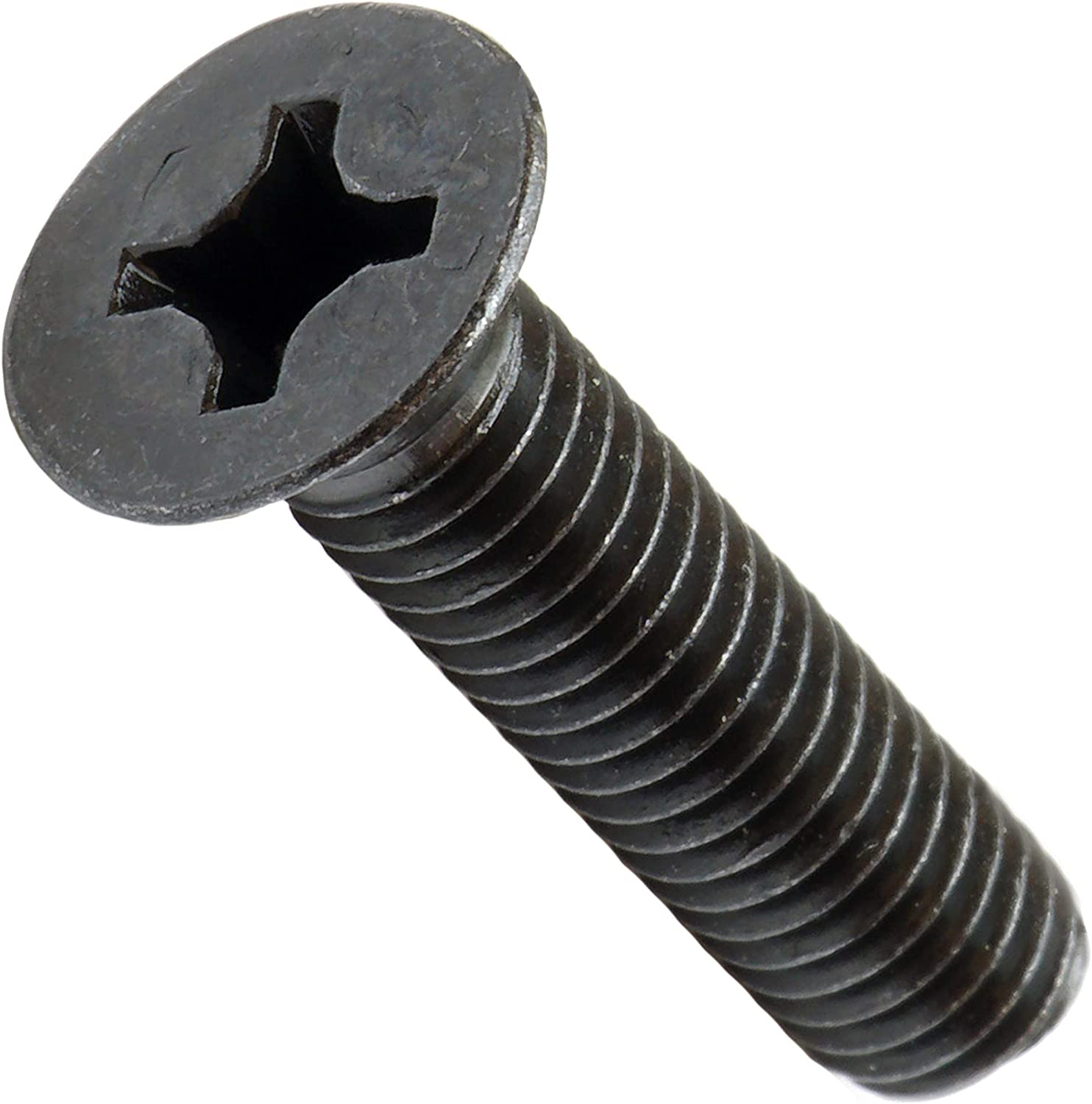

Close-up image of the M6 Phillips Flat Head Machine Screw, highlighting the black oxide finish and flush countersunk head design.

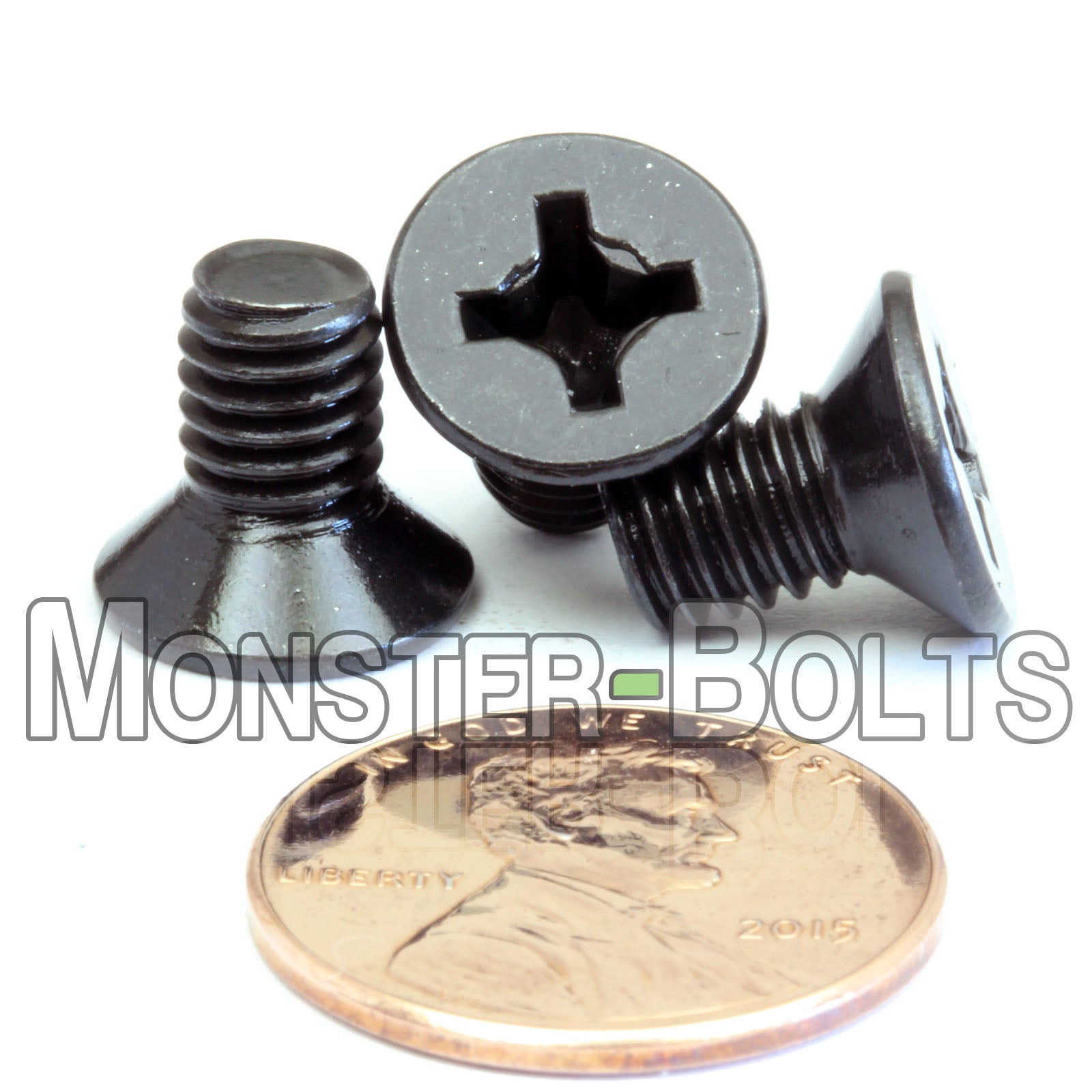

M6 x 10mm Phillips Flat Head Machine Screws shown with penny for scale.

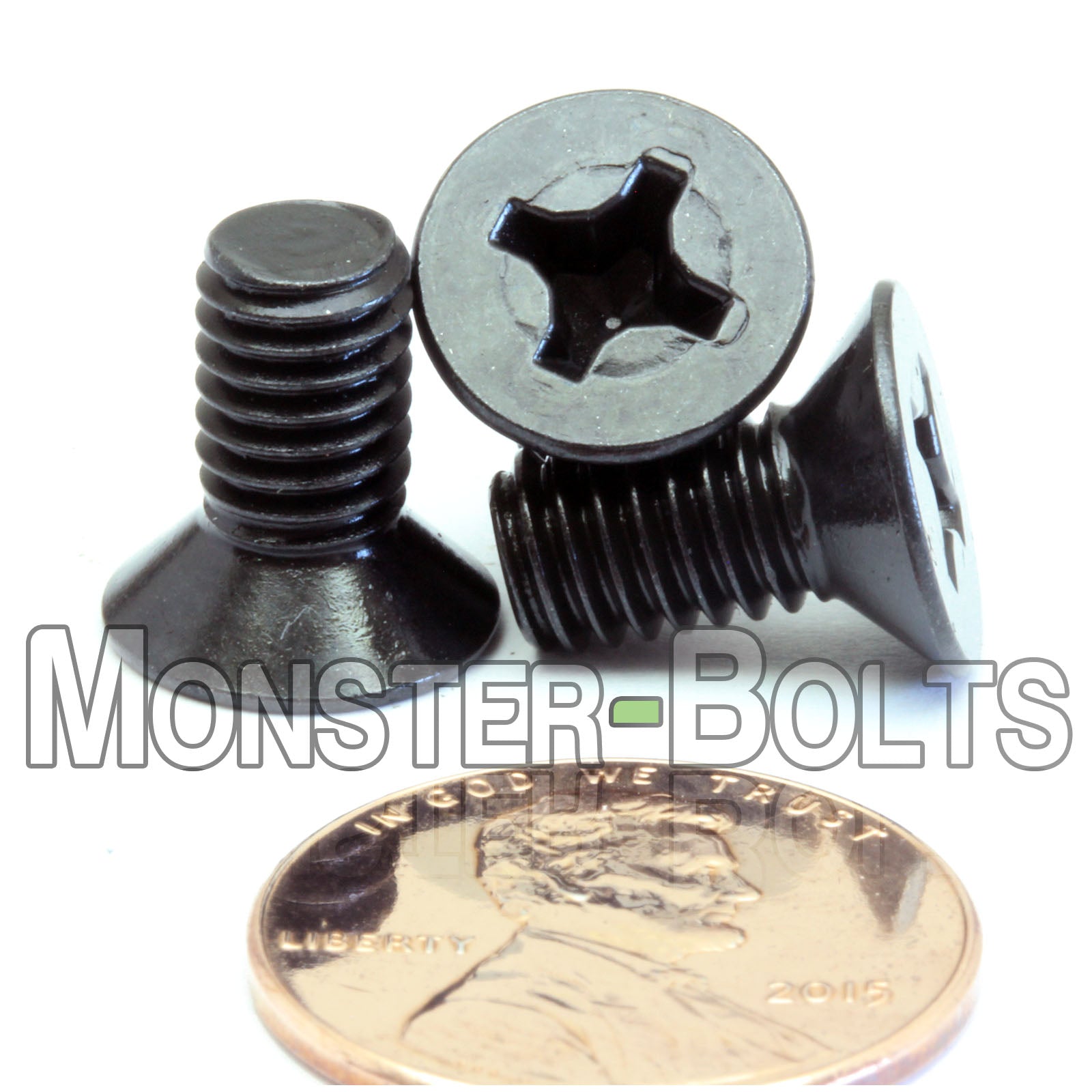

M6 x 12mm Phillips Flat Head Machine Screws shown with penny for scale.
Roll over image to zoom in Click on image to zoom
Four M6 Phillips Flat Head Machine Screws in ascending heights, with one screw angled to show the Phillips recess and flush countersunk design.Diagram showing how to measure countersunk screw length from head to tip, with basic specs for M6 Phillips Flat Head Machine Screws in carbon steel with black oxide finish.Specification sheet detailing the dimensions, thread size, material, and standards for M6 Phillips Flat Head Machine Screws with a black oxide finish.Close-up image of the M6 Phillips Flat Head Machine Screw, highlighting the black oxide finish and flush countersunk head design.M6 x 10mm Phillips Flat Head Machine Screws shown with penny for scale.M6 x 12mm Phillips Flat Head Machine Screws shown with penny for scale.

M6 Phillips Flat Head Machine screws, Steel w/ Black Oxide DIN 965 Coarse Thread

Monster Bolts
Length: M6 x 10mm
Package Quantity: 10
Price:
$2.57

Description

M6 Phillips Flat Head Countersunk Machine Screws

Carbon Steel Screws with Black Oxide Finish

Upgrade your projects with our M6 Phillips Flat Head Machine Screws, made from high-quality carbon steel and finished with a black oxide and oil coating. These screws are designed to sit flush with the surface when installed, providing a sleek, professional finish for a variety of applications, including electronics, precision instruments, and general assembly.

Please note, the length of countersunk screws is measured from the top of the head to the tip of the screw.

Key Features

  • Flush Installation: The flat head design ensures the screw sits flush with the surface, offering a smooth, clean finish in countersunk applications.
  • Durable Carbon Steel: Made from Class 4.8 carbon steel, offering excellent strength and durability for reliable fastening.
  • Black Oxide Coating: The black oxide and oil finish enhances corrosion resistance, making these screws suitable for indoor use or applications where mild corrosion protection is needed.
  • Quality Assurance: Monster Bolts ensures these screws meet or exceed industry standards, providing dependable performance for your projects.

Specifications

  • Diameter: M6 / 6mm
  • Thread Size: 1.0 - Coarse (Standard) Thread
  • Length: Countersunk screws are measured by overall length, not thread length (See diagram: "L")
  • Drive: Phillips #3
  • Material: Carbon Steel with Black Oxide and Oil Finish
  • Specifications: DIN 965 / ISO 7046
