Description
Monster Overview:

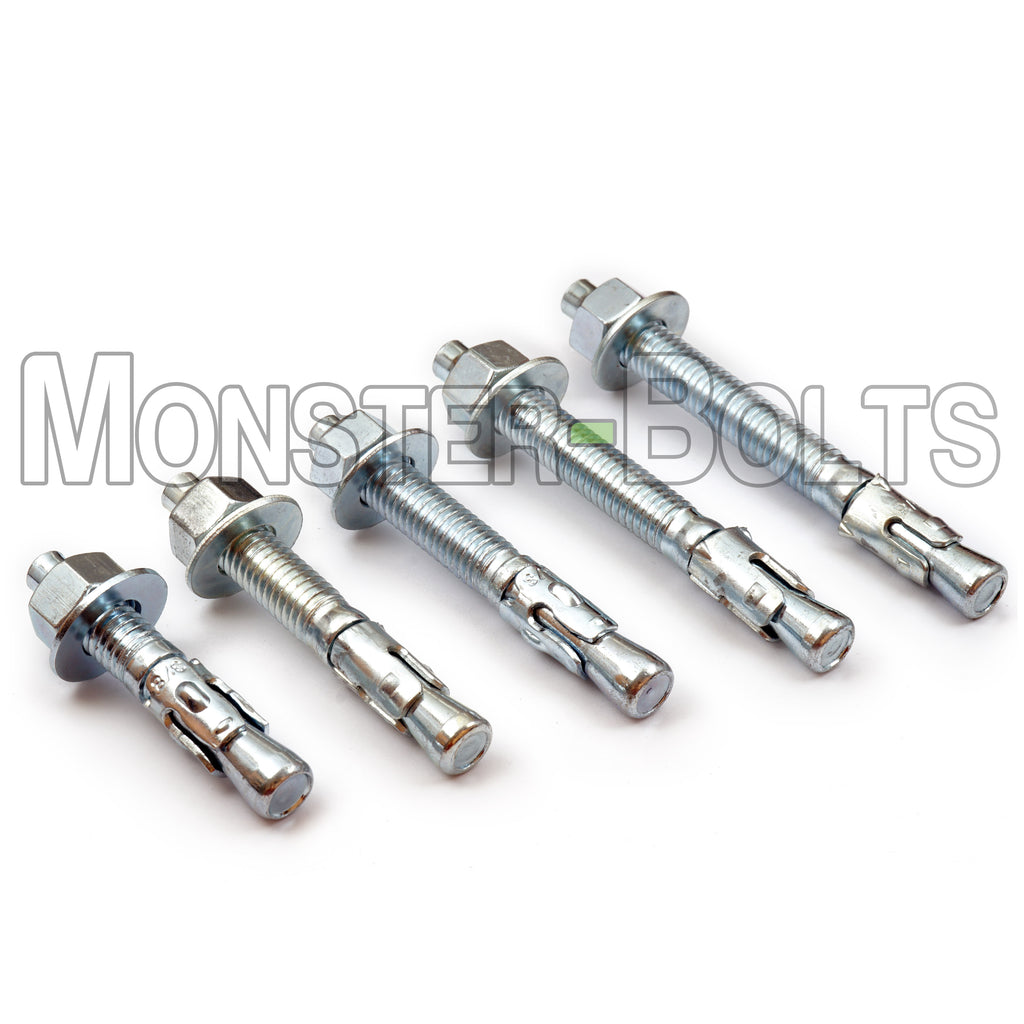

Trust the strength and durability of 1/2"-13 Commercial Wedge Anchors – Zinc CR+3 from Monster Bolts. Engineered from 1035 cold rolled steel, these anchors feature a 360° collet expansion mechanism that delivers maximum holding power in solid concrete. Perfect for structural steel, machinery, guardrails, and permanent industrial applications, wedge anchors are the reliable choice for high-load anchoring.
The Zinc CR+3 plating provides improved corrosion resistance while being fully RoHS compliant. A bull nose head helps prevent thread damage during installation, extended threading allows flexibility in embedment depth, and head stamping ensures easy post-install verification. These anchors are built for professional-grade performance where safety and strength are paramount.
Monster Features:
- Material: 1035 cold rolled steel with CR+3 Zinc plating (RoHS compliant).
- Expansion: 360° collet expansion ensures reliable hold in solid concrete.
- Thread Length: Longer threads provide flexibility in embedment depths.
- Bull Nose Head: Protects threads during hammering and installation.
- Head-Stamped: Easy identification of anchor size and length post-install.
- Applications: Heavy-duty, non-cracked concrete anchoring for permanent installations.
Monster Benefits:
- Superior pull-out strength and vibration resistance for structural applications.
- Permanent, high-load fastening in solid concrete.
- Versatile embedment depths supported by extended thread length.
- Fast installation using a hammer drill, carbide bit, and standard wrench.
Monster Specifications:
| Diameter / Thread | 1/2"-13 |
| Material | 1035 Cold Rolled Steel |
| Finish | Zinc CR+3 (RoHS Compliant) |
| Head Design | Bull Nose, Hex Nut & Washer |
| Expansion | 360° Collet Expansion |
| Applications | Structural steel, machinery, guardrails, permanent concrete fastening |

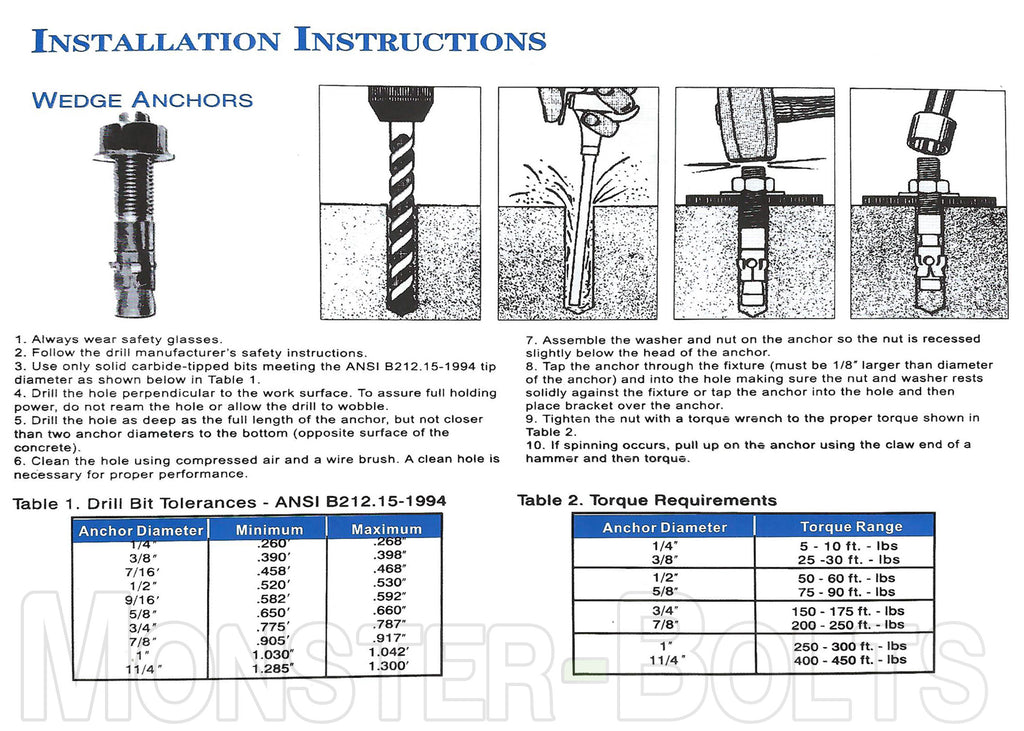

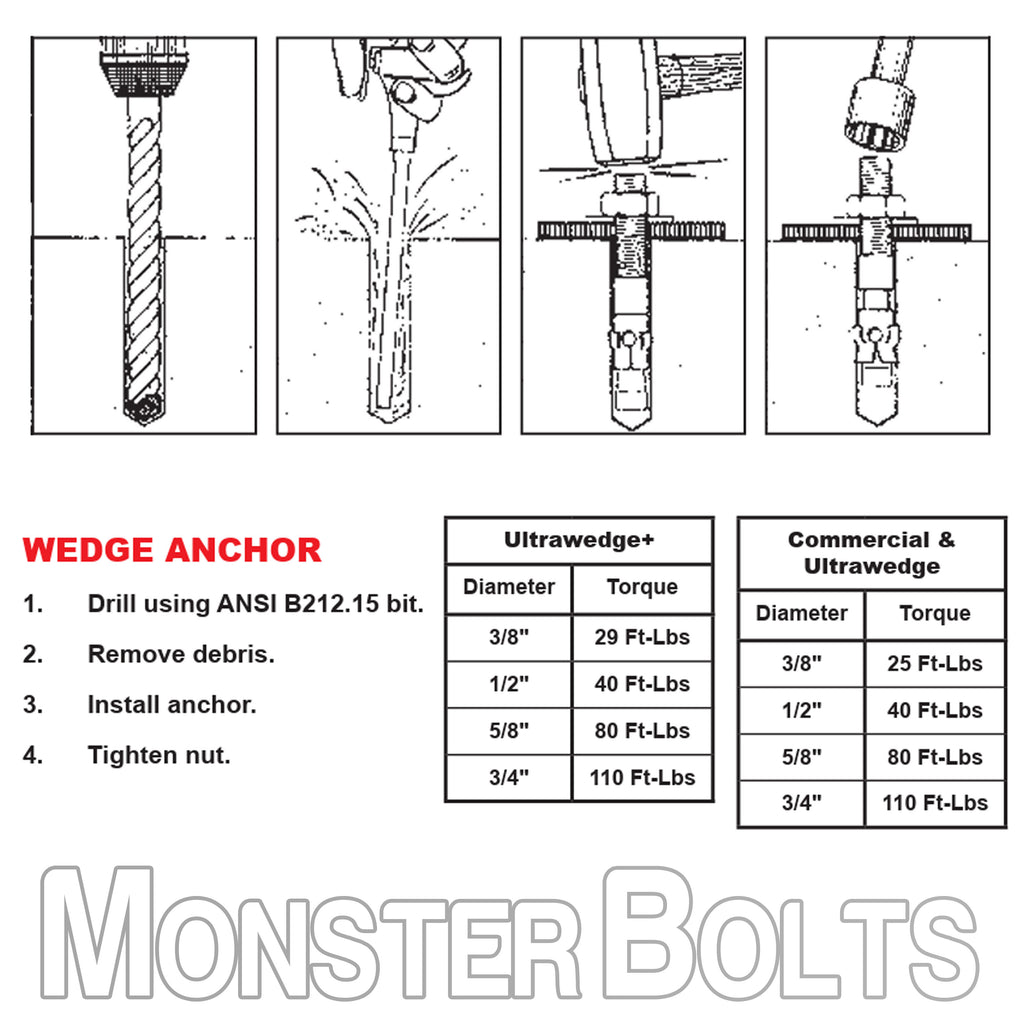

Quick Install Guide:
- Drill hole to required diameter and depth (minimum 1/2" deeper than anchor length).
- Clean hole thoroughly to remove all dust and debris.
- Insert anchor through fixture and hammer into hole.
- Tighten nut with a wrench to expand wedge clip and secure anchor.
Typical Applications:
- Structural steel anchoring
- Machinery and equipment baseplates
- Handrails and guardrails
- Permanent industrial and commercial installations
Order Yours Today!
Choose 1/2"-13 Commercial Wedge Anchors – Zinc CR+3 for dependable, high-load anchoring into solid concrete. Order in bulk from Monster Bolts and secure your projects with confidence!
