Monster Overview:

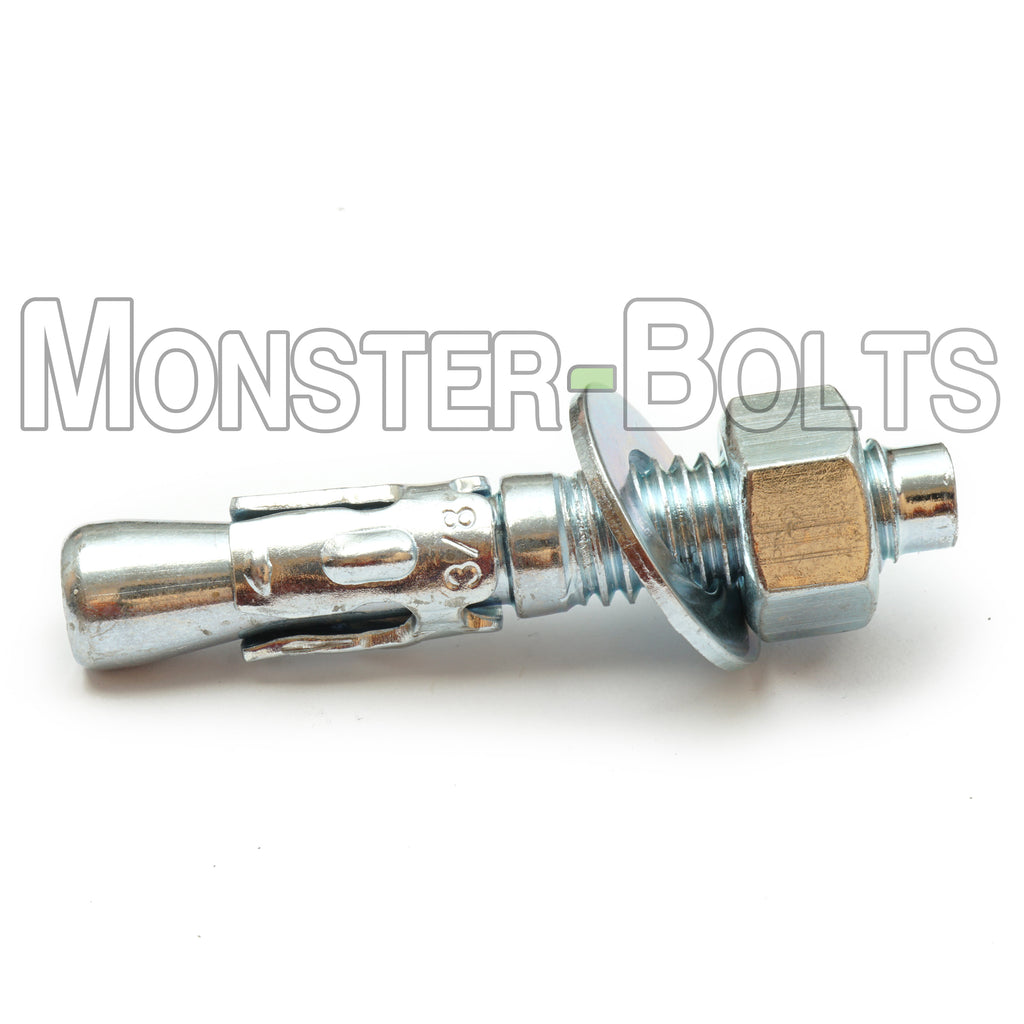

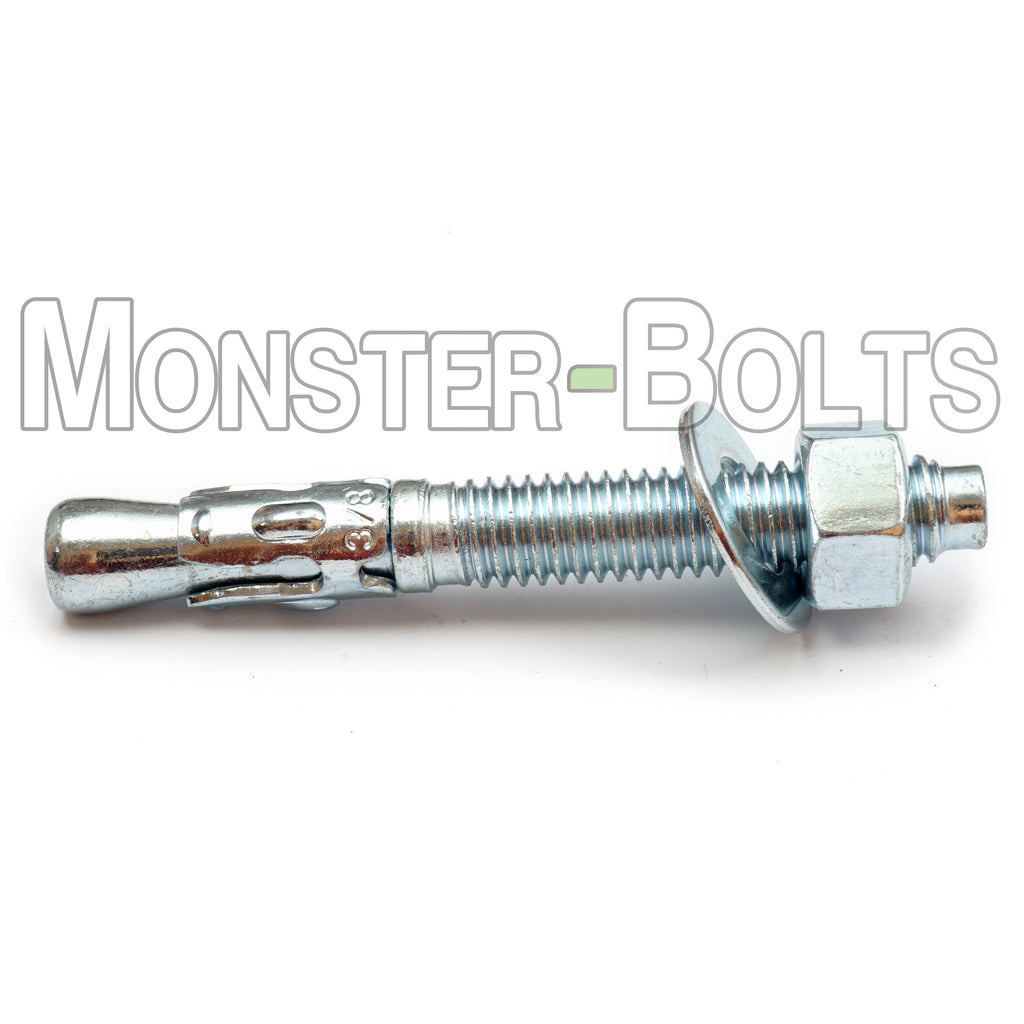

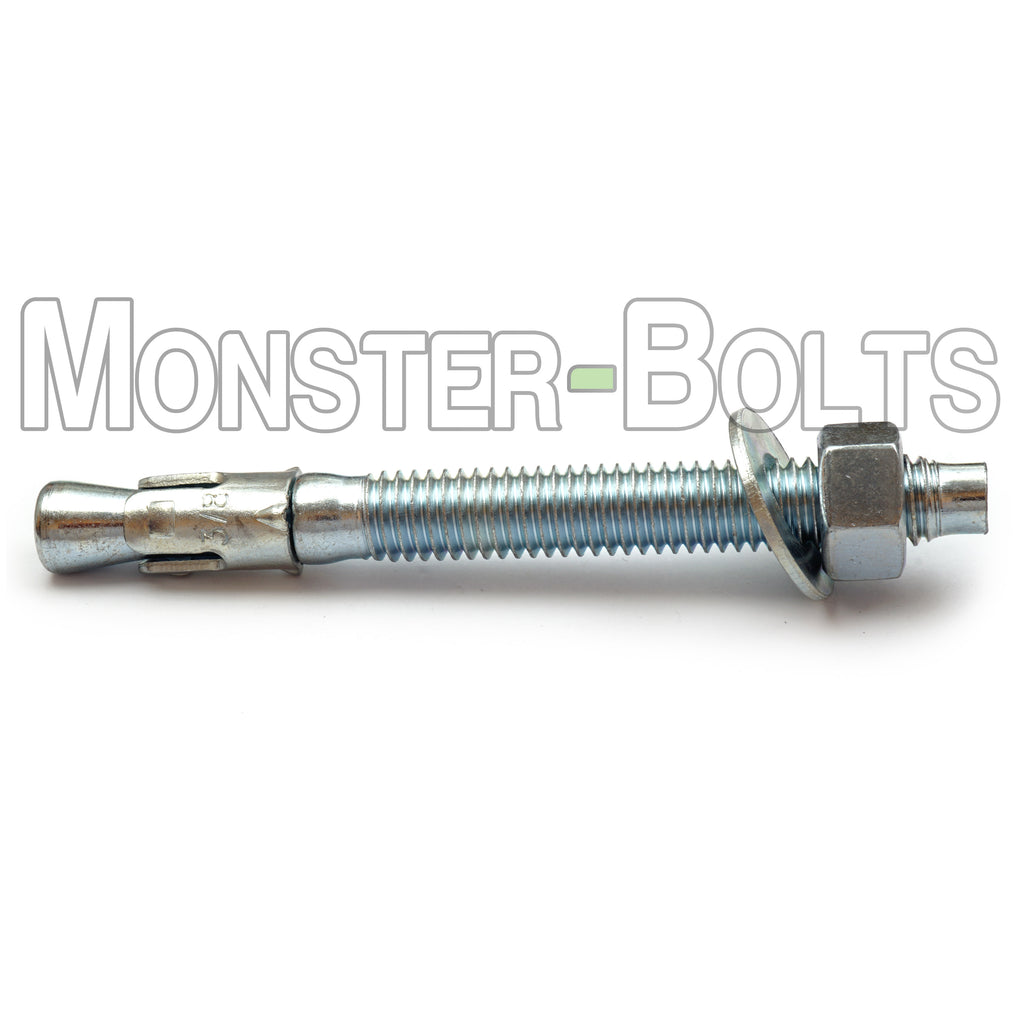

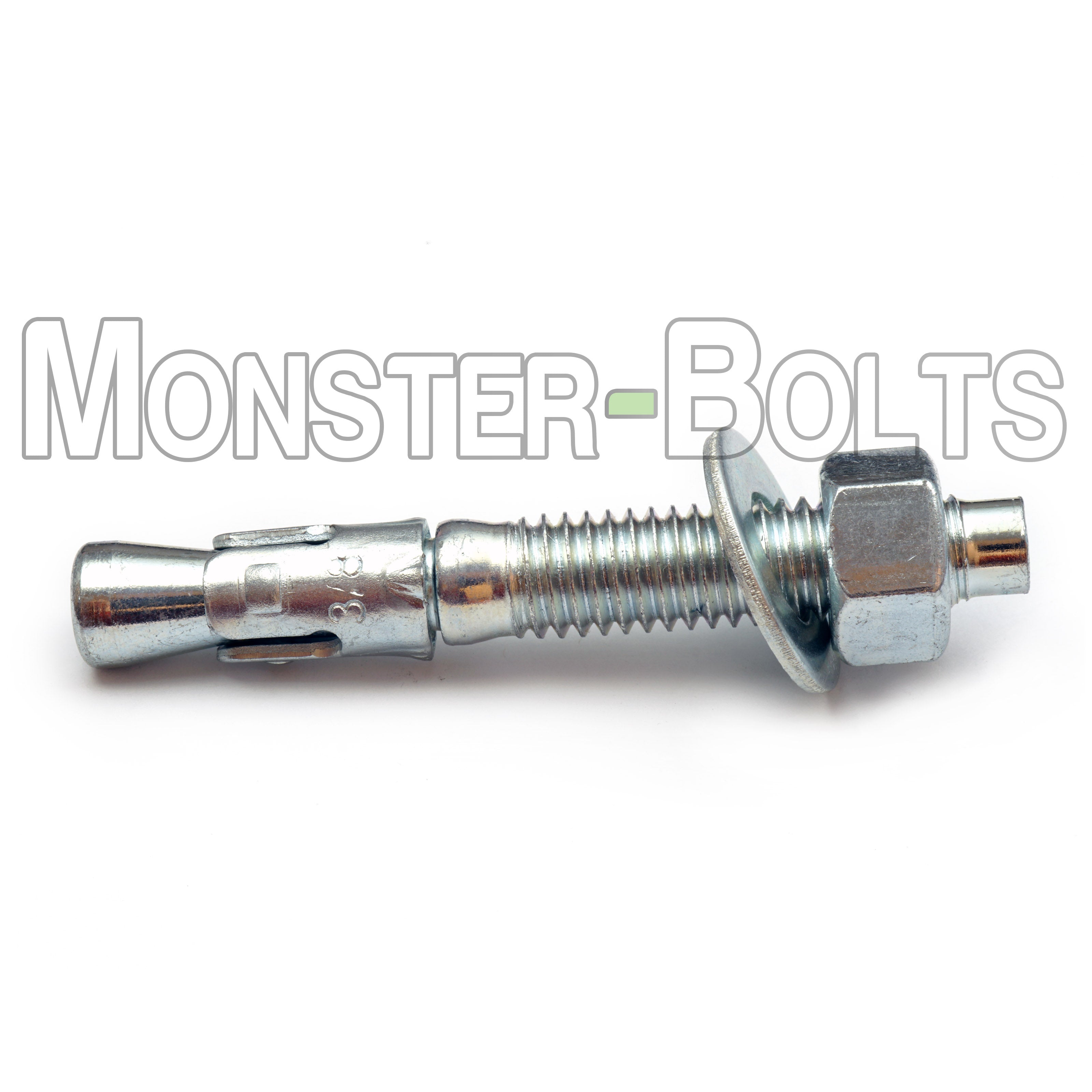

Upgrade your fastening solutions with 3/8"-16 Ultrawedge®+ Wedge Anchors – Zinc CR+3 from Monster Bolts. The Ultrawedge®+ is our premium wedge anchor line, engineered for superior performance in cracked and uncracked concrete. With ICC-ES ESR-3981 certification and Miami-Dade County NOA-24-0102.12 approval, these anchors provide unmatched code-listed reliability for permanent structural and industrial applications.
Built from 1035 cold rolled steel and finished with CR+3 zinc plating, Ultrawedge®+ anchors deliver corrosion resistance, RoHS compliance, and a longer service life. They feature a bull nose head to protect threads during installation, extended threading for versatile embedment depths, and stamped heads for fast, professional verification. For critical jobs, Ultrawedge®+ sets the gold standard.
Monster Features:
- Premium Certification: ICC-ES ESR-3981 approved and Miami-Dade NOA-24-0102.12 listed.
- Material: 1035 cold rolled steel with CR+3 Zinc plating (RoHS compliant).
- Performance: Qualified for both cracked and uncracked concrete applications.
- Design: Extended thread length and bull nose head for protection and versatility.
- Identification: Head-stamped for quick anchor verification after installation.
Monster Benefits:
- Certified for static, wind, and seismic load conditions.
- Permanent anchoring solution with superior reliability.
- CR+3 finish ensures corrosion resistance and RoHS compliance.
- Outperforms standard commercial wedge anchors in load performance.
Monster Specifications:
| Diameter / Thread | 3/8"-16 |
| Material | 1035 Cold Rolled Steel |
| Finish | Zinc CR+3 (RoHS Compliant) |
| Head Design | Bull Nose, Hex Nut & Washer |
| Expansion | 360° Collet Expansion |
| Certifications | ICC-ES ESR-3981, Miami-Dade NOA-24-0102.12 |
Quick Install Guide:
- Drill hole to required diameter and depth (minimum 1/2" deeper than anchor length).
- Clean hole thoroughly to remove dust and debris.
- Insert anchor through fixture and hammer into concrete.
- Tighten nut with wrench to expand wedge clip and lock anchor securely.
Typical Applications:
- Structural steel frameworks
- Machinery and equipment baseplates
- Guardrails and safety barriers
- Critical seismic and wind load installations
Order Yours Today!
Choose 3/8"-16 Ultrawedge®+ Wedge Anchors – Zinc CR+3 for certified, high-performance concrete fastening. With ICC-ES and Miami-Dade approvals, Ultrawedge®+ is the trusted choice for demanding projects. Order in bulk from Monster Bolts today!
