Description
Monster Overview:

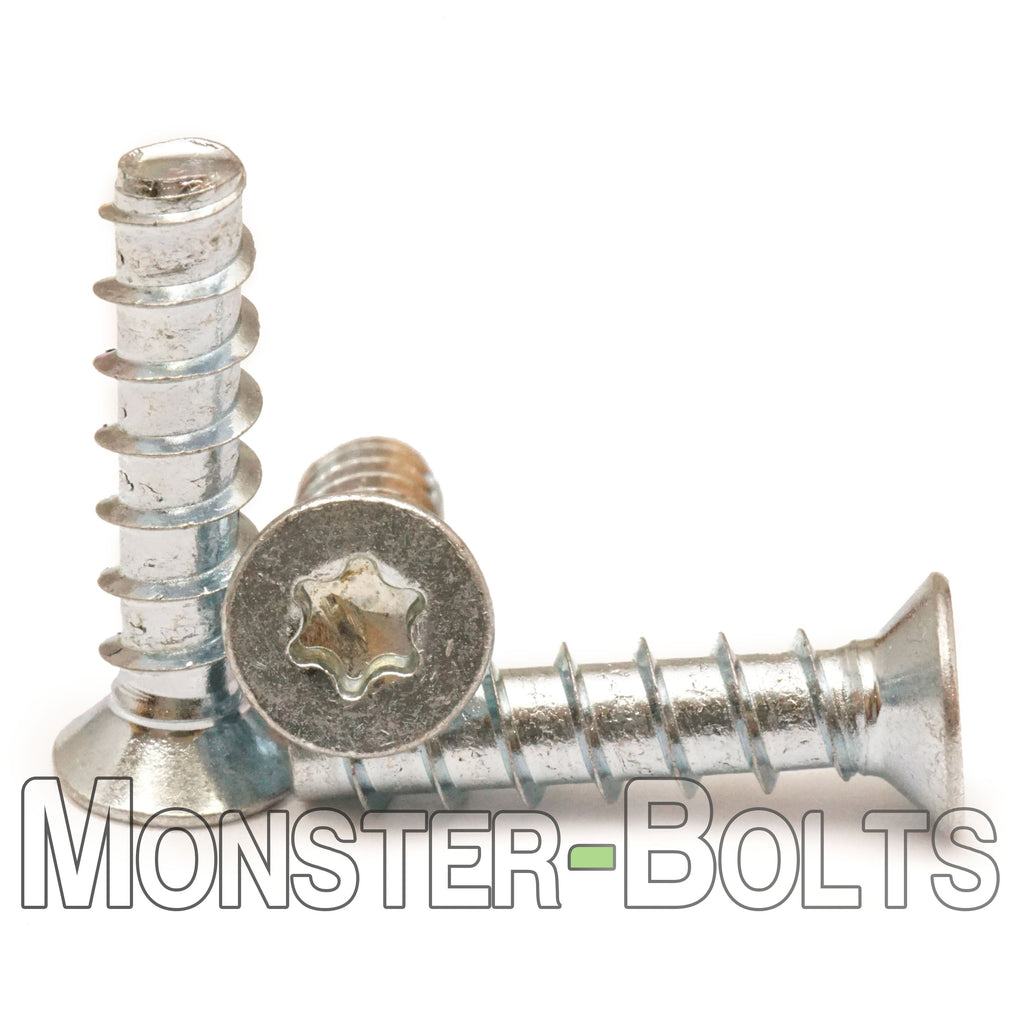

Designed for thermoplastic applications, these
#4-20 6-Lobe (Torx) Flat Head PT 48-2 Thread-Forming Screws use a
Plastite-alternative tri-lobular flank to cold-flow plastic and create
chip-free internal threads—no tapping, no debris.
Each heat-treated carbon-steel screw is bright-zinc electro-plated
and baked to eliminate hydrogen embrittlement, then factory
wax-lubed for reliably low seating torque. Bulk master
cartons keep your per-unit cost razor-low.
Monster Features:
- Flush 82° Flat Head: Leaves a smooth surface on thin plastic lids, bezels, and access covers.
- Plastite-Alternative Geometry: PT 48-2 tri-lobular threads maximise pull-out resistance in ABS, nylon, PC & more.
- Drive: Torx® T10 6-lobe recess—high torque with virtually zero cam-out.
- Material & Finish: Heat-treated carbon steel, bright-zinc plated, baked, then dry wax for repeatable clamp load.
- Bulk Packaging: Supplied in sealed master cartons—ideal for appliance, consumer-electronics & medical lines.
Monster Specifications:
- Diameter: #4 (0.112 in.)
- Thread: PT 48-2 tri-lobular (functional ≈ 20 TPI)
- Lengths: Fully threaded — standard production lengths available (select above)
- Head Style: Flat Countersunk 82° (undercut not required at this diameter)
- Drive Style: Torx T10 (6-Lobe)
- Material: Carbon Steel
- Finish: Bright Zinc – baked + factory wax
- Cross-Reference: Plastite® 48-2 / EJOT PT (non-OEM)
More Monster Bolts:
• Need bulk
Taptite-style thread-rolling screws?
• Looking for
Type 1, 23, 25 & F thread-cutting screws?
Explore our full inch-series lineup.
Order Yours Today and Experience the Monster Bolts Difference!
Buy with confidence—every bulk carton ships fast from our U.S. warehouse and is backed by Monster Bolts’ quality guarantee and responsive support.
