Bulk 5/8" Tapking HD Concrete Screw Anchors – Zinc CR+3 – Monster Bolts


Length: 25 Qty - 5/8" x 4"
Price:
Sale price$112.10

Description

MonsterBolts Bulk Tapking HD Concrete Anchors 5/8 inch Zinc CR+3

Monster Overview:

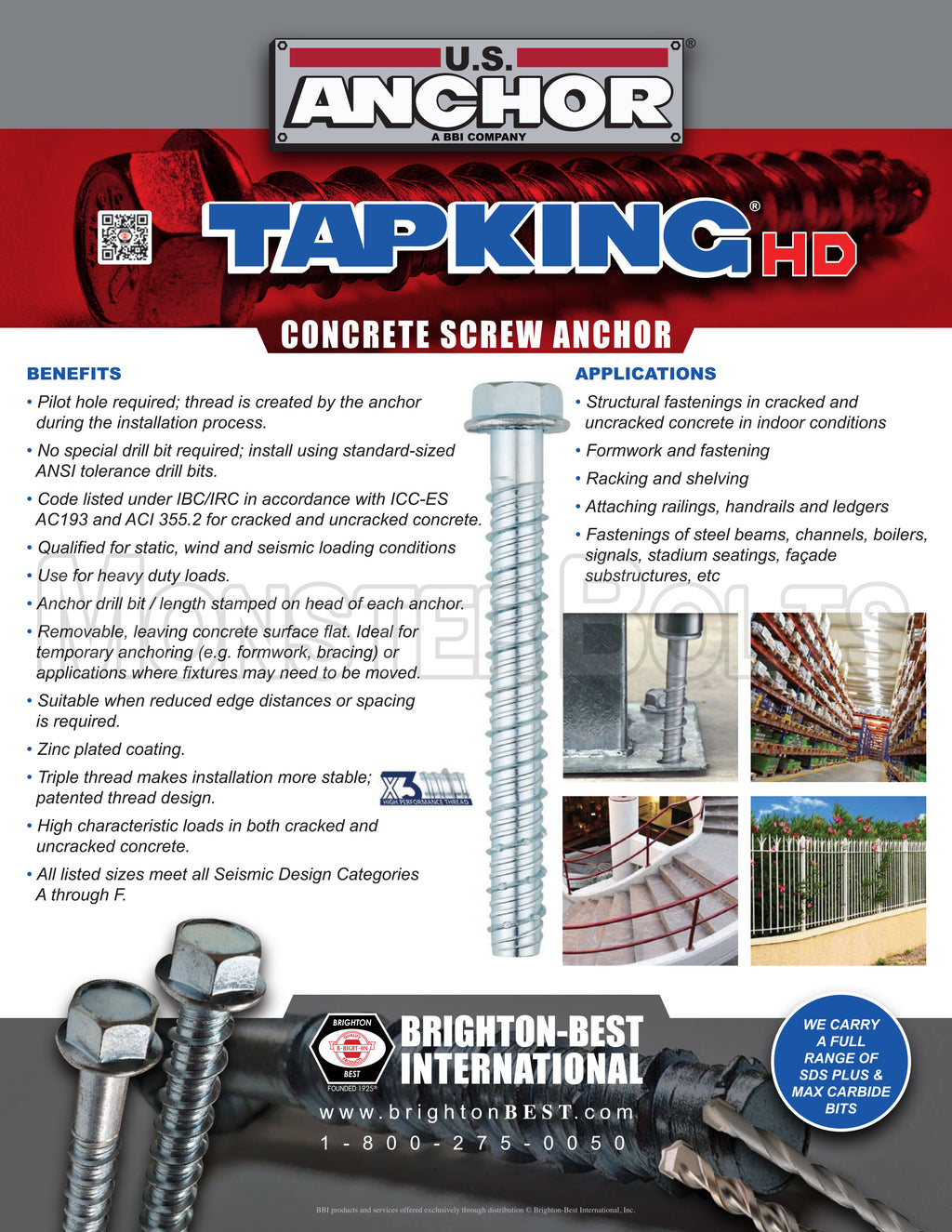

Fix your project right the first time with 5/8" Tapking HD Concrete Screw Anchors – Zinc CR+3 from Monster Bolts. These anchors are purpose-built for demanding applications such as heavy racks, conveyors, machinery baseplates, and industrial equipment. Featuring a permanent hex washer head for a finished appearance, they are reusable and designed for both cracked and uncracked concrete conditions.

With a CR+3 zinc plating, these anchors deliver dependable corrosion resistance while meeting today’s environmental standards as RoHS compliant. Fully code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2, and approved under ICC-ES ESR #4557 with Miami-Dade County approval pending, these anchors provide certified strength and peace of mind for professional contractors.

Monster Features:

  • Material: High-strength steel with CR+3 Zinc plating (RoHS compliant).
  • Thread Design: Patented 3D Triple Thread for smoother installation and maximum load performance.
  • Hex Washer Head: Permanent profile offers a flush, professional appearance.
  • Reusable: Anchor can be backed out and reinstalled; leaves the concrete surface flat.
  • Compliance: ICC-ES ESR #4557, Code listed under IBC/IRC (AC193 / ACI 355.2), Miami-Dade pending.

Monster Benefits:

  • Pilot hole required; anchor threads formed during installation.
  • Installs using a standard ANSI masonry bit—no special drill required.
  • Anchor head stamped with drill size and length for quick reference.
  • Removable without surface damage; concrete remains reusable.
  • Qualified for static, wind, and seismic loading conditions.

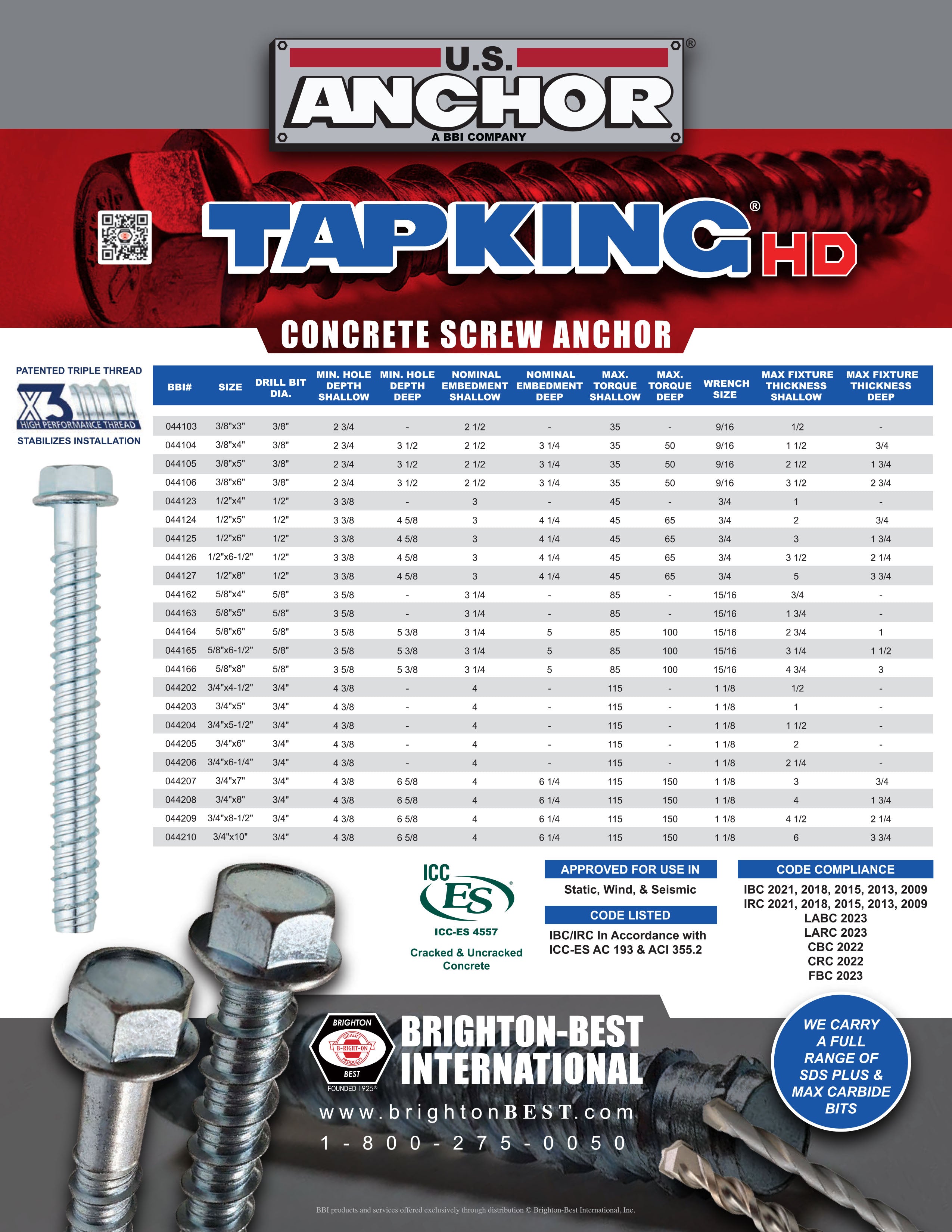

Monster Specifications:

Diameter 5/8"
Material Steel with CR+3 Zinc Plating (RoHS)
Head Style Hex Washer Head
Thread Design 3D Triple Thread
Compliance ICC-ES ESR #4557, IBC/IRC Code Listed, AC193/ACI 355.2, Miami-Dade Pending
Note: For best performance, drill a pilot hole to the proper embedment depth and clear dust before installation. Always follow ICC-ES evaluation and engineering requirements for spacing and edge distances.

Quick Install Guide:

  1. Mark anchor locations and verify spacing/edge distances per design requirements.
  2. Drill pilot hole using the ANSI masonry bit size stamped on the anchor head.
  3. Clean hole thoroughly (blow/brush) to remove dust.
  4. Drive the anchor with a wrench or socket until the hex washer seats flush.
  5. To remove, back out the screw; the surface remains flat for reuse or relocation.

Typical Applications:

  • Industrial racks & conveyors
  • Heavy machinery baseplates & equipment skids
  • Loading dock bumpers & guard equipment
  • Temporary formwork & bracing (ideal for relocations)

Order Yours Today!

Rely on certified performance with 5/8" Tapking HD Concrete Screw Anchors – Zinc CR+3. Strong, code-approved, and designed for professional contractors. Buy in bulk from Monster Bolts today!
