Monster Overview:

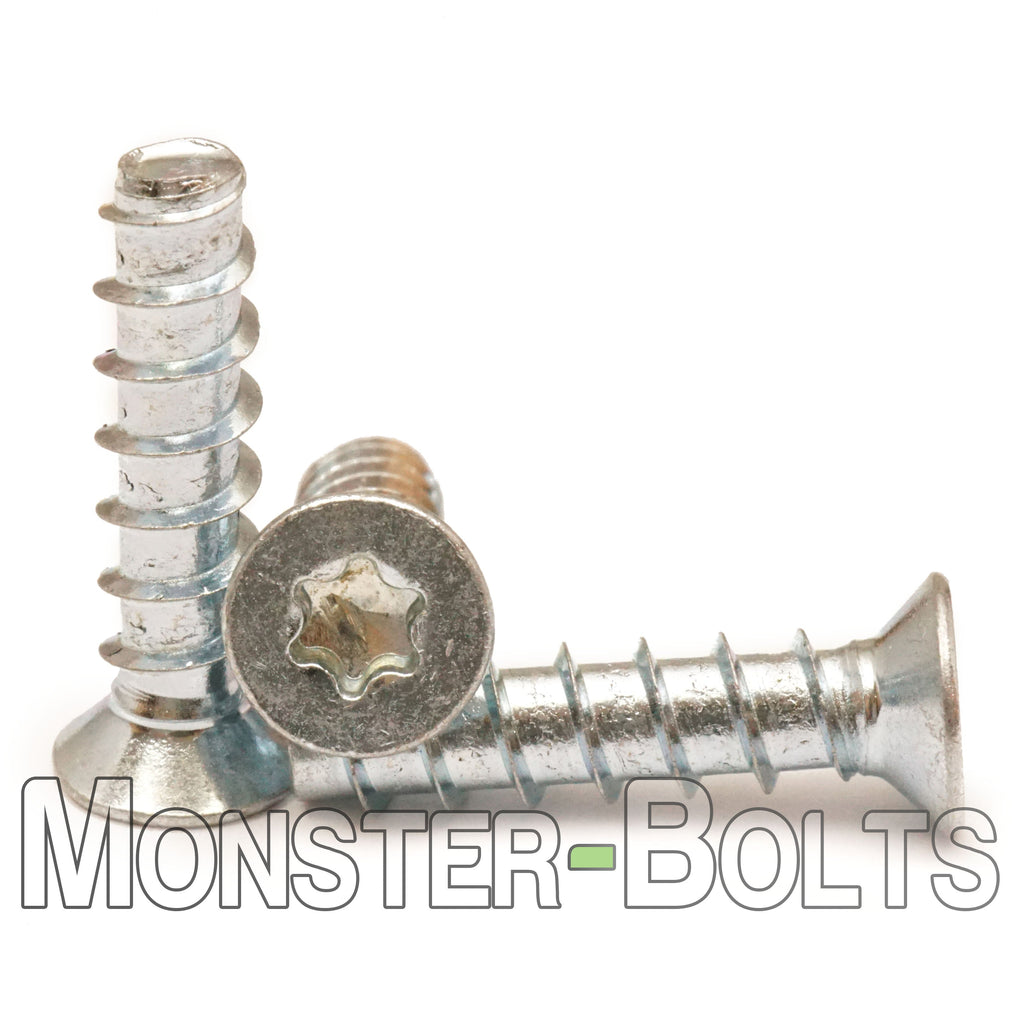

Countersink plastic housings with bulk #8-16 6-Lobe (Torx) Flat Head PT 48-2 Thread-Forming Screws from Monster Bolts.
The tri-lobular Plastite® geometry plastically flows thermoplastic, forming chip-free internal threads—no pre-tapping, no cleanup.
Each heat-treated carbon-steel screw is bright-zinc electro-plated then baked to remove hydrogen embrittlement, followed by a factory wax coat for ultra-low seating torque. Master cartons drive per-unit cost down for high-volume assembly.
Monster Features:
- Flush 82° Flat Head: Leaves a smooth surface on covers and access panels.
- Thread-Forming Geometry: PT 48-2 flank maximises pull-out resistance in ABS, nylon, PC & more.
- Drive: Torx® T20 6-lobe recess—high torque, virtually zero cam-out.
- Material & Finish: Heat-treated carbon steel, bright-zinc plated, baked, then dry wax for repeatable clamp load.
- Bulk Packaging: Supplied in sealed master cartons—ideal for appliance, enclosure & industrial lines.
Monster Specifications:
- Diameter: #8 (0.164 in.)
- Thread: PT 48-2 tri-lobular (functional ≈ 16 TPI)
- Lengths: Fully threaded — standard production lengths available (select above)
- Head Style: Flat Countersunk 82°
- Drive Style: Torx T20 (6-Lobe)
- Material: Carbon Steel
- Finish: Bright Zinc – baked + factory wax
- Cross-Reference: Plastite® 48-2 / EJOT PT (non-OEM)
