Description
Monster Overview:

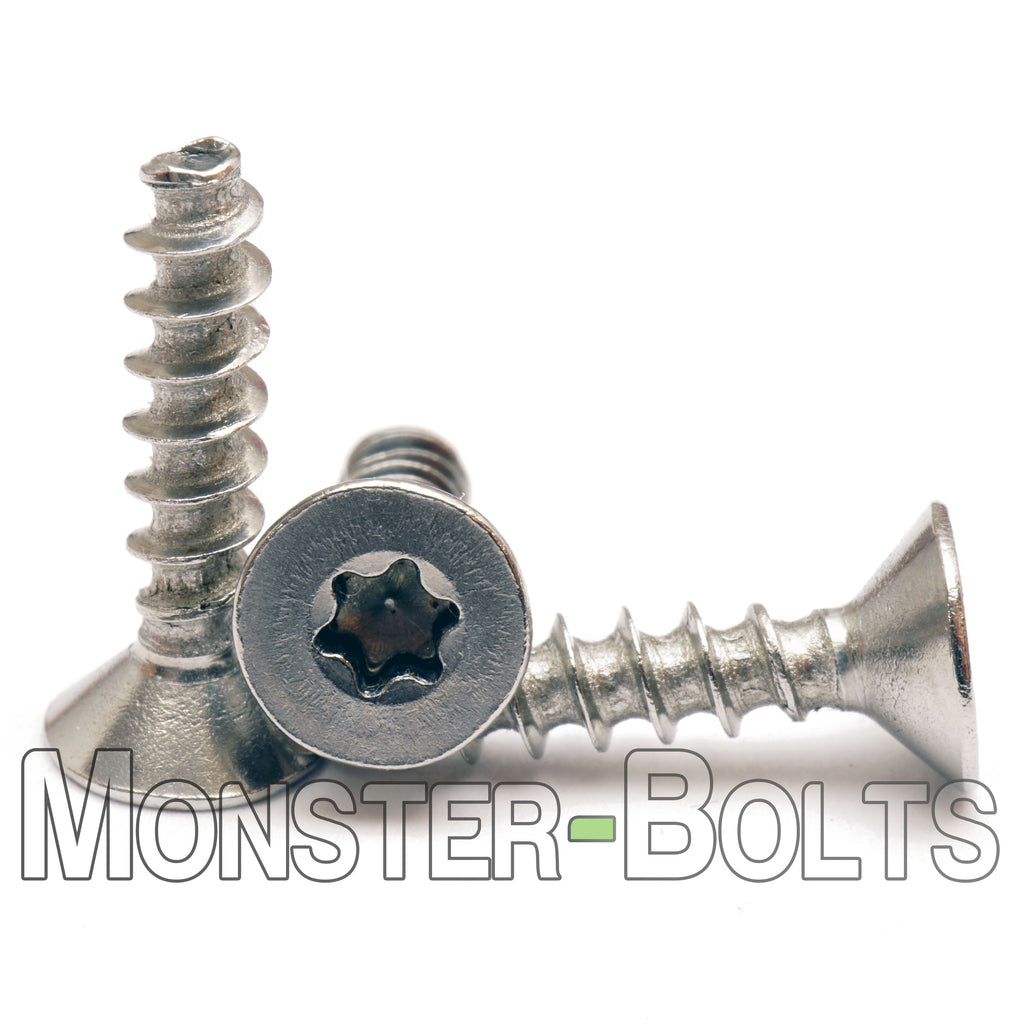

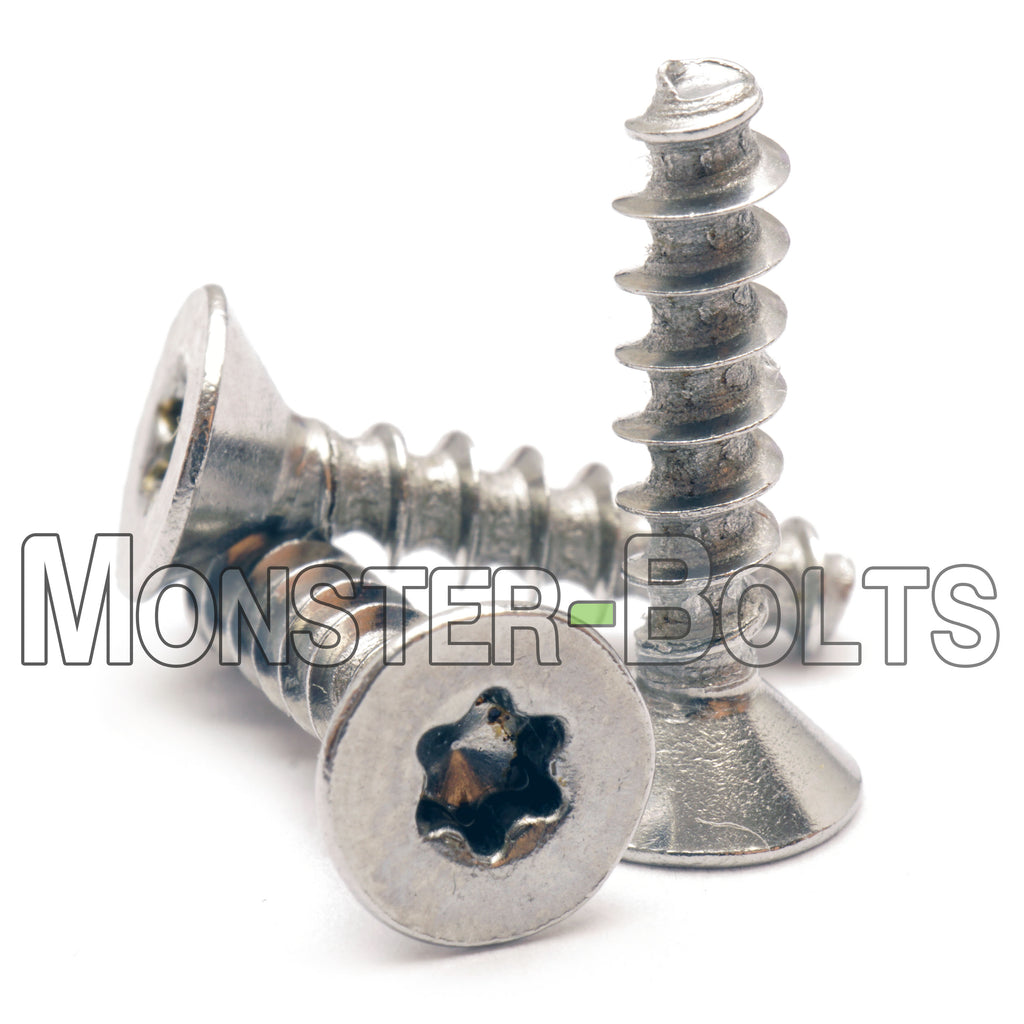

Secure miniature plastic panels with M2.5-1.4 Torx®/6-Lobe Flat Head 45° Plastite® / Plas-Fix Thread-Rolling • Thread-Forming Screws from Monster Bolts. The 45° trilobular profile cold-flows thermoplastic bosses, creating chip-free, vibration-resistant threads, while the 82° countersunk flat head seats perfectly flush. A factory wax top-coat on bright zinc-bake plating slashes seating torque and wards off corrosion.
Monster Features
- 45° Thread-Rolling Design: Plastite/Plas-Fix geometry, 1.4 mm pitch, high pull-out strength.
- Flush-Mount Head: 82° countersunk flat head keeps enclosures snag-free.
- Low Seating Torque: Wax lubrication + trilobular lobes reduce drive effort and boss stress.
- Drive: Internal Torx® (6-lobe star) T8—confident torque transfer, zero cam-out.
- Finish: Zinc plated, baked & wax-lubricated—bright, RoHS-compliant protection.
- Material: High-strength carbon steel • fully threaded shank.
Monster Specifications
| Feature | Details |
|---|---|
| Diameter / Pitch | M2.5 × 1.4 mm (Plastite 45°) |
| Available Lengths | Fully threaded — select length above |
| Head / Drive | Flat (82°) / T8 Torx® (6-lobe) |
| Thread Form | 45° trilobular thread-rolling / thread-forming |
| Material | Carbon Steel |
| Finish | Zinc Bake & Wax (RoHS) |
| System of Measurement | Metric |
| Standards / Reference | Plastite® 45 design guidelines (Ref.) |
More Monster Bolts
Need pan heads, stainless versions, or other sizes? Explore the entire Metric Plastite-Style Screw range.
Order Yours Today and Experience the Monster Bolts Difference!
Buy with confidence—every master carton ships fast from the USA and is backed by our commitment to quality, responsive support, and industrial-grade savings.
