Description
Monster Overview:
Fix your project right the first time with M2-0.89 Pan-Head 6-Lobe PT Alternative Thread-Rolling Screws in A2 / 18-8 stainless steel from Monster Bolts. Their 30° trilobular profile cold-flows thermoplastic bosses to create chip-free, vibration-resistant threads, while the corrosion-proof stainless construction is perfect for outdoor, medical, and miniature electronics applications.
Monster Features
- Pan Head: Low-profile head distributes load and sits nearly flush for a clean appearance.
- 6-Lobe Drive: Star / Torx® / hexalobular recess (T6) supplies high torque with minimal cam-out.
- 30° PT Trilobular Thread: 0.89 mm pitch forms strong internal threads at low drive torque.
- A2 Stainless Steel: Rust-proof 18-8 alloy resists moisture, mild chemicals, and outdoor exposure.
- Passivated & Wax-Lubricated: Clean, bright finish plus factory wax for smooth installation (RoHS compliant).
- Full Thread: Fully threaded shank grips plastics of any thickness.

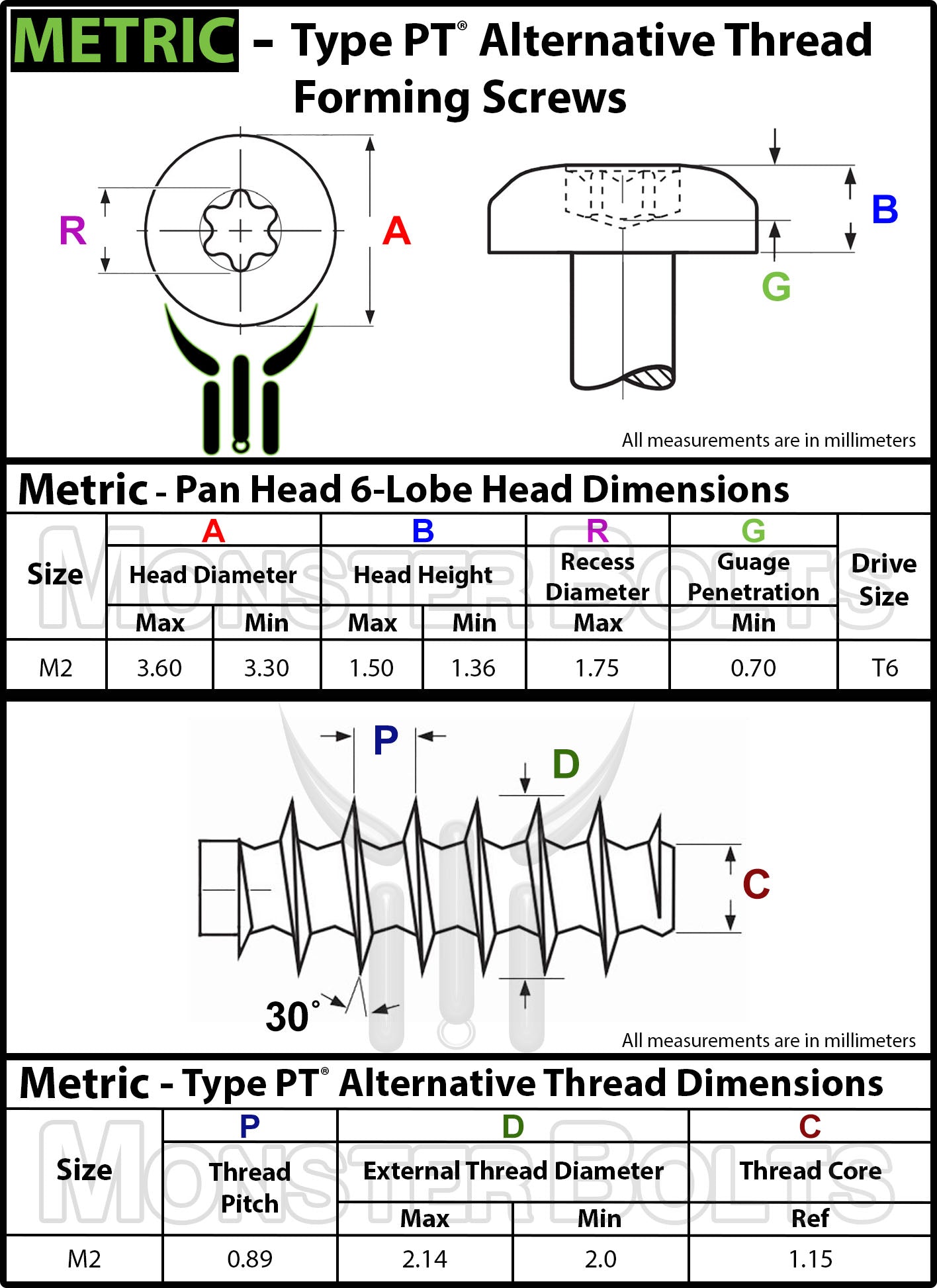

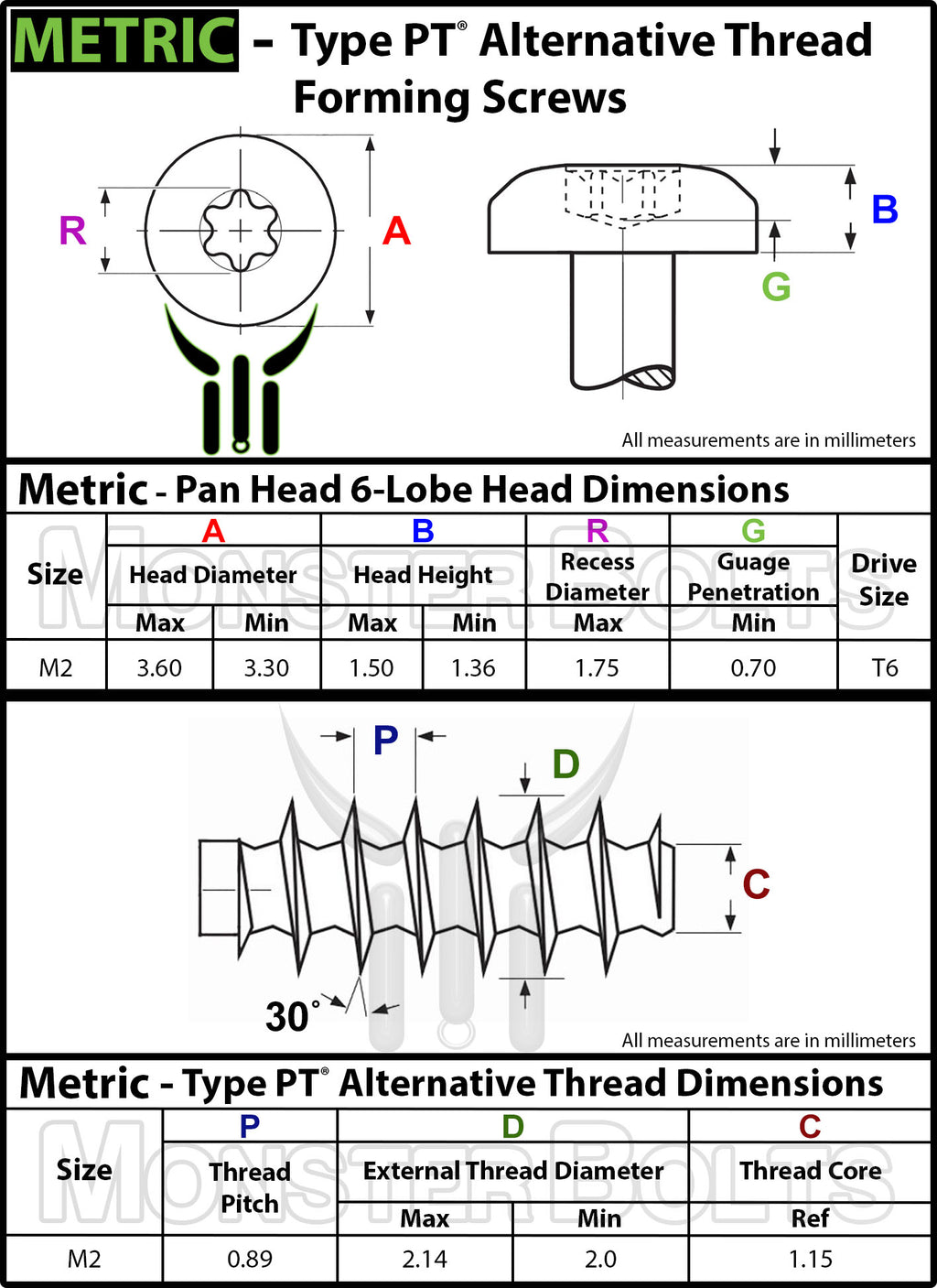

Monster Specifications
| Feature | Details |
|---|---|
| Diameter / Pitch | M2 × 0.89 mm (PT trilobular, 30°) |
| Available Lengths | 4 mm – 12 mm (fully threaded) |
| Head / Drive | Pan Head / T6 6-Lobe |
| Thread Form | PT Alternative, 30° trilobular thread-rolling |
| Material | A2 / 18-8 Stainless Steel |
| Finish | Passivated & Wax-Lubricated (RoHS) |
| System of Measurement | Metric |
| Standards / Reference | Plastite® / PT 30° design guidelines (Ref.) |
More Monster Bolts
Need round-washer heads or carbon-steel options? Explore our complete Metric PT-Style Screw collection .
