Description
Monster Overview:

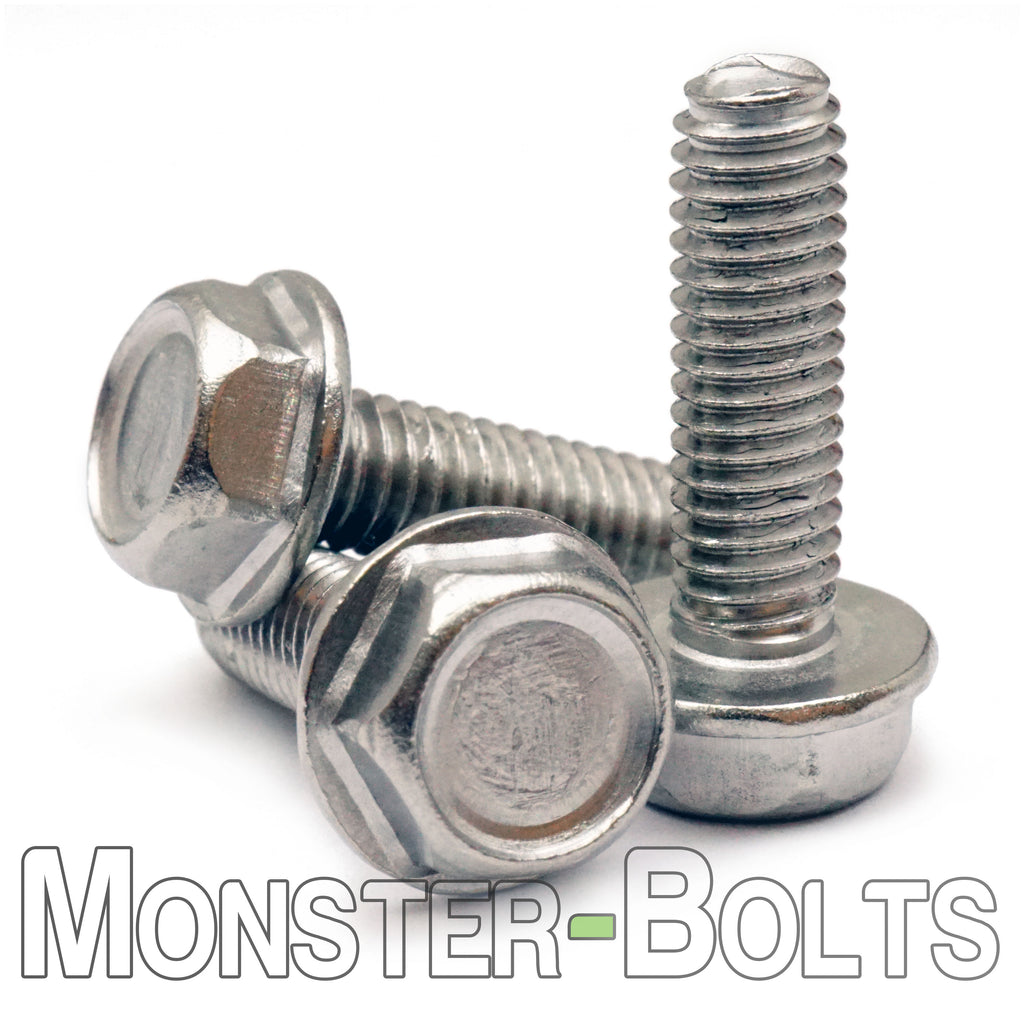

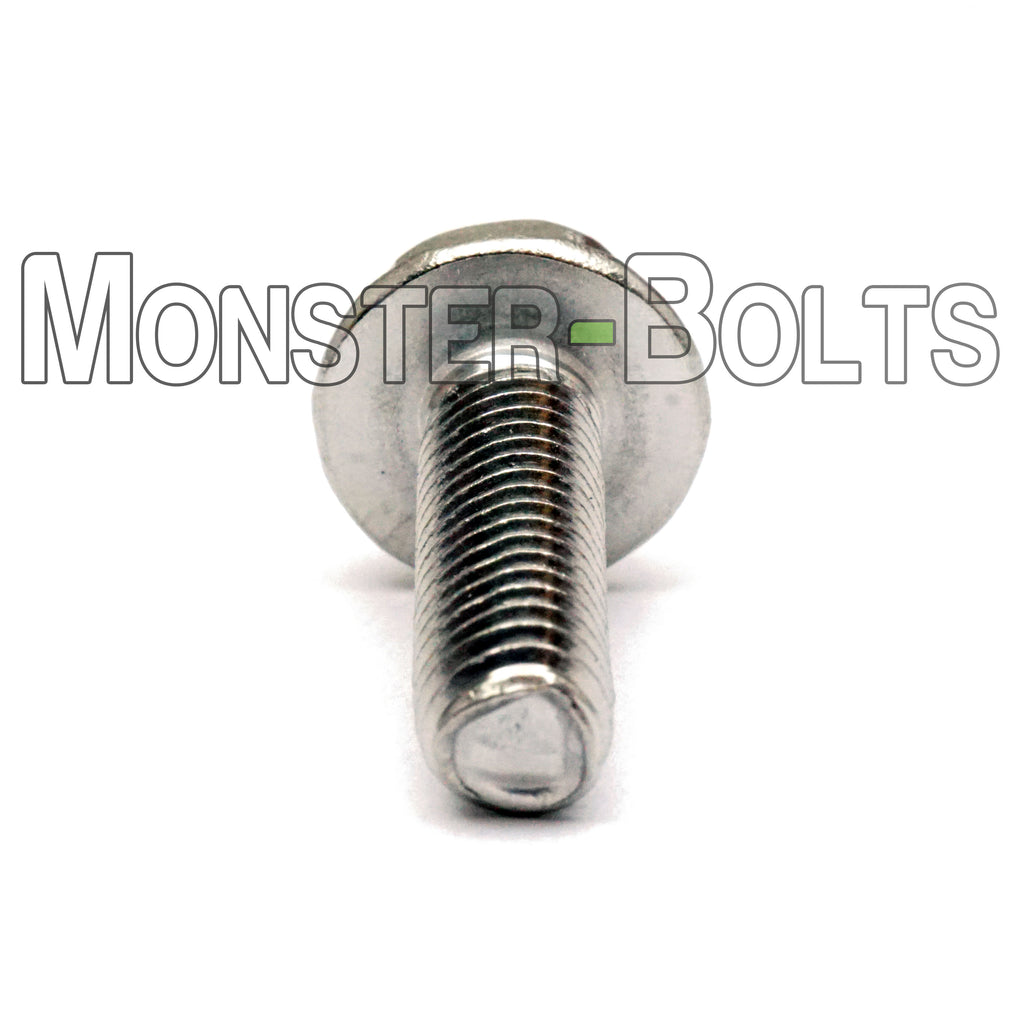

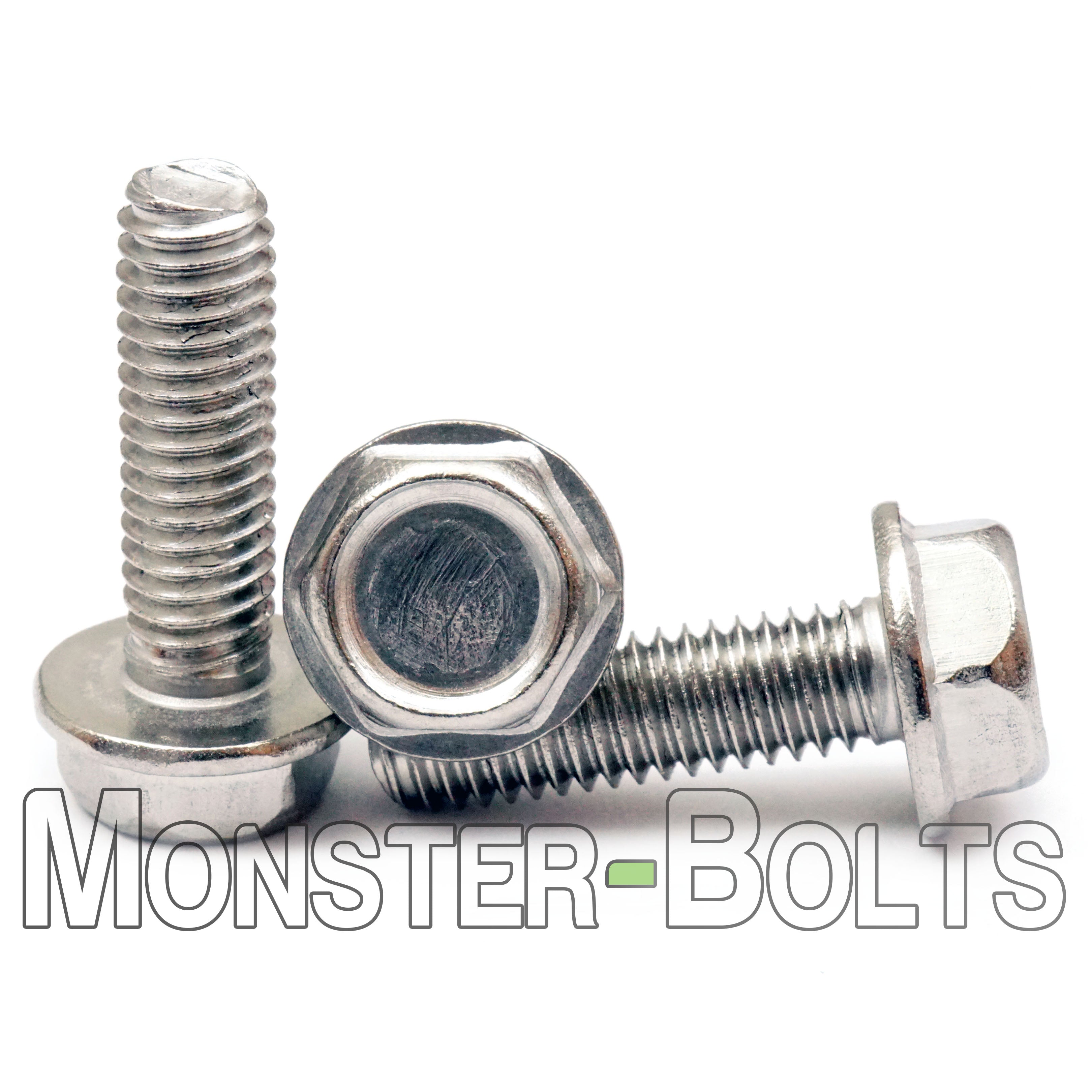

Slash cycle time and scrap cost with M4-0.7 Hex-Washer-Head DIN 7500D Thread-Forming Screws in A2 / 18-8 stainless steel. The lobular DIN 7500 groove cold-forms 6g ISO-metric threads in aluminum, mild steel, and other ductile metals—no chips, tapping, or thread-locker required.
Monster Features
- Hex-Washer Head: External 7 mm A/F hex with integral flange spreads load and lets you hit high seating torque with a socket or nut-runner.
- DIN 7500D Lobular Thread: Rolls material rather than cutting, yielding higher strip-out and vibration resistance.
- Full Thread: Continuous engagement for any sheet or extrusion thickness.
- A2 Stainless Steel: Permanent corrosion resistance—no plating to crack or flake.
- Passivated & Wax-Lubricated: Bright finish + factory wax for smooth drive-in and controlled torque (RoHS compliant).
- Bulk Master Cartons: OEM-ready quantities at industrial-grade pricing.
Monster Specifications
| Feature | Details |
|---|---|
| Diameter / Pitch | M4 × 0.7 mm |
| Available Lengths | 6 mm – 20 mm (fully threaded) |
| Head / Drive | Hex-Washer (7 mm A/F) |
| Standard | DIN 7500D |
| Material | A2 / 18-8 Stainless Steel |
| Finish | Passivated & Wax-Lubricated (RoHS) |
| System of Measurement | Metric |
Applications
Perfect for aluminum extrusion frames, kiosks, HVAC housings, solar brackets, and any sheet-metal assembly where tapping is too slow or costly.
Order Yours Today and Experience the Monster Bolts Difference!
Buy with confidence—every bulk carton ships fast from the USA and is backed by our commitment to quality, responsive support, and industrial-grade savings.
