Monster Overview:

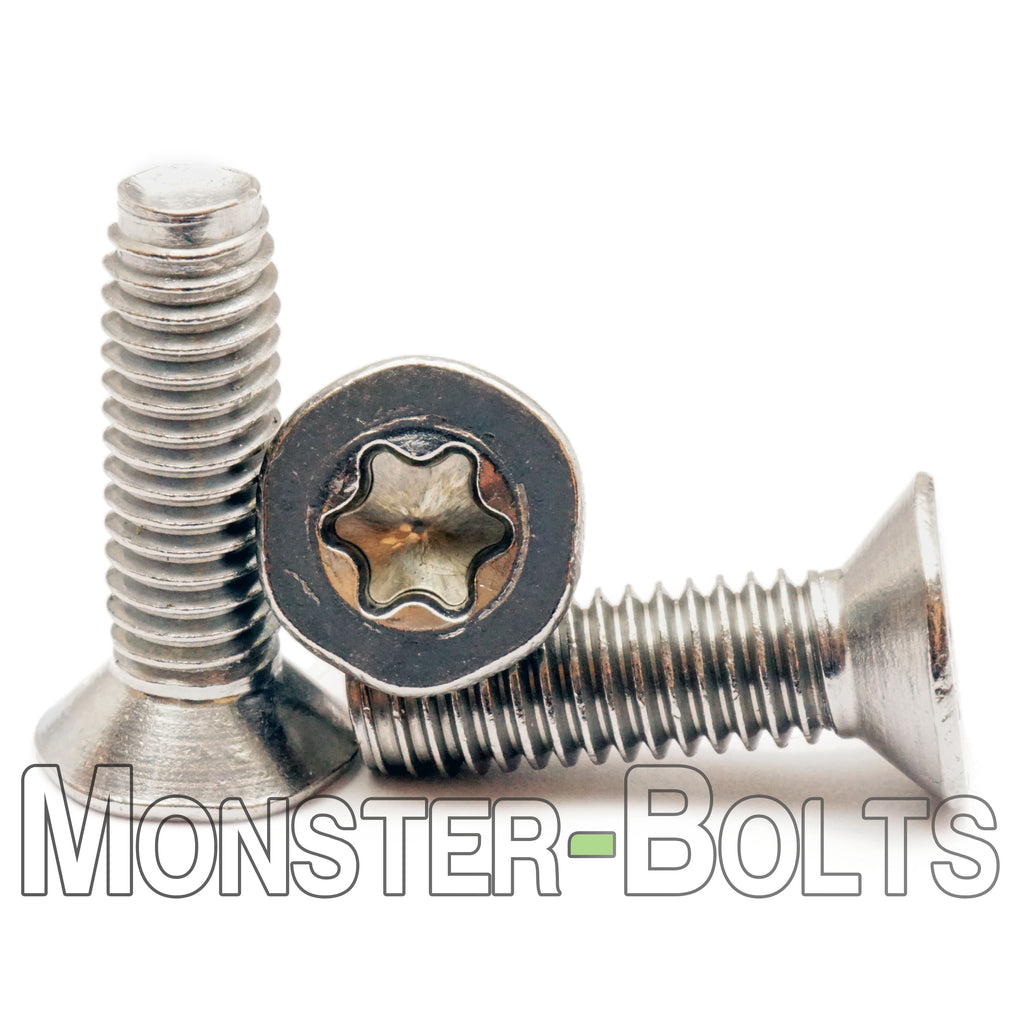

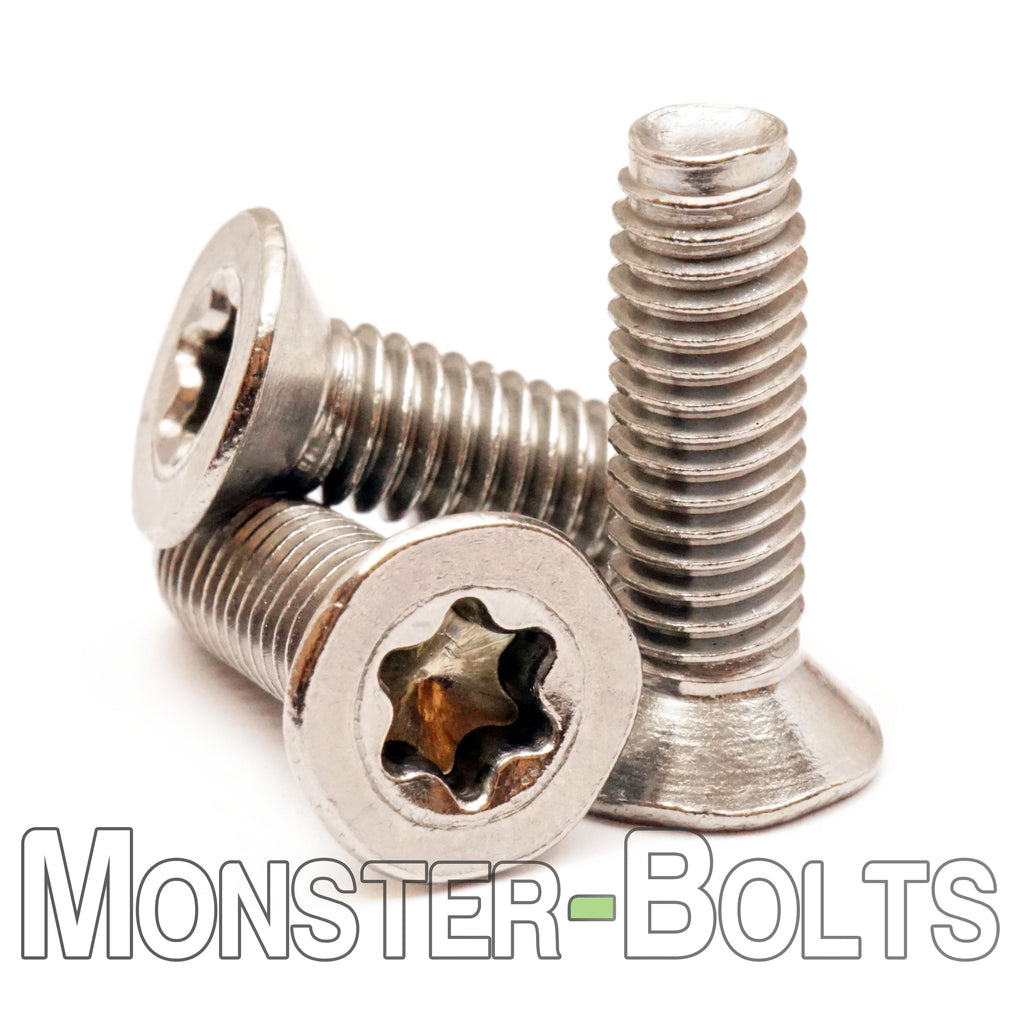

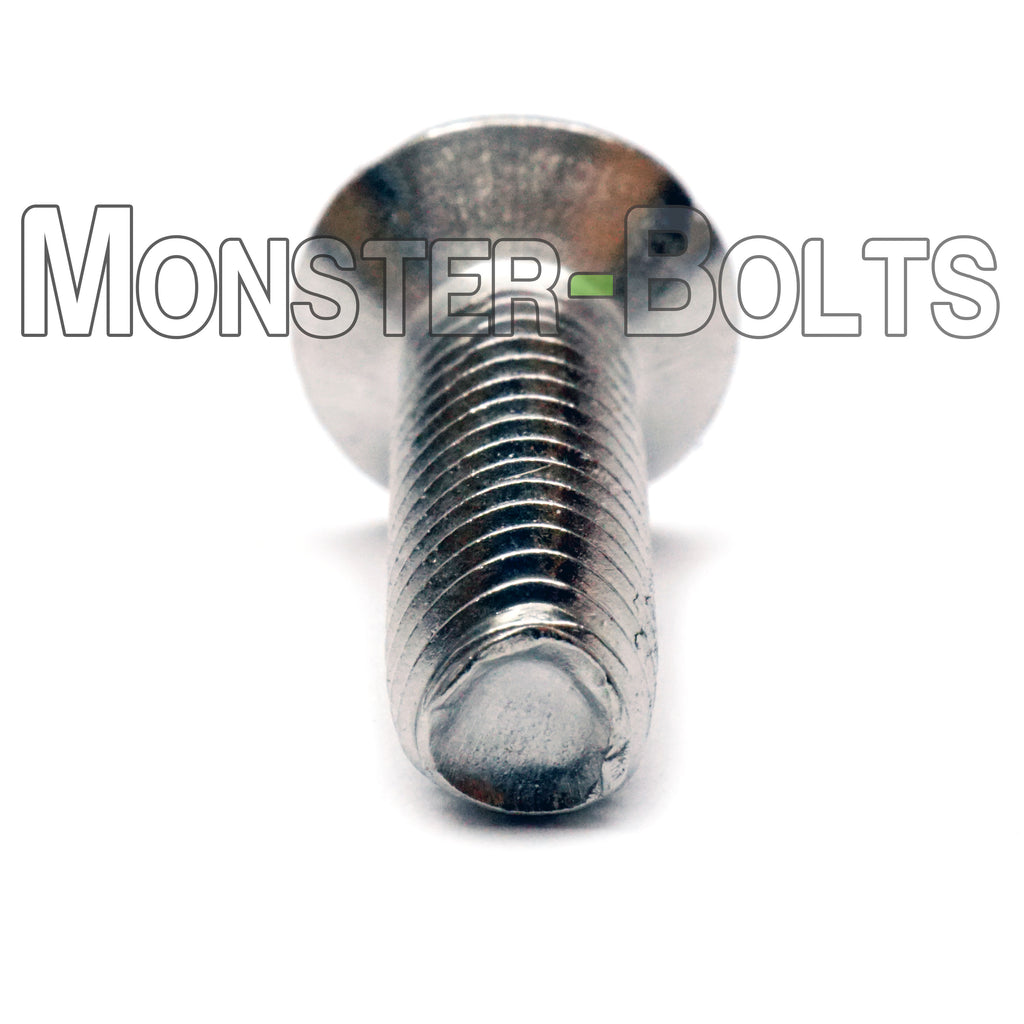

Eliminate tapping and speed your line with M6-1.0 DIN 7500ME Flat-Head 6-Lobe Thread-Forming Screws in A2 / 18-8 stainless steel. The ME profile combines a 90° countersunk head for flush seating with a lobular roll-forming thread that cold-flows 6g ISO-metric threads in aluminum, mild steel, brass and more— no chips, no thread-locker, fully serviceable.
Monster Features
- Countersunk Flat Head 90°: Sits dead-flush for trim, hinges and panels.
- 6-Lobe / Torx® Drive: Star recess T30 hits high torque with zero cam-out.
- DIN 7500ME Lobular Thread: Self-threads by rolling metal—not cutting—for higher strip-out & vibration resistance.
- A2 Stainless Steel: Rust-proof 18-8 alloy—no plating to crack or flake.
- Passivated + Factory Wax: Bright contamination-free finish plus controlled-torque PT wax (RoHS).
- Full Thread: Continuous engagement for any sheet or extrusion thickness.
- Bulk Master Cartons: Production volumes at industrial-grade pricing.
Monster Specifications
| Feature | Details |
|---|---|
| Diameter / Pitch | M6 × 1.0 mm |
| Available Lengths | 10 mm – 30 mm (fully threaded) |
| Head / Drive | Flat Countersunk 90° / Torx T30 |
| Standard | DIN 7500ME |
| Material | A2 / 18-8 Stainless Steel |
| Finish | Passivated & Wax-Lubricated (RoHS) |
| System of Measurement | Metric |
Applications
Perfect for aluminum extrusion frames, robotic end-effectors, solar mounts, kiosks, and any metal assembly where tapping adds time and cost.
