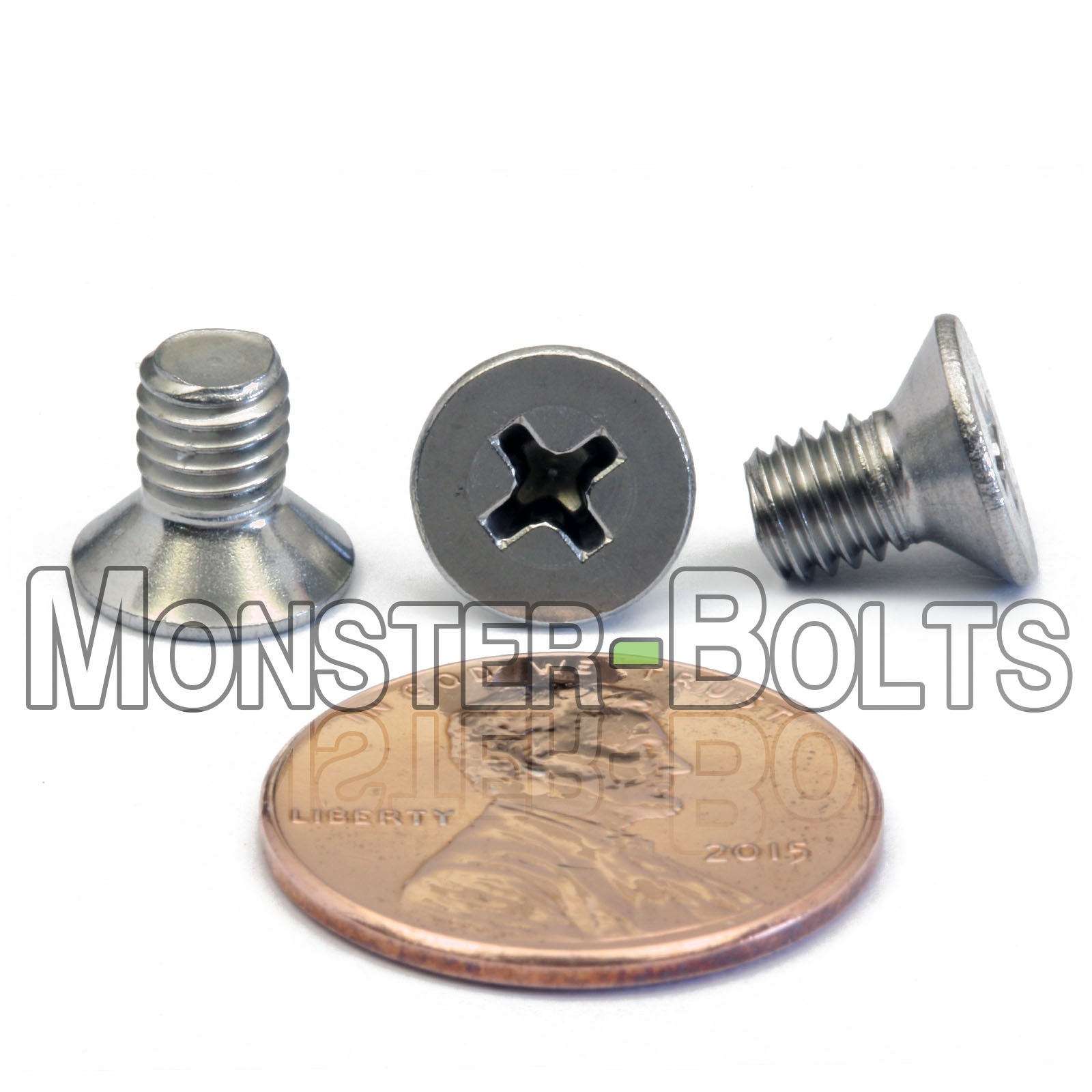

M5 Phillips Flat Head Machine screws, A2 Stainless Steel DIN 965 Coarse Thread


Length: M5 x 8mm
Package Quantity: 10
Price:
Sale price$1.31

Description

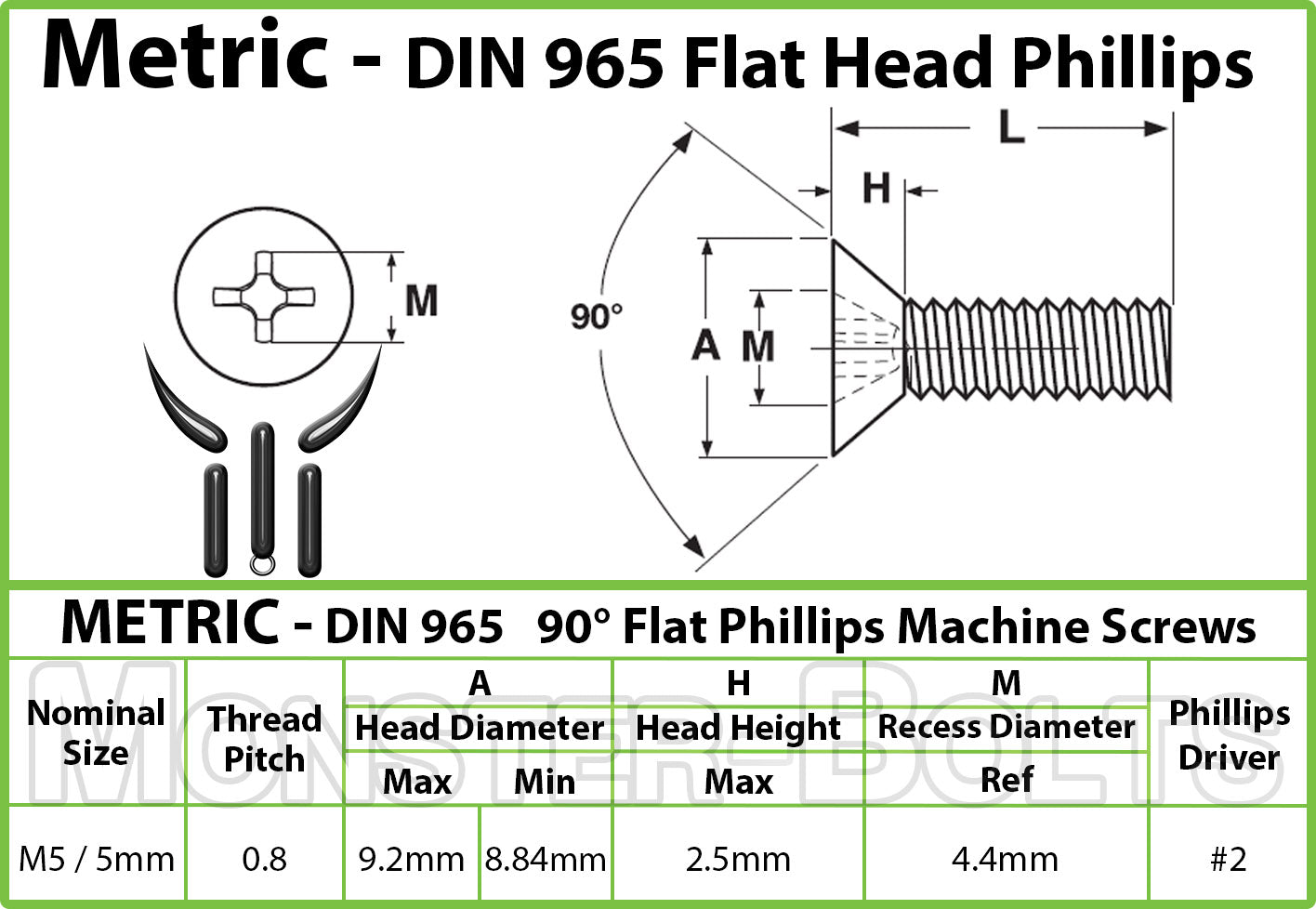

M5 Stainless Steel Phillips Flat Head machine screws.  Metric screws made from 18-8 Stainless Steel.  When installed, screws will be flush (countersunk) and as such are measured as overall length (see diagram below).
  • Diameter: M5 / 5mm
  • Thread Size: 0.80 - Coarse (Standard) Thread
  • Length: Countersunk screws measured 'overall length' See diagram ("L")
  • Drive: #2 Phillips Head
  • Type: Flat Phillips (Type H Recess)
  • Matching Nut & Washer: M5 - Available here
  • System of Measurement: Metric
  • Material: Stainless Steel A2 / 18-8
  • Specifications: DIN 965 / ISO 7046
