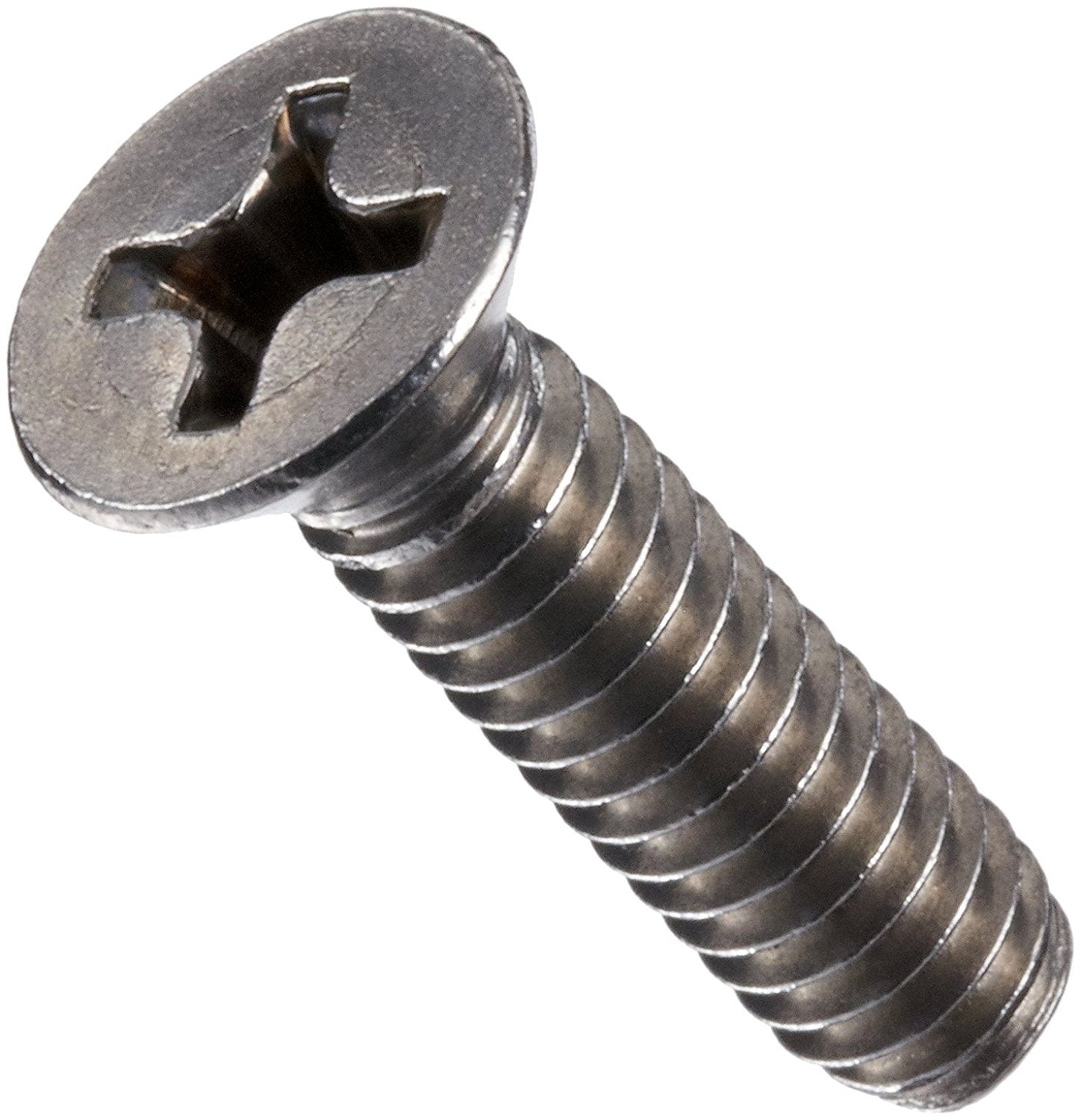

Single Stainless Steel M6 screw shown for detail. Phillips Flat head.

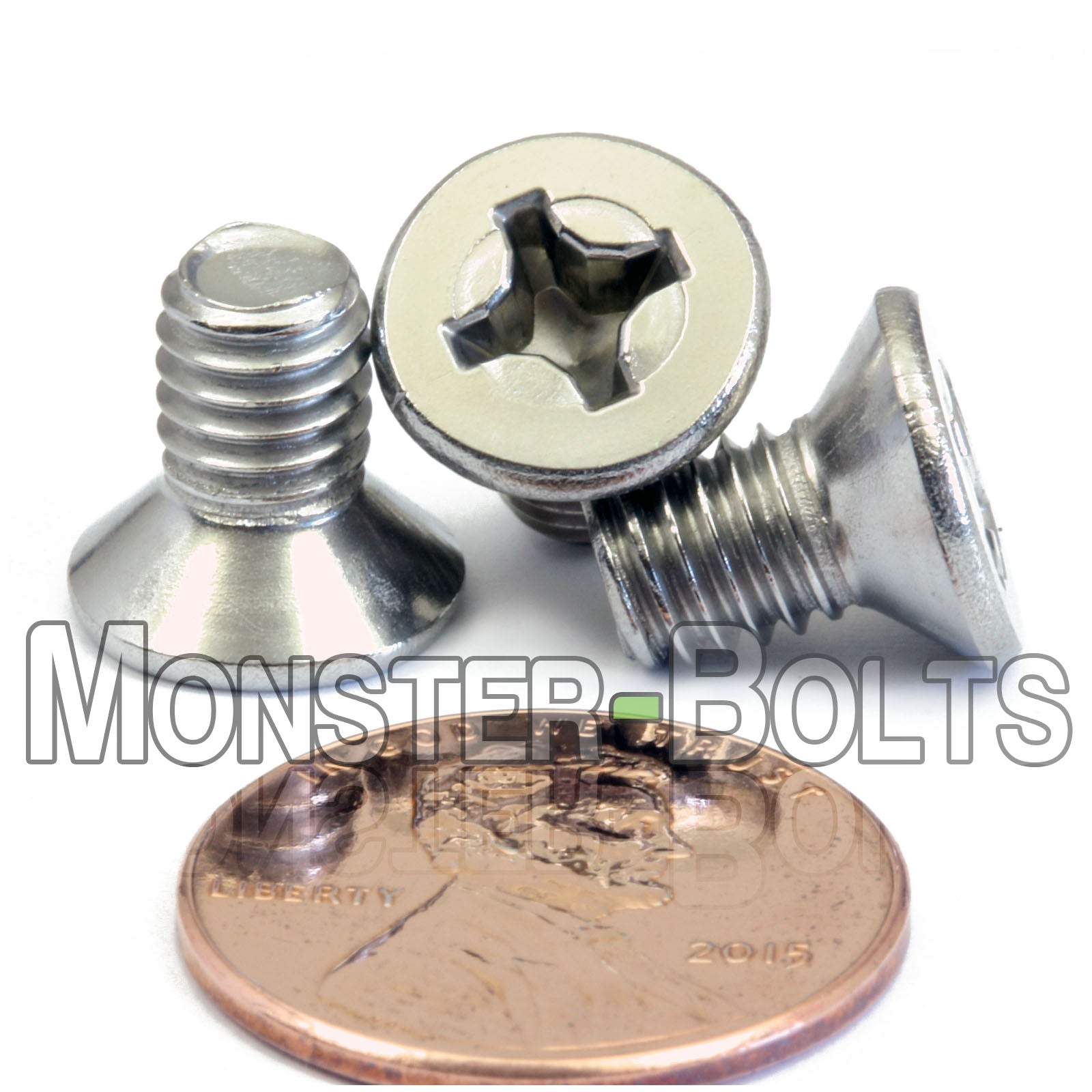

Stainless Steel M6 x 10mm Phillips Flat Head machine screws.

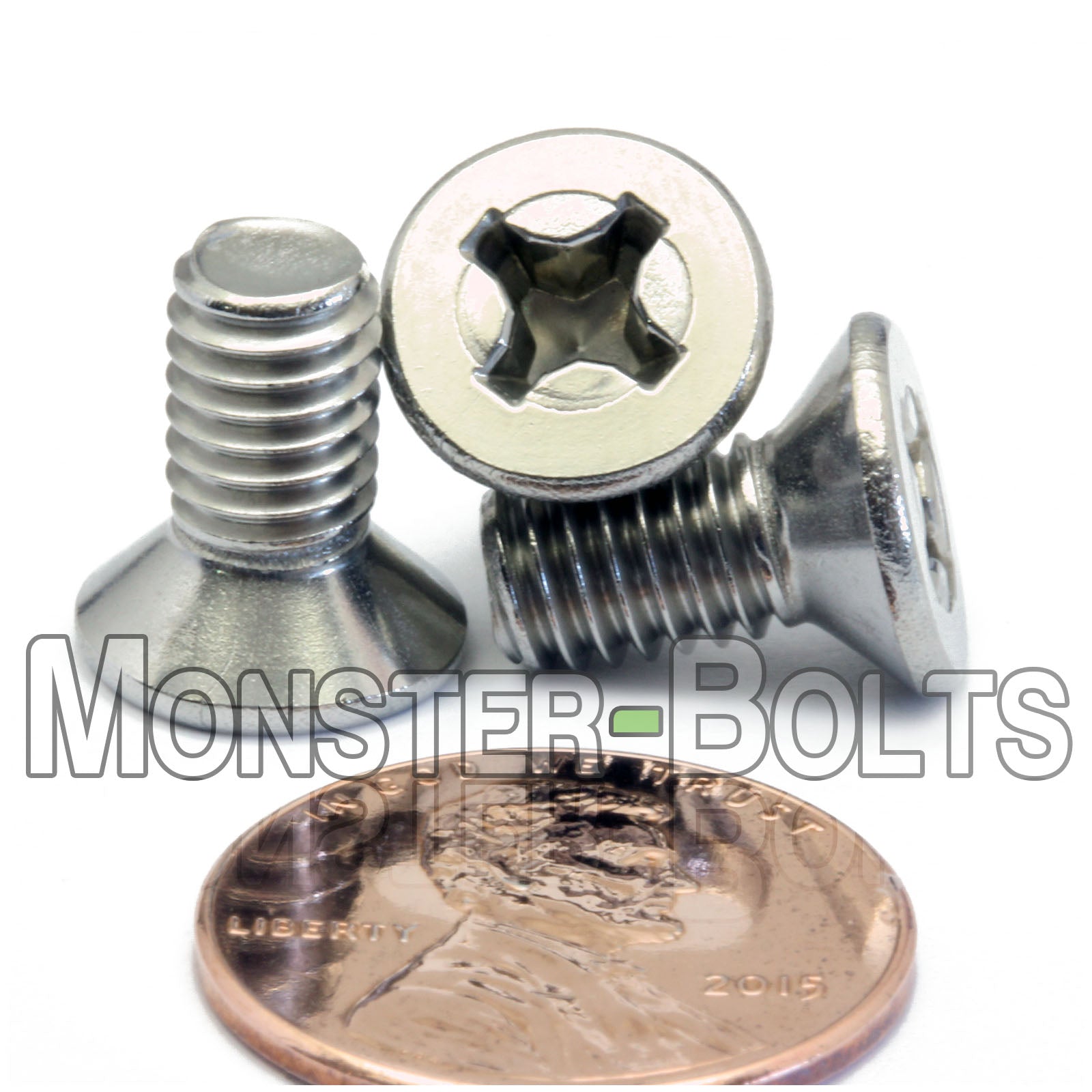

Stainless Steel M6-1.0 x 12mm Phillips Flat Head machine screws with white background

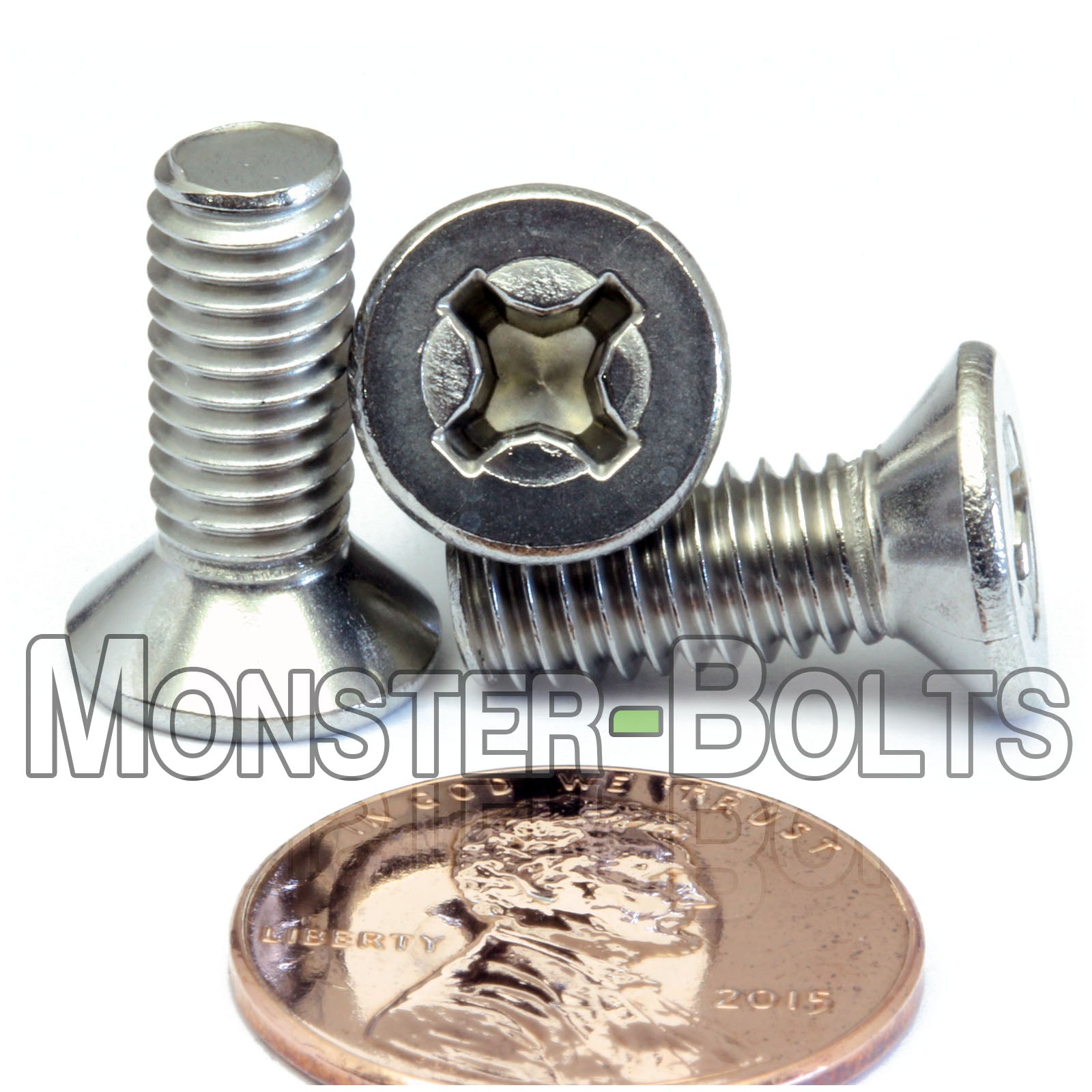

Stainless Steel M6 x 16mm Phillips Flat Head machine screws.
Roll over image to zoom in Click on image to zoom
Stainless Steel M6 Phillips flat head machine screws stacked to show different lengths.
How to measure flat head machine screws with common uses and basic information.

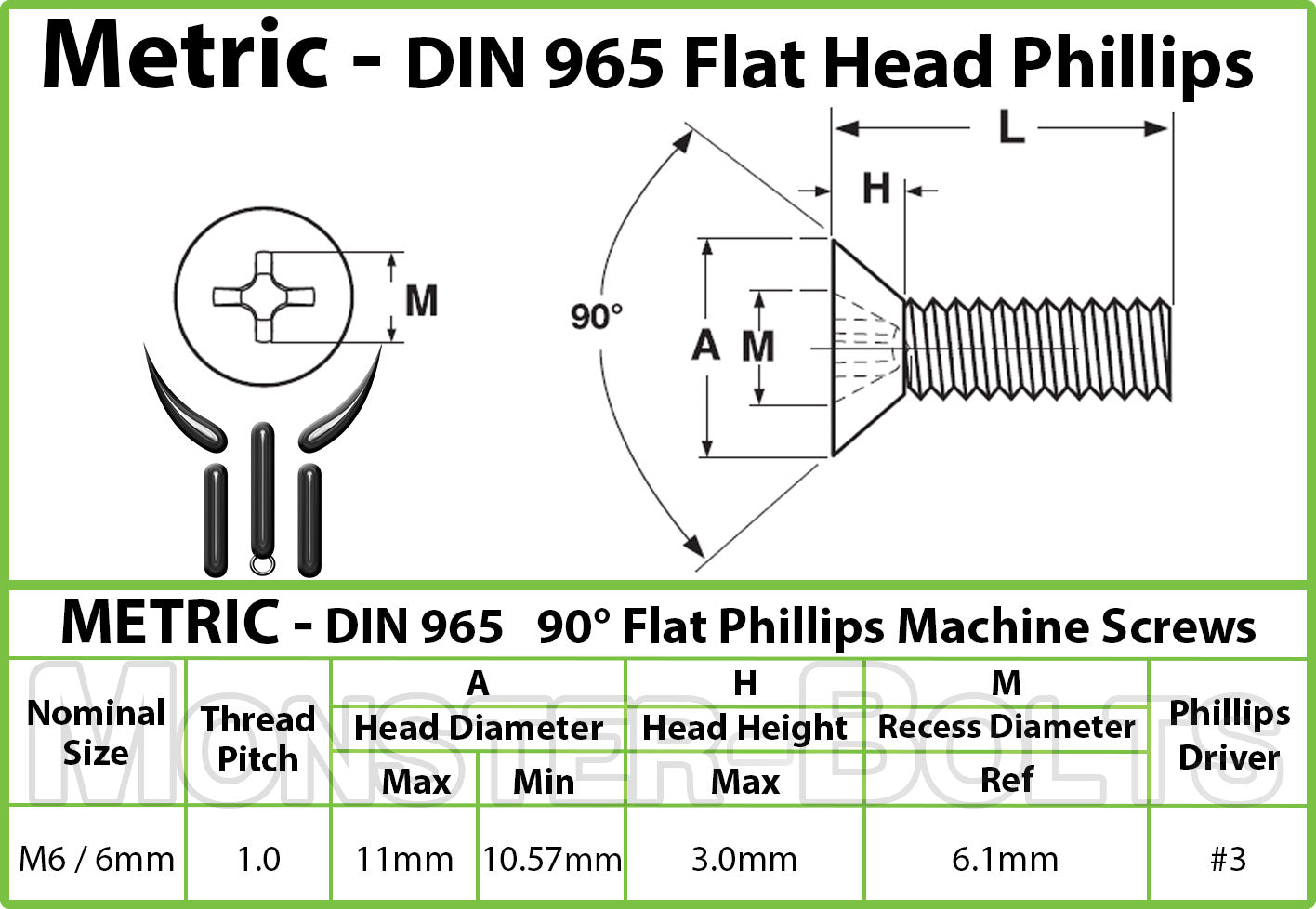

M6 Spec Sheet for Countersunk Phillips Flat Head Machine screws
Single Stainless Steel M6 screw shown for detail. Phillips Flat head.
Stainless Steel M6 x 10mm Phillips Flat Head machine screws.
Stainless Steel M6-1.0 x 12mm Phillips Flat Head machine screws with white background
Stainless Steel M6 x 16mm Phillips Flat Head machine screws.

M6 Phillips Flat Head Machine screws, A2 Stainless Steel DIN 965 Coarse Thread

Monster Bolts
Length: M6 x 10mm
Package Quantity: 10
Price:
$1.94

Description

M6 Flat Head Machine screws with Phillips Drive. Metric screws made from 18-8 Stainless Steel.  When installed, screws will be flush (countersunk) and as such are measured as overall length, not thread length (see diagram).
  • Diameter: M6 / 6mm
  • Thread Size: 1.0 - Coarse (Standard) Thread
  • Length: Countersunk screws measured 'overall length'
  • Drive: #3 Phillips Head
  • Type: Flat Phillips (Type H Recess)
  • Matching Nut & Washer: M6 - Available here
  • System of Measurement: Metric
  • Material: 18-8 Stainless Steel
  • Specifications: DIN 965 / ISO 7046
