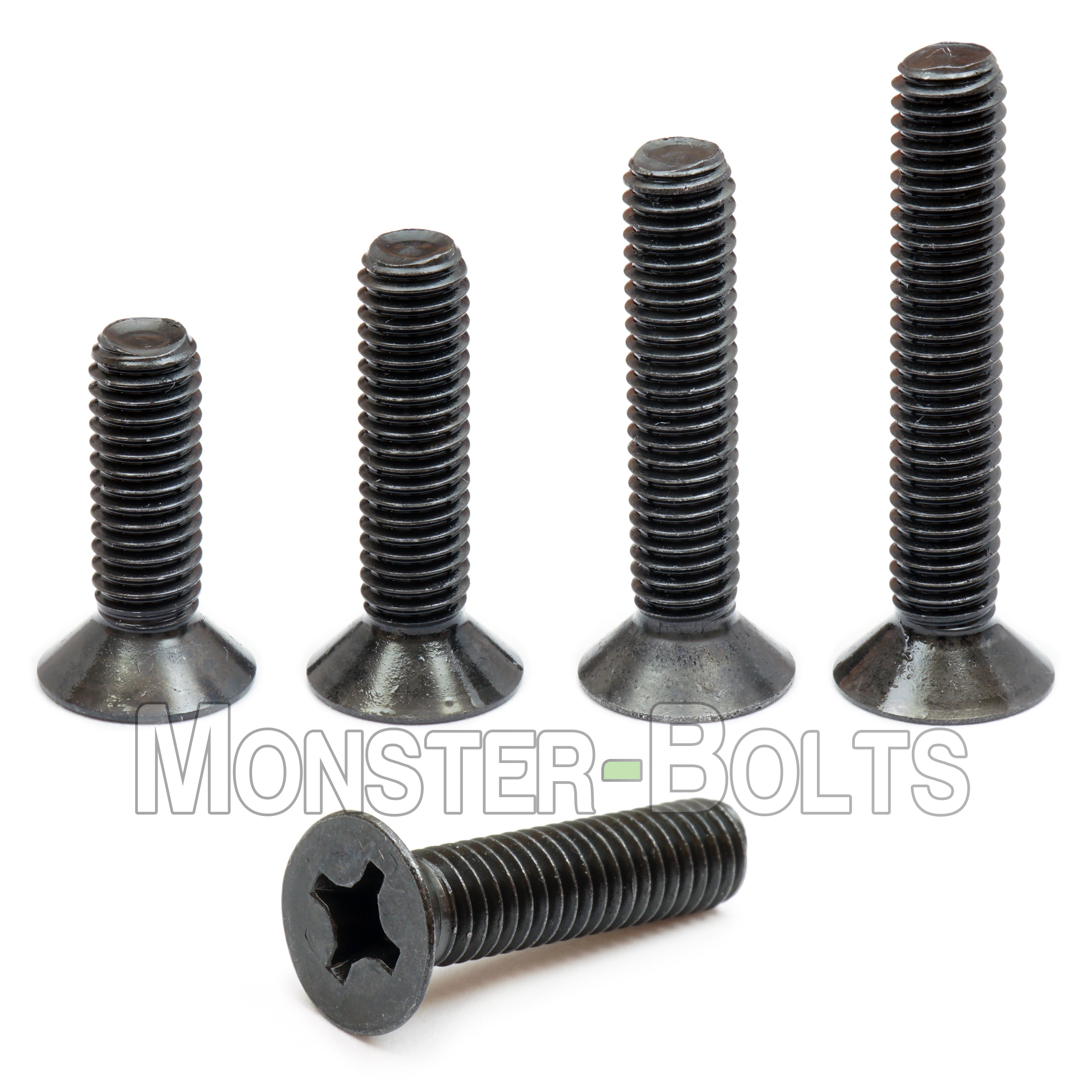

Black M2.5 Phillips flat head machine screws stacked to show different lengths with white background.

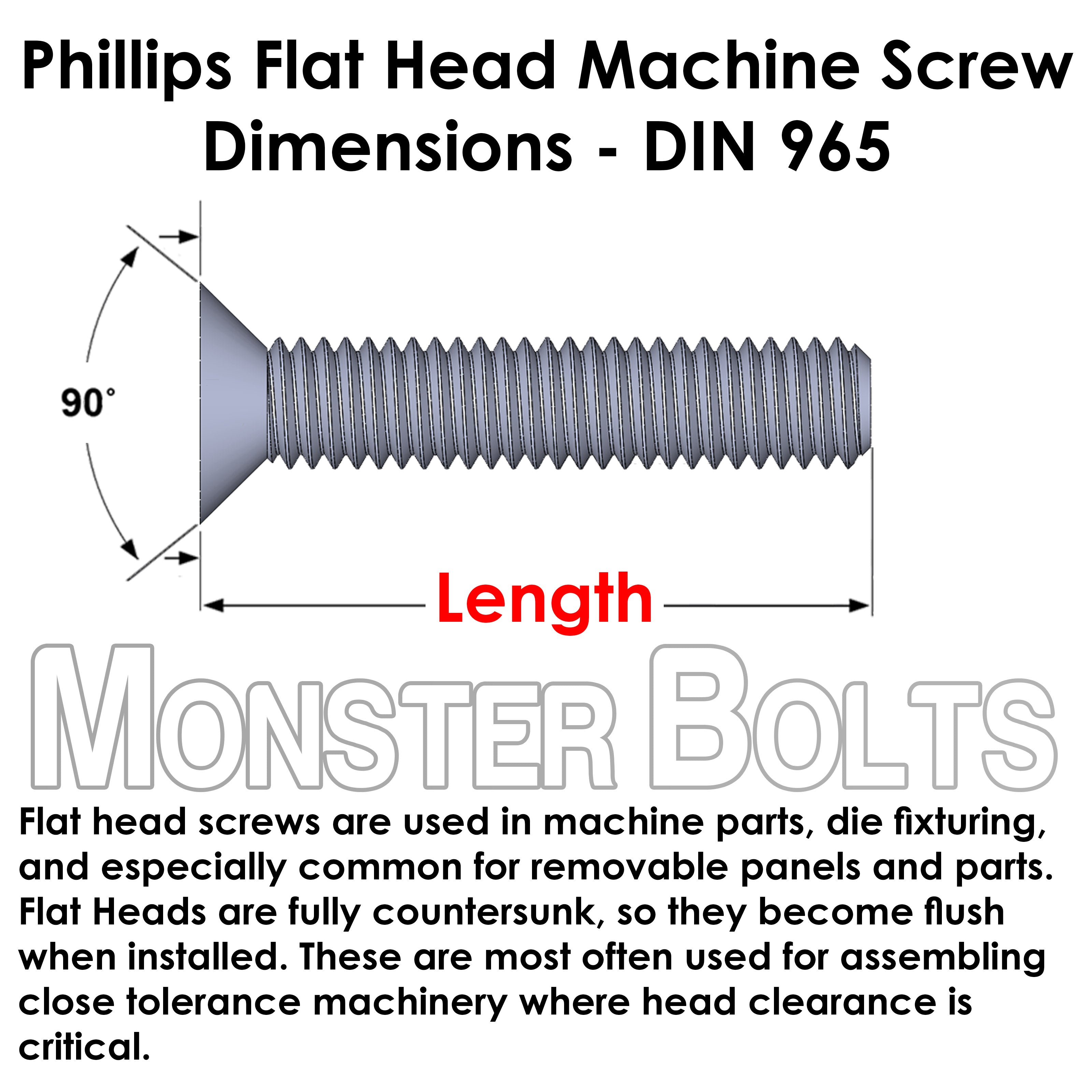

How to measure flat head machine screws with common uses and basic information.

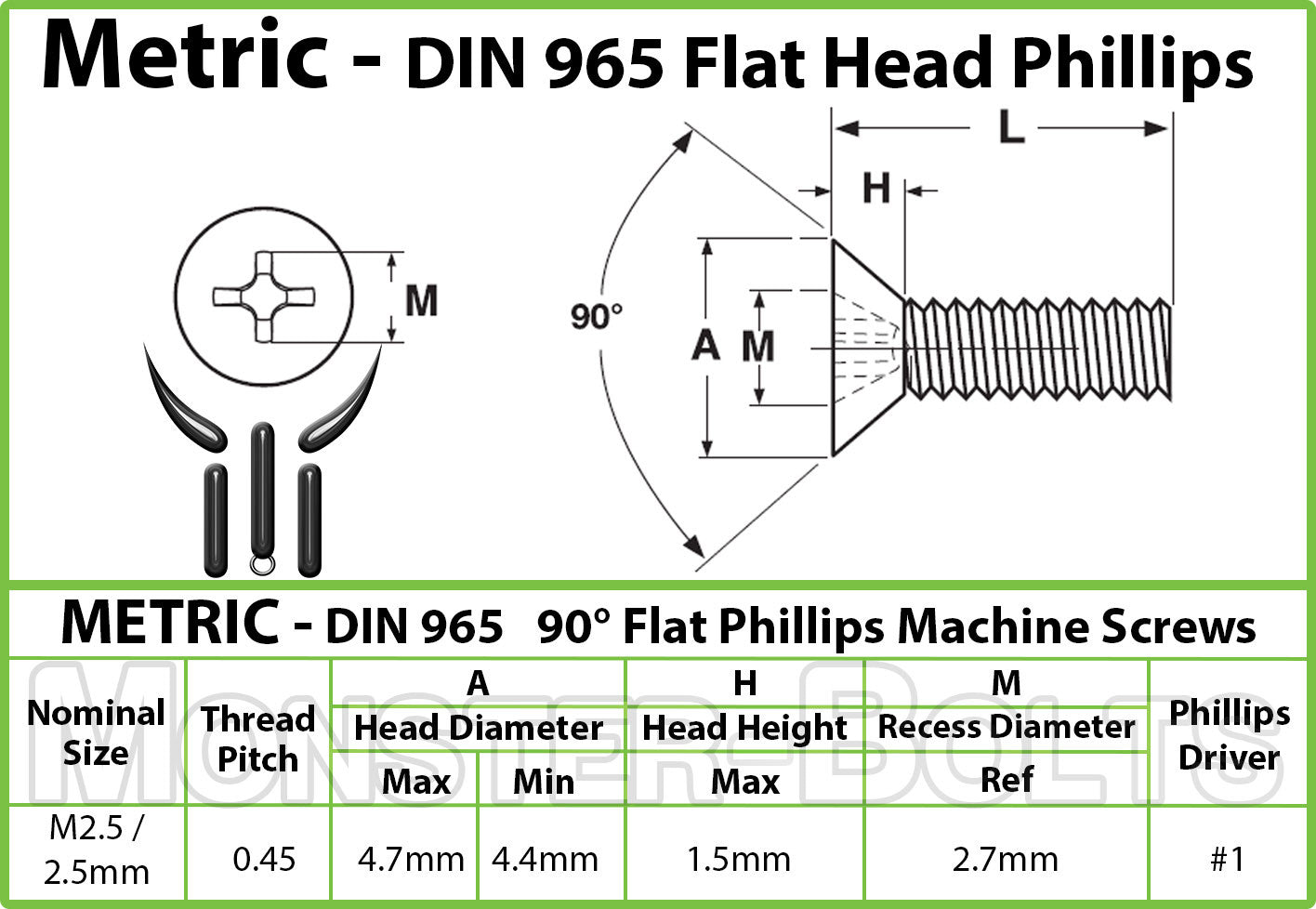

M2.5-0.45 Spec Sheet for Countersunk Phillips Flat Head Machine screws
Black M2.5 x 4mm Phillips Flat Head machine screws.
Black M2.5-0.45 x 5mm Phillips Flat Head machine screws with white background
Black M2.5 x 6mm Phillips Flat Head machine screws.
Black metric M2.5 x 8mm Phillips Flat Head screws.

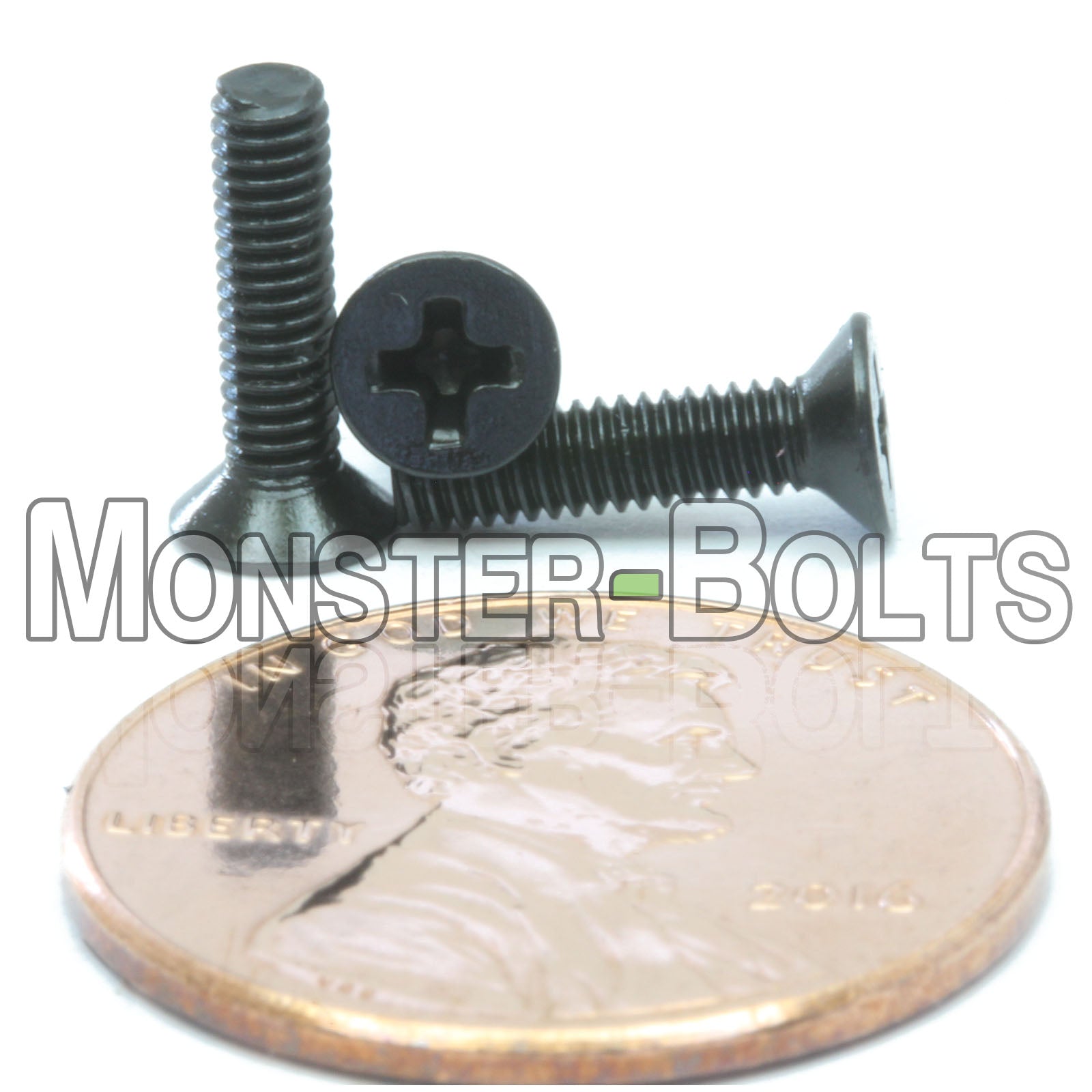

Black metric M2.5 x 10mm Phillips Flat Head machine screws.
Black M2.5 x 12mm Phillips Flat Head screws.
Black countersunk M2.5 x 16mm Phillips Flat Head machine screws.

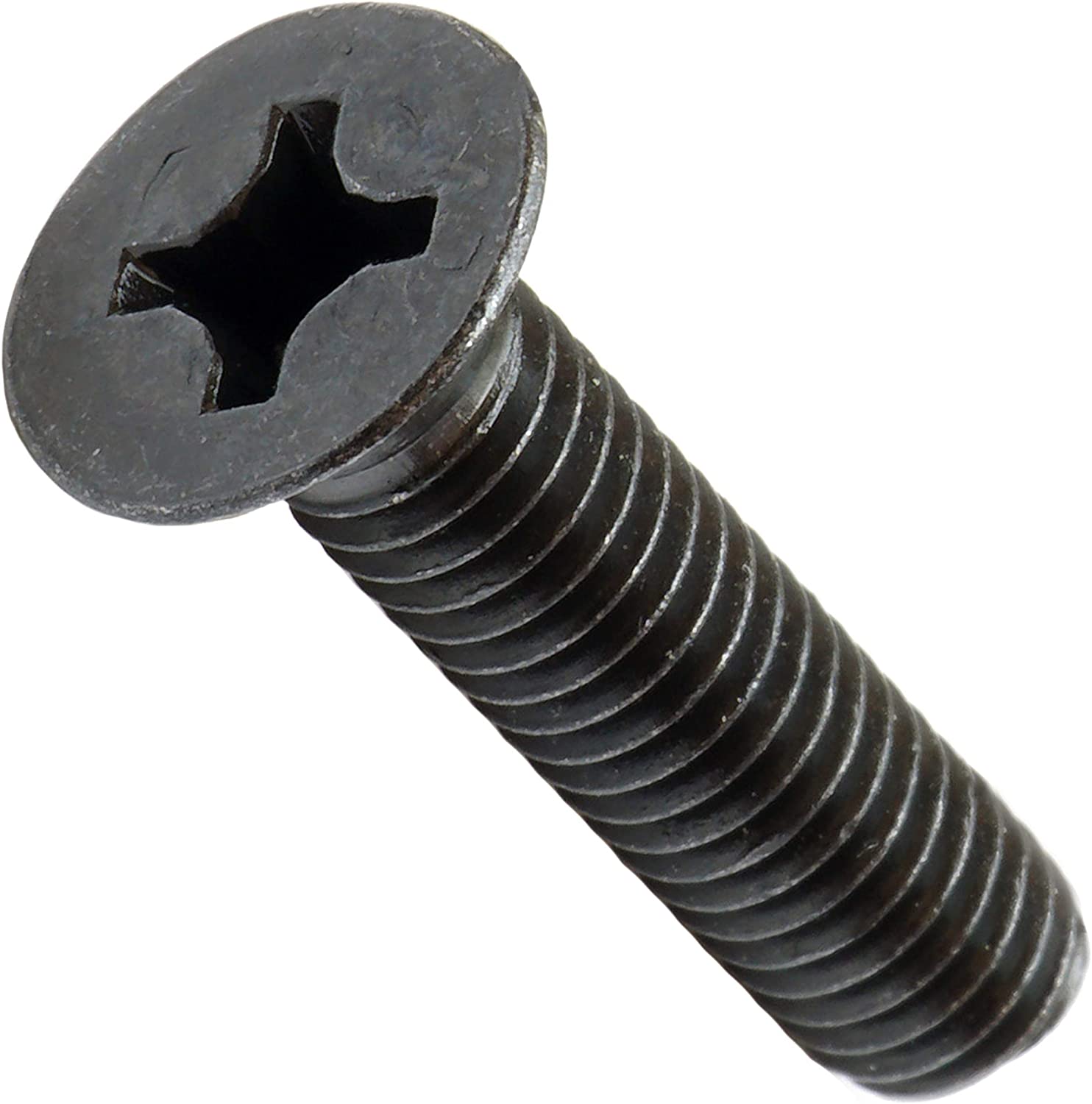

Single Black M2.5 screw shown for detail. Phillips Flat head.
Roll over image to zoom in Click on image to zoom
Black M2.5 Phillips flat head machine screws stacked to show different lengths with white background.
How to measure flat head machine screws with common uses and basic information.
M2.5-0.45 Spec Sheet for Countersunk Phillips Flat Head Machine screws
Black M2.5 x 4mm Phillips Flat Head machine screws.
Black M2.5-0.45 x 5mm Phillips Flat Head machine screws with white background
Black M2.5 x 6mm Phillips Flat Head machine screws.
Black metric M2.5 x 8mm Phillips Flat Head screws.
Black metric M2.5 x 10mm Phillips Flat Head machine screws.
Black M2.5 x 12mm Phillips Flat Head screws.
Black countersunk M2.5 x 16mm Phillips Flat Head machine screws.
Single Black M2.5 screw shown for detail. Phillips Flat head.

M2.5 Phillips Flat Head Machine screws, Steel w/ Black Oxide DIN 965 Coarse Thread

Monster Bolts
Length: M2.5 x 4mm
Package Quantity: 10
Price:
$1.30

Description

M2.5 Phillips Flat Head Countersunk Machine screws. Countersunk a standard 90° and are made from carbon steel with Black Oxide and Oil finish.
  • Diameter: M2.5 / 2.5mm
  • Thread Size: 0.40 - Coarse (Standard) Thread
  • Length: Countersunk screws measured 'overall length'.
  • Drive: #1 Phillips Head
  • Type: Flat Phillips (Type H Recess)
  • Matching Nut & Washer: M2.5 - Available here
  • System of Measurement: Metric
  • Material: Carbon Steel with Black Oxide and Oil
  • Specifications: DIN 965 / ISO 7046
