Monster Overview:

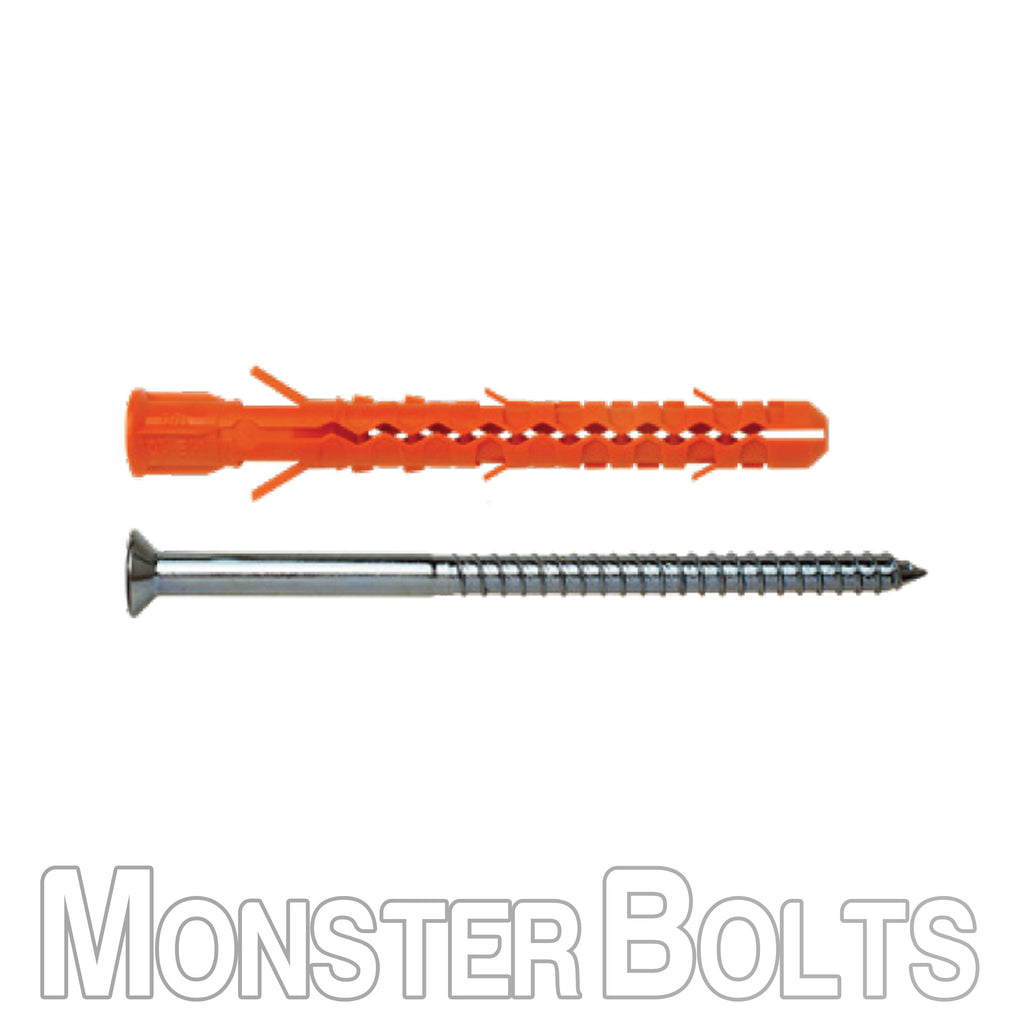

The Mungo MB-S Nylon Plug Anchor with Screw – M10 × 140 mm (Pozi 3 Framing) (#1122314) is a high-performance facade fixing solution for concrete and masonry. ETA-approved and fire-rated to F90, this anchor provides reliable resistance in structural and non-structural applications. Its extended expansion zone ensures secure installation in hollow and low-density materials.
Manufactured from premium polyamide PA6 nylon with a zinc-plated Pozi 3 framing screw, the MB-S series offers outstanding durability and versatility for both indoor and outdoor use.
Monster Features:
- ETA-approved for multiple fixings in concrete and masonry.
- Fire rating F90 for façade system safety.
- Extended expansion zone ensures strong hold in hollow brick and aerated concrete.
- Knock-in protection prevents premature expansion during installation.
- Rotation resistance keeps plug secure in drill hole.
- Pre-assembled with zinc-plated Pozi 3 framing screw for convenience.
- Indoor and outdoor applications.
Monster Specifications:
| Part No. | 1122314 |
| Anchor / Drill Ø | 10 mm |
| Anchor Length | 140 mm |
| Usable Length (tfix) | 70 mm |
| Screw Ø | 7 mm |
| Screw Length | 145 mm |
| Drive | Pozi 3 |
| Material | Nylon PA6 with zinc-plated steel screw |
Performance Data (Tensile Load, kN):
- Concrete C16/20: 1.0 kN
- Solid Brick: 0.6 kN
- Hollow Brick: 0.2 kN
- Aerated Concrete: 0.5 kN
(1 kN ≈ 100 kg; values from manufacturer testing)

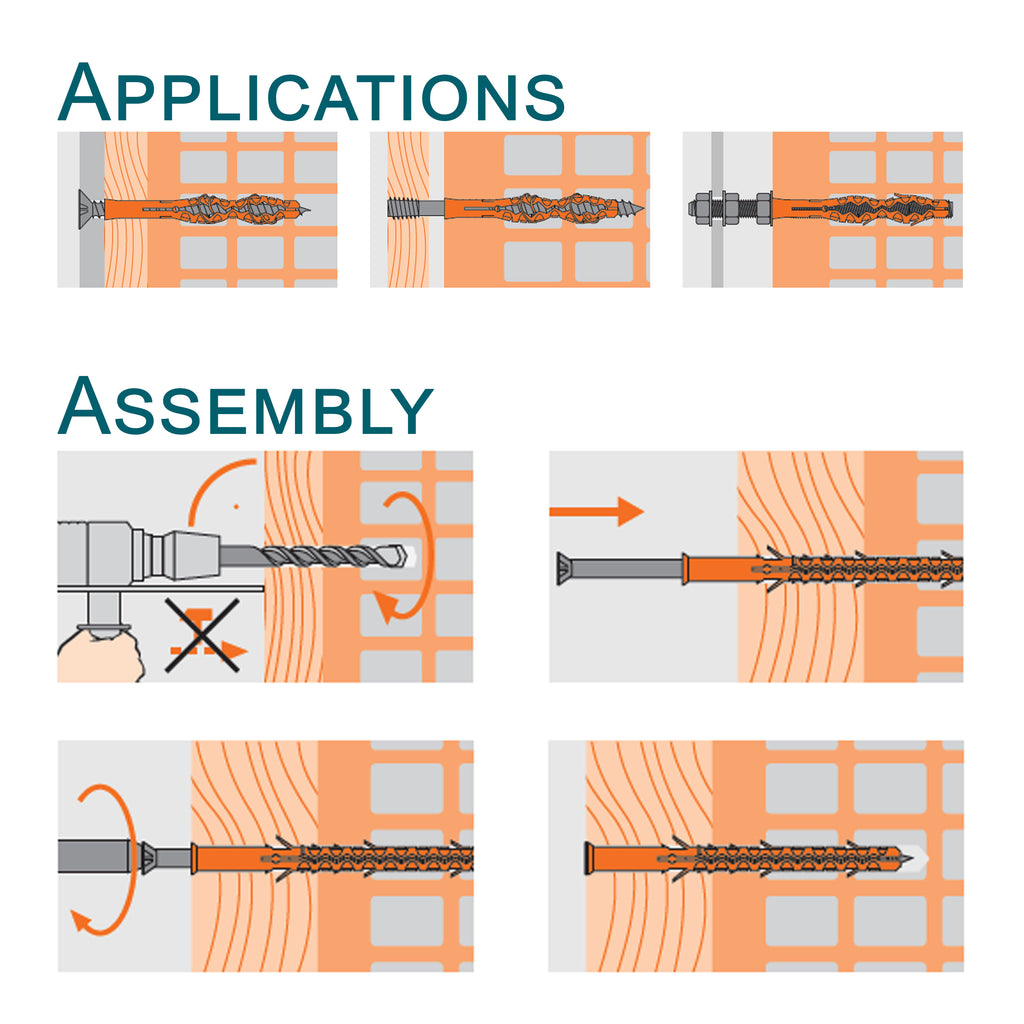

Quick Install Guide:
- Drill a 10 mm diameter hole to required depth.
- Insert MB-S plug with screw pre-assembled.
- Position fixture and tighten screw with Pozi 3 driver.
- Anchor expands in substrate, securing the fixture.
Typical Applications:
- Facade fixings
- Profiles and rails
- Frames and substructures
- General masonry and concrete anchoring
Order in Bulk Today!
Choose Mungo MB-S Nylon Plug Anchors with Screw – M10 × 140 mm (Pozi 3 Framing) for your masonry and facade projects. Bulk packs from Monster Bolts deliver professional-grade reliability on every job.
