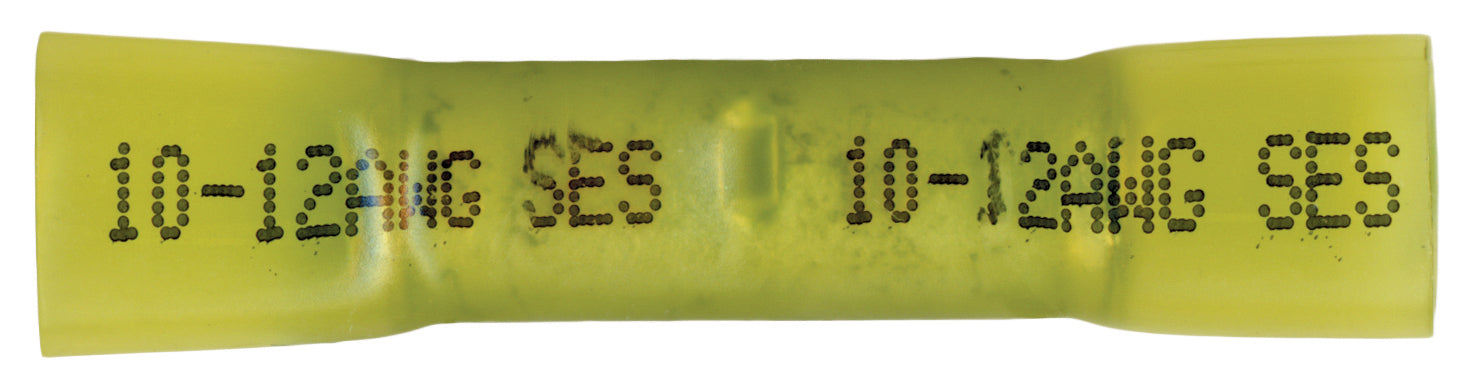

NSPA Krimpa-Seal Waterproof Crimp Butt Connectors, Yellow, 10-12 AWG


Wire Gauge: YELLOW 12-10 AWG
Package Quantities: 10
Price:
Sale price$4.07

Description

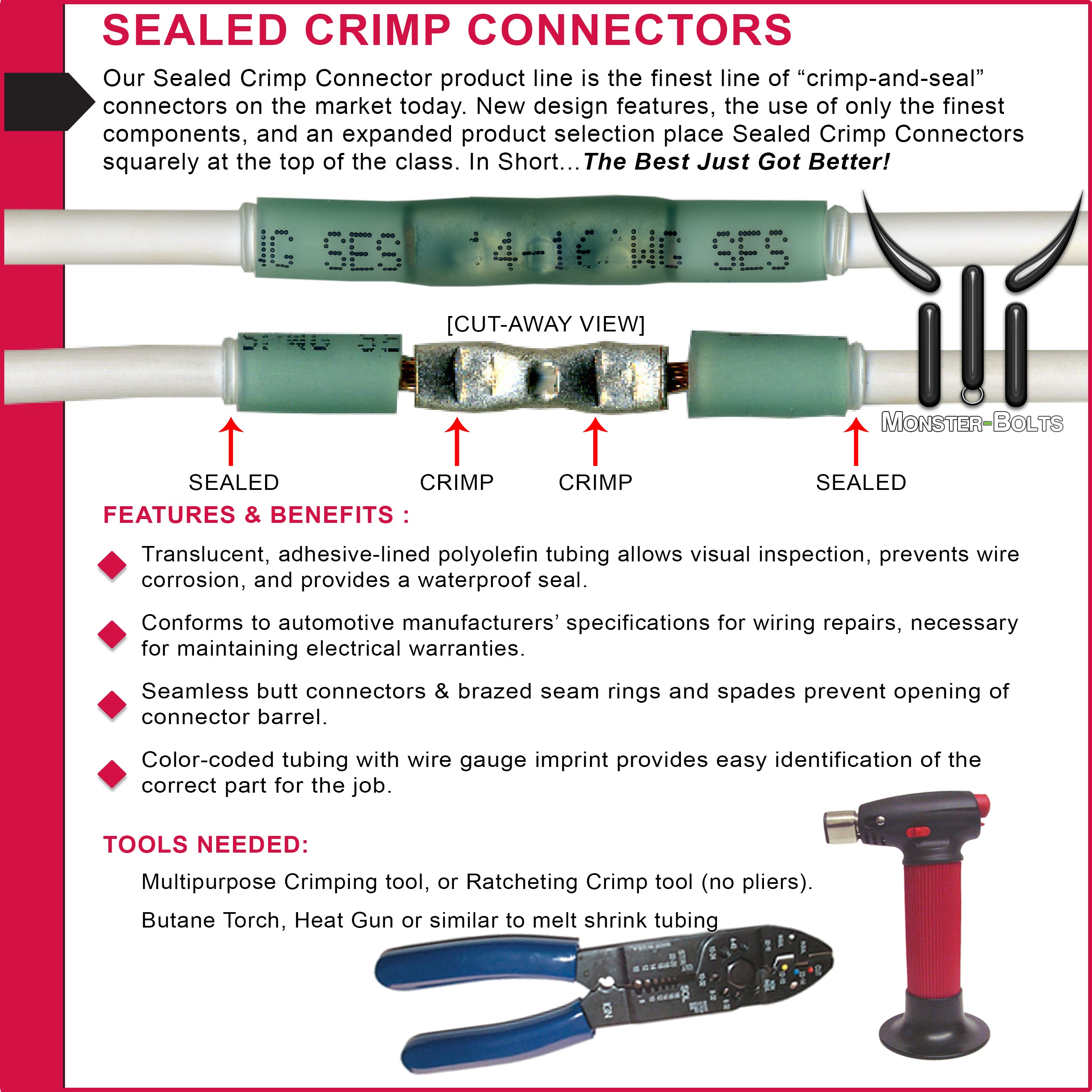

Yellow crimp and seal butt connectors. These are waterproof* heat shrink NSPA Krimpa-Seal Sealed Electrical butt connectors and are RoHS compliant. Made in the USA. There simply is no better product made.

  • Color: Yellow
  • Wire Size: Yellow (12-10 AWG)
  • Part #: KS5-10
  • Product Name: SES Krimpa-Seal, Sealed Crimp Butt Connector
  • Type: Crimp and Seal with Heat Shrink Tubing
  • Seam Type: Seamless

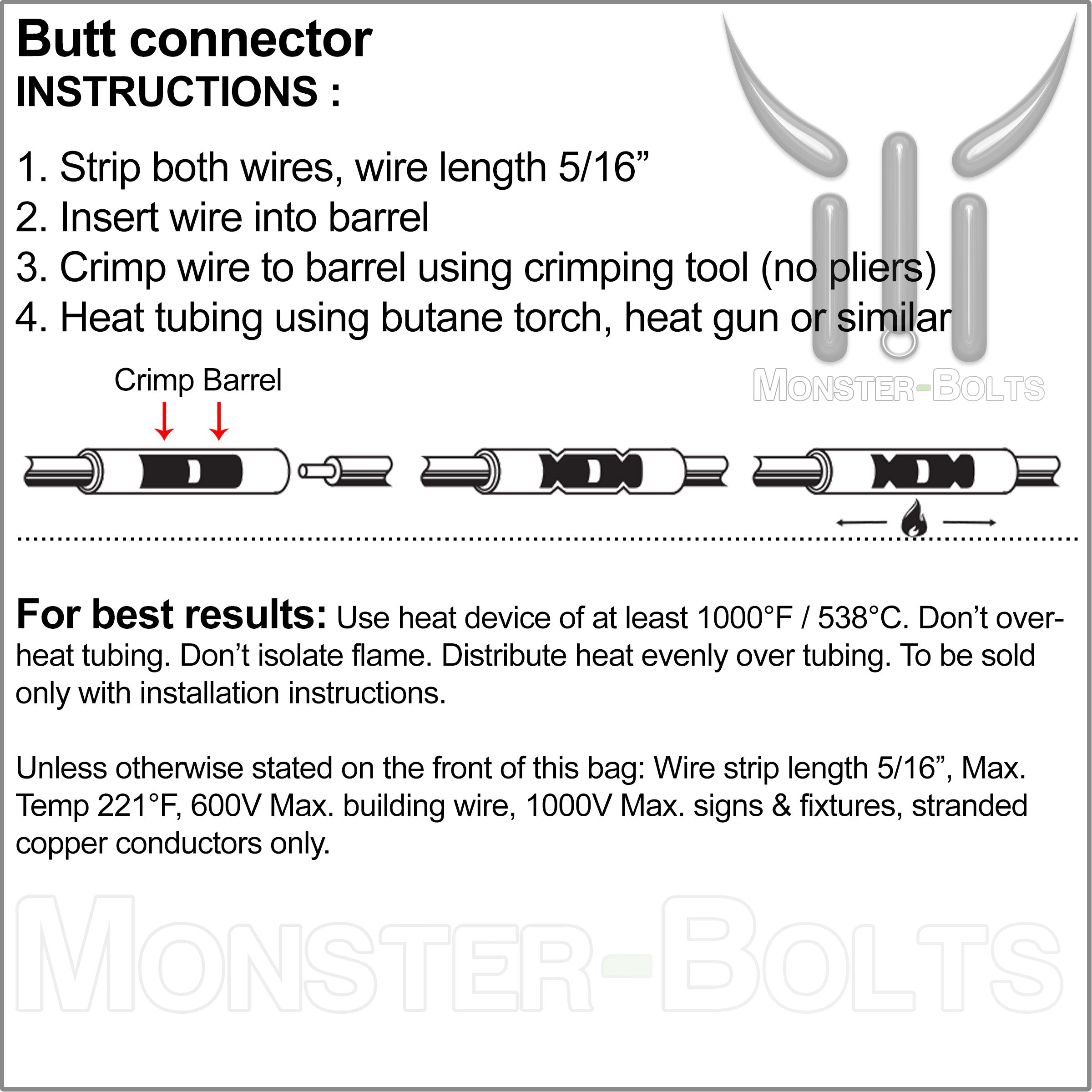

INSTRUCTIONS:

  1. Strip both wires, wire length 5/16" (8mm)
  2. Insert wire into barrel
  3. Crimp wire to barrel
  4. Heat tubing

For best results:  Use heat device of at least 1000 °F/538 °C. Don't overheat tubing. Don't isolate flame. Distribute heat evenly over tubing.

NOTE: Crimping tool and Heat Source to reduce tubing and seal connector needed.   Butane Torch and Ratcheting Crimp tool recommended. Questions, Please ask.

*  There is no official UL Standard for 'waterproof' electrical connectors. Connectors would most likely fall in the IP67 range (IP - Ingress Protection, 6 - Totally protected against dust, 7 - Protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes)
