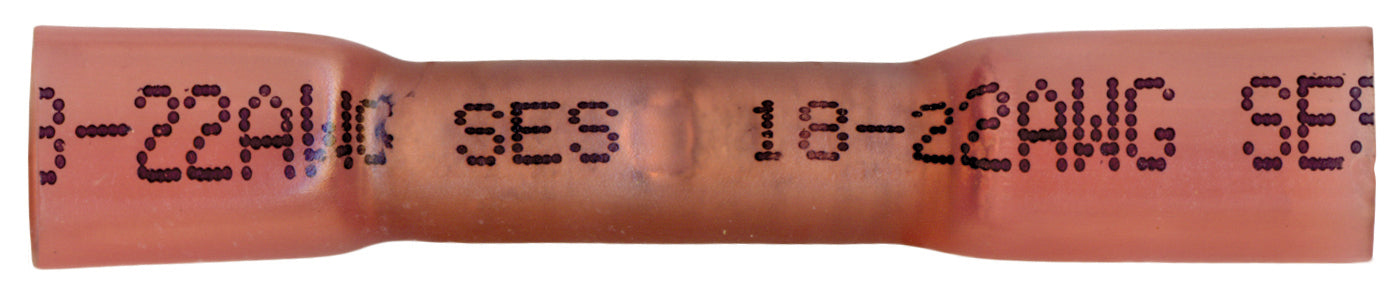

NSPA Krimpa-Seal Sealed Butt Connector – Red (22-18 AWG)


Wire Gauge: RED 22-18 AWG
Package Quantities: 10
Price:
Sale price$3.55

Description

NSPA Krimpa-Seal Red Butt Connector – 22-18 AWG Waterproof Crimp & Seal

Monster Overview:

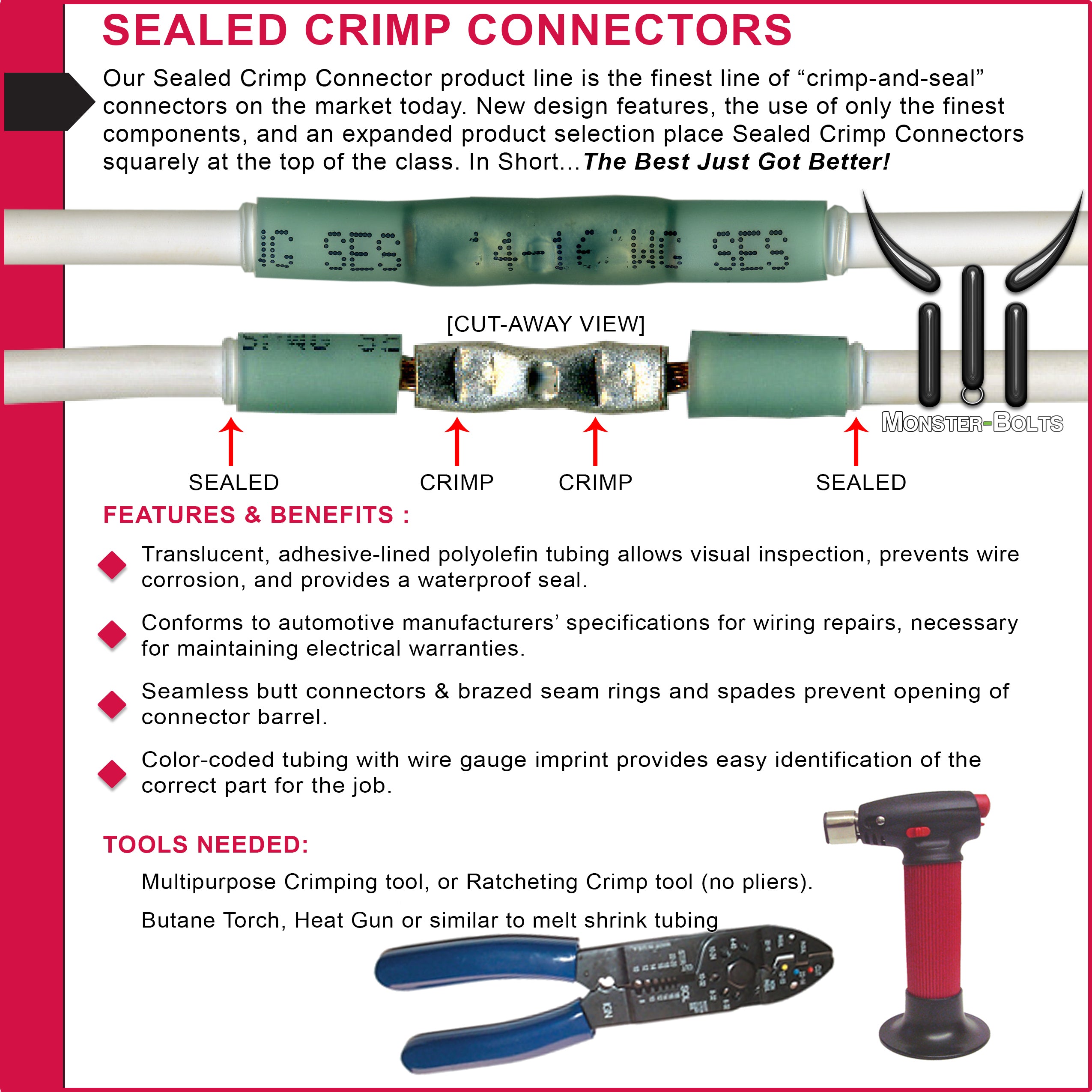

Tackle low-gauge wire connections with NSPA Krimpa-Seal™ Sealed Red Butt Connectors, trusted by professionals for fast, waterproof splicing. Designed for 22–18 AWG wires, these connectors feature seamless copper barrels and heat-activated adhesive lining for a long-lasting seal.

Ideal for electronics, automotive, marine, and general wiring projects, these connectors are made in the USA and meet RoHS standards. Get the job done right—with Krimpa-Seal reliability you can trust.

Monster Features:

  • Brand: NSPA Krimpa-Seal™
  • Connector Type: Sealed Crimp Butt Connector
  • Seal Type: Crimp & Seal – no solder needed
  • Made in: USA
  • Barrel: Seamless copper for strong electrical connection
  • Tubing: Adhesive-lined polyolefin, 3:1 shrink ratio
  • Waterproof Rating: IP67 when installed correctly*
  • Compliance: RoHS compliant

Monster Specifications:

  • Color Code: Red
  • Wire Gauge: 22–18 AWG
  • Part #: KS5-16
  • Type: Crimp & Seal with heat shrink tubing
  • Seam Type: Seamless

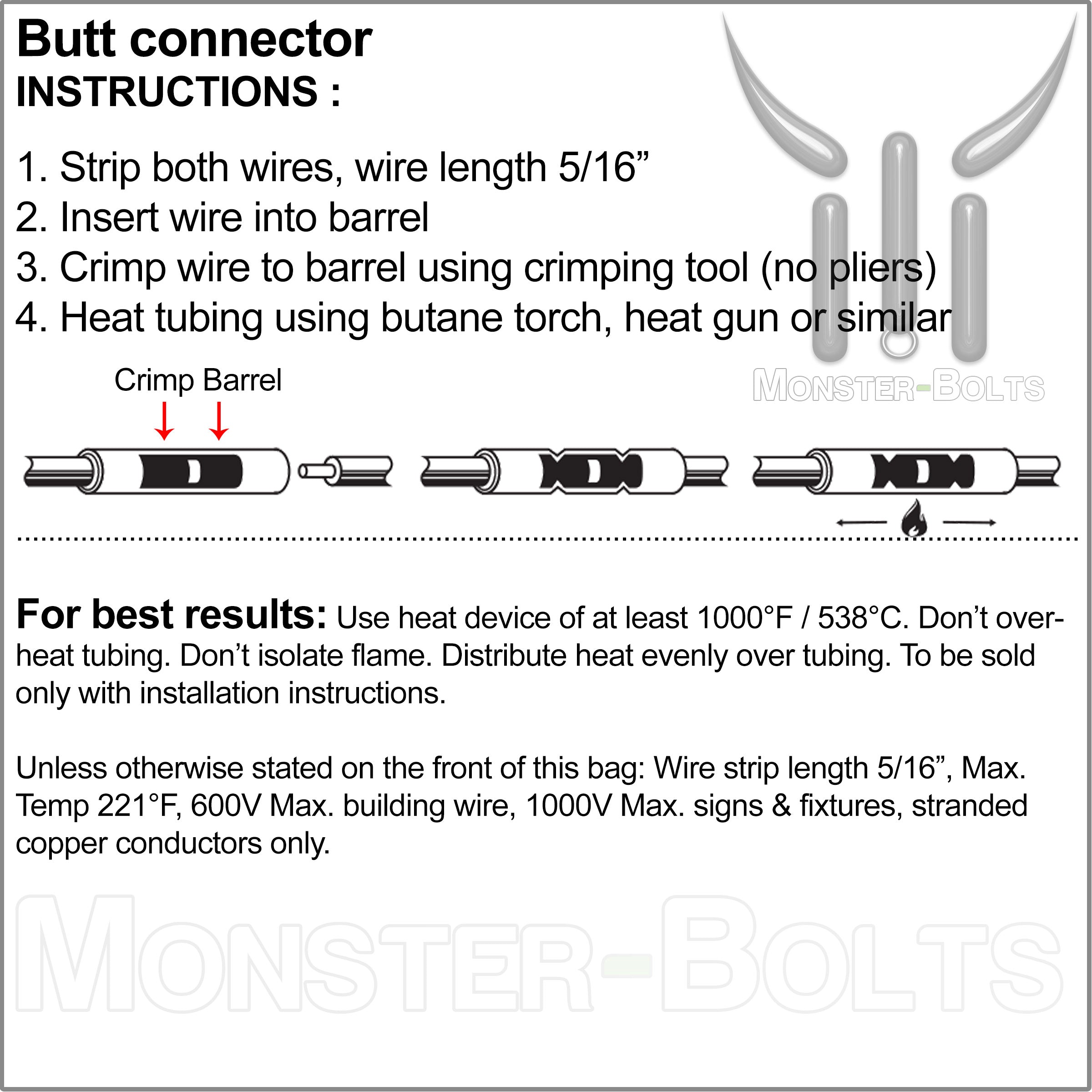

Installation Instructions:

  1. Strip both wires to 5/16" (8 mm)
  2. Insert wires fully into the barrel
  3. Crimp using a ratcheting crimp tool
  4. Apply heat evenly until tubing shrinks and adhesive flows

For best results: Use a heat source rated at 1000 °F (538 °C). Avoid isolating flame or overheating—distribute heat evenly over the tubing.

Order Yours Today from Monster Bolts!

NSPA Krimpa-Seal connectors are engineered for dependable electrical performance in harsh conditions. Shop now for fast shipping and expert support.

* There is no official UL standard for “waterproof” electrical connectors. These connectors typically meet IP67: fully dust-tight and resistant to temporary immersion (15 cm to 1 m for up to 30 minutes) when properly installed.
