Monster Overview:
For demanding applications where strength, sealing, and reliability matter, choose NSPA MultiLink™ Sealed Crimp and Solder Butt Connectors. These yellow 12–10 AWG connectors deliver a superior connection with lead-free solder, a seamless copper barrel, and adhesive-lined polyolefin tubing for long-lasting IP67-level protection.
Featuring a built-in solder ring, clear insulation for visual inspection, and an internal wire stop for precision placement, MultiLink connectors combine speed, safety, and electrical integrity. Made in the USA and RoHS compliant.
Monster Features:
- Brand: NSPA MultiLink™
- Connector Type: Sealed Crimp & Solder Butt Connector
- Seal Type: Crimp, solder, and adhesive-lined heat shrink – triple-seal design
- Made in: USA
- Solder: Lead-free RoHS compliant solder with lower melting point and higher strength
- Barrel: Seamless with central wire stop and solder window
- Tubing: Adhesive-lined clear polyolefin, 3:1 shrink ratio
- Waterproof Rating: IP67 when properly installed*
- Compliance: RoHS compliant – no hazardous metals
Monster Specifications:
- Color Code: Yellow
- Wire Gauge: 12–10 AWG
- Part #: MLF5-10
- Seam Type: Seamless barrel with internal stop and solder window
- Material: Tinned copper + lead-free solder + adhesive-lined tubing

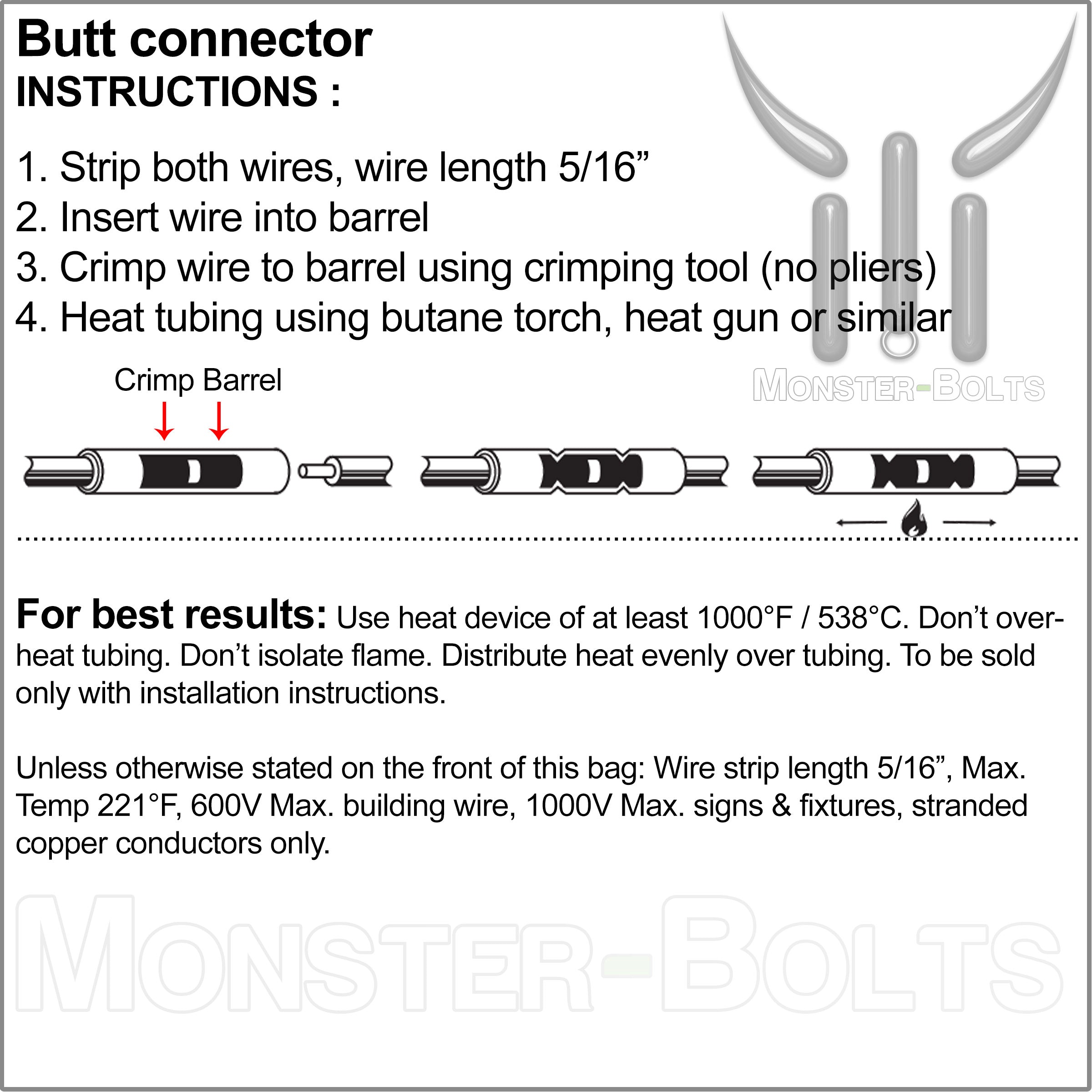

Installation Instructions:
- Strip both wires to 5/16" (8 mm)
- Insert wires fully until they meet at the internal stop
- Crimp securely using a ratcheting crimp tool
- Apply heat beginning at the center and working outward
- Focus on solder ring—rotate the connector as you apply heat until solder melts and flows
For best results: Use a heat device rated for 1000 °F (538 °C). Do not isolate flame or overheat—apply heat evenly for a clean seal.
Order Yours Today from Monster Bolts!
Designed for critical connections in automotive, marine, and industrial applications, MultiLink connectors deliver unmatched sealing performance. Fast shipping from the USA—Monster Bolts has you covered.
* There is no official UL standard for “waterproof” connectors. When properly installed, these connectors typically meet IP67: dust-tight and protected against temporary immersion (15 cm to 1 m for up to 30 minutes).
