NSPA Krimpa-Seal Step-Down Butt Connector – 22-18 to 16-14 AWG


Wire Gauge: Blue/Red, 16-14 to 22-18 AWG
Package Quantities: 10
Price:
Sale price$6.88

Description

NSPA Krimpa-Seal Step-Down Butt Connector – Waterproof 22-18 to 16-14 AWG

Monster Overview:

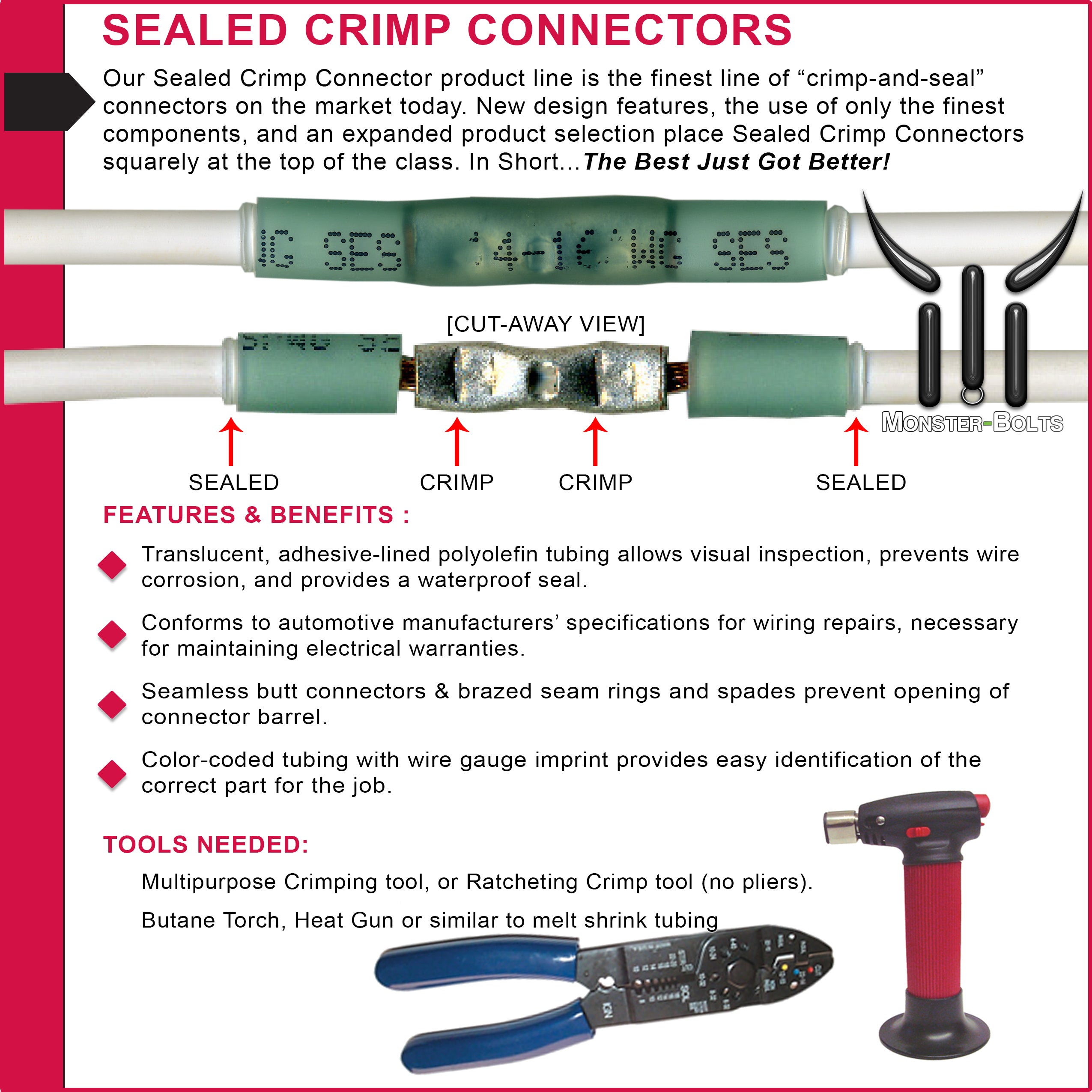

Step down safely with NSPA Krimpa-Seal™ Sealed Butt Connectors, engineered to connect 22–18 AWG to 16–14 AWG wires with maximum conductivity and environmental protection. These USA-made crimp and seal connectors are the go-to solution for dependable splicing across wire gauges.

The seamless copper barrel ensures a strong crimp, while the adhesive-lined heat shrink tubing seals against moisture, dirt, and vibration. Each connector is marked with red and blue gauge bands for easy identification and compliance with RoHS standards.

Monster Features:

  • Brand: NSPA Krimpa-Seal™
  • Connector Type: Step-Down Butt Connector (22–18 AWG to 16–14 AWG)
  • Seal Type: Crimp & Seal – no solder required
  • Made in: USA
  • Barrel: Seamless copper for secure crimping and minimal resistance
  • Tubing: Adhesive-lined polyolefin heat shrink (3:1 shrink ratio)
  • Waterproof Rating: IP67 (when properly installed*)
  • Compliance: RoHS compliant

Monster Specifications:

  • Color Code: Blue with Red/Blue wire size strip marker
  • Wire Size Compatibility: 22–18 AWG to 16–14 AWG
  • Part #: KS56-16
  • Seam Type: Seamless
  • Tubing Type: Adhesive-lined polyolefin tubing

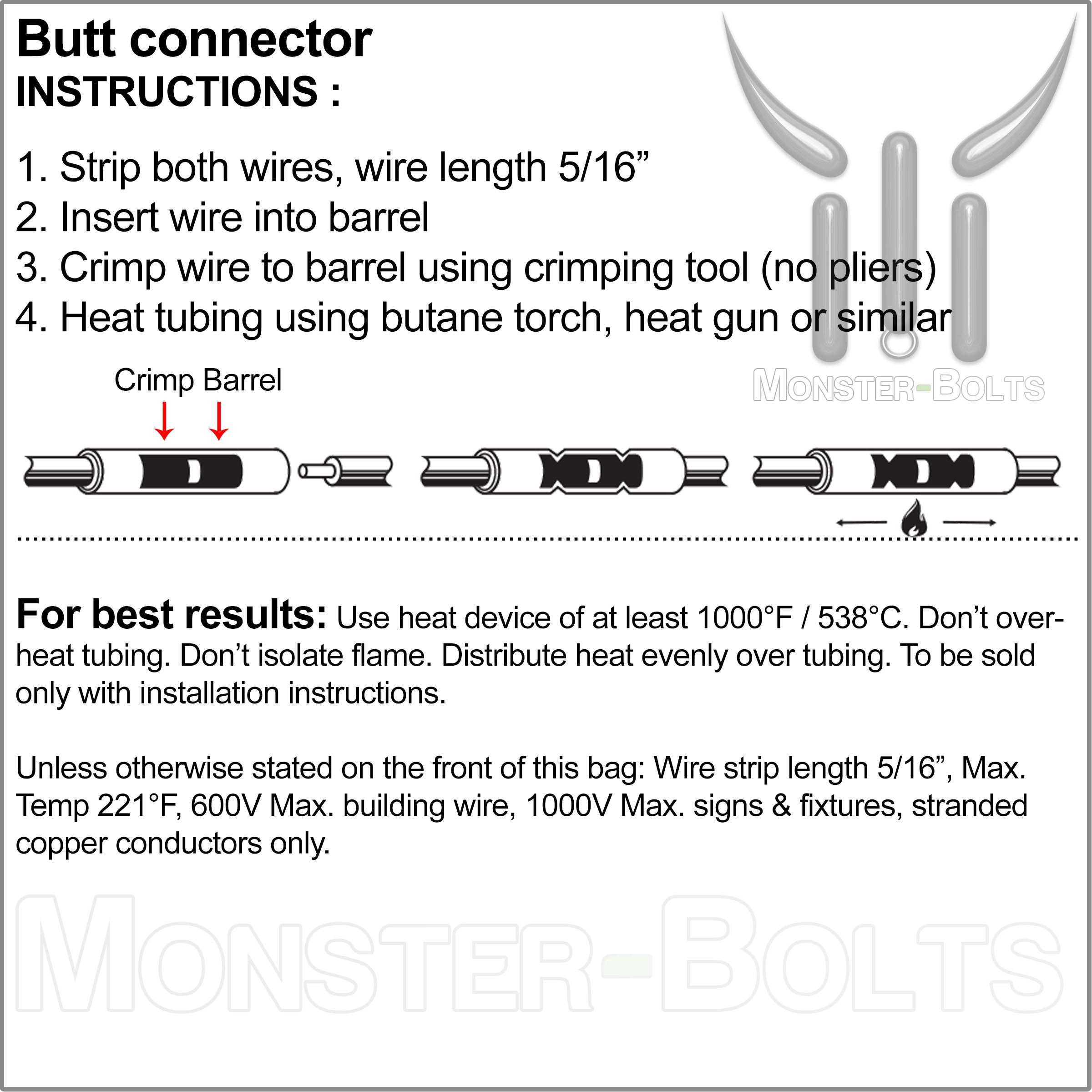

Installation Instructions:

  1. Strip both wires to 5/16" (8 mm)
  2. Insert wires into the correct ends of the connector
  3. Crimp using a ratcheting crimp tool
  4. Heat evenly until tubing shrinks and adhesive fully seals

For best results: Use a heat source rated to at least 1000°F (538°C). Distribute heat evenly—avoid overheating or flame isolation.

Order Yours Today from Monster Bolts!

NSPA’s Krimpa-Seal connectors deliver premium-grade, field-proven performance. Order now for fast shipping, reliable inventory, and industry-leading support.

* There is no official UL standard for “waterproof” electrical connectors. Properly installed connectors typically meet IP67: fully dust-tight and protected from temporary immersion (15 cm – 1 m for up to 30 minutes).
