Description

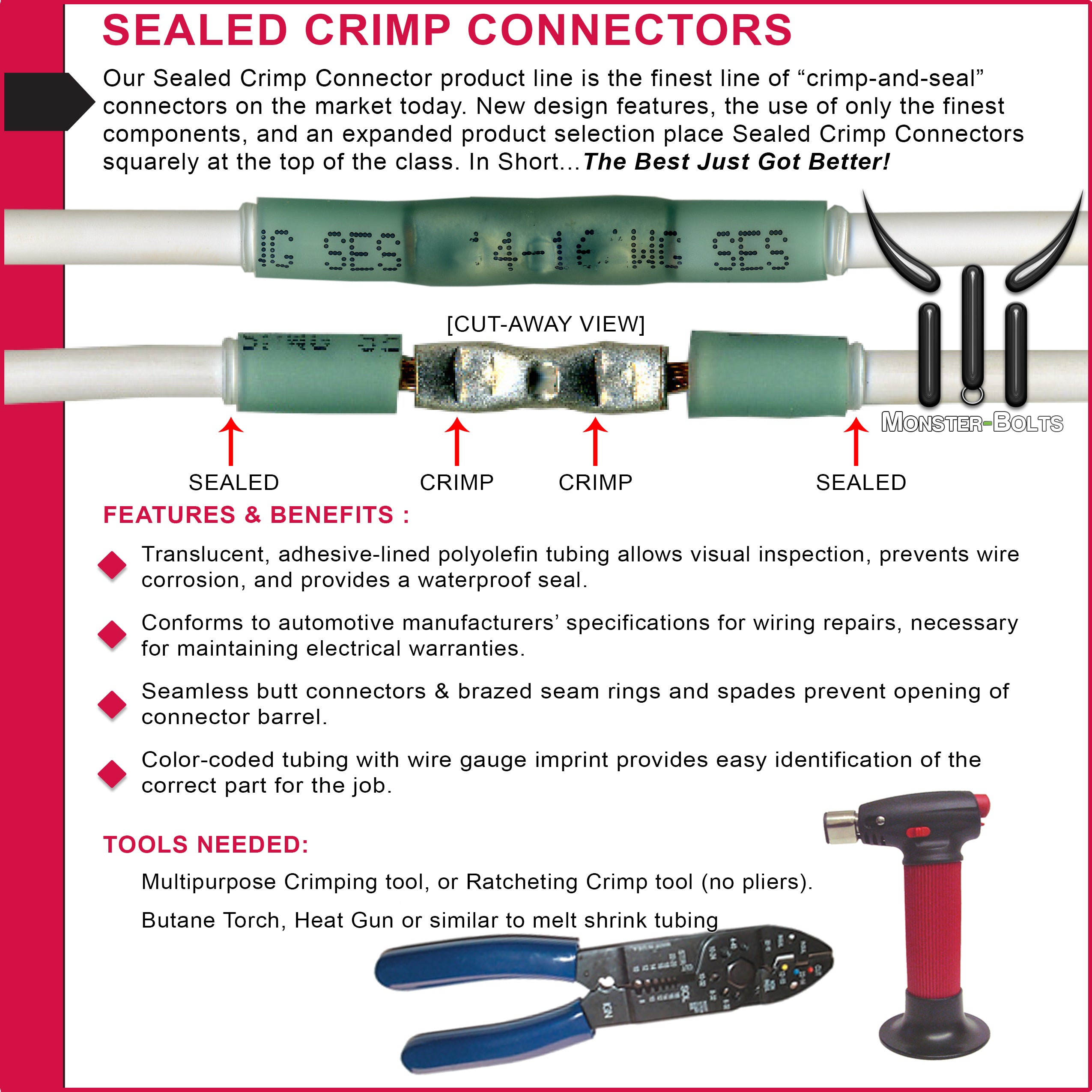

Red crimp and seal step-down wire connectors. These are waterproof* heat shrink NSPA Krimps-Seal sealed electrical butt connectors. Tapered connectors and are RoHS compliant. Made in the USA. There simply is no better product made.
- Color: Red with White/Red wire size strip marker
- Wire Size: 24-22 AWG to 22-18 AWG
- Product Name: SES Krimpa-Seal, Heat Shrink Crimp Step Down Connectors
- Type: Step Down Butt Connector, Crimp and Seal with Adhesive-Lined Heat Shrink Tubing
- Seam Type: Seamless
- Part #: KS56-20 (Red/White; 22-18 AWG to 24-22 AWG)

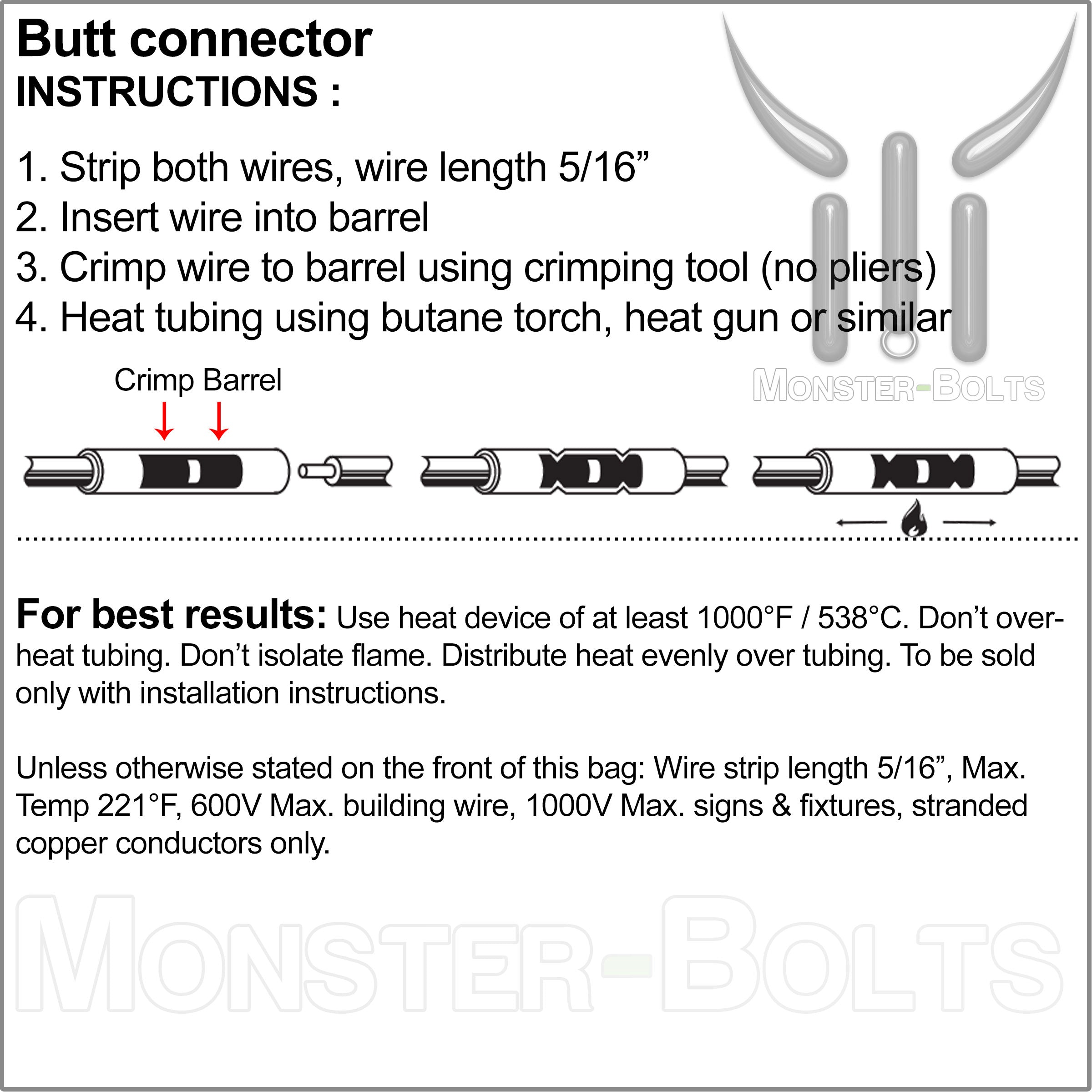

INSTRUCTIONS:
- Strip both wires, wire length 5/16" (8mm)
- Insert wire into barrel
- Crimp wire to barrel
- Heat tubing
For best results: Use heat device of at least 1000°F/538°C. Don’t overheat tubing. Don’t isolate flame. Distribute heat evenly over tubing.
NOTE : Crimping tool and Heat Source to reduce tubing and seal connector needed. Butane Torch and Ratcheting Crimp tool recommended. Questions, please ask.
* There is no official UL Standard for 'waterproof' electrical connectors. Connectors would most likely fall in the IP67 range (IP - Ingress Protection, 6 - Totally protected against dust, 7 - Protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes)
