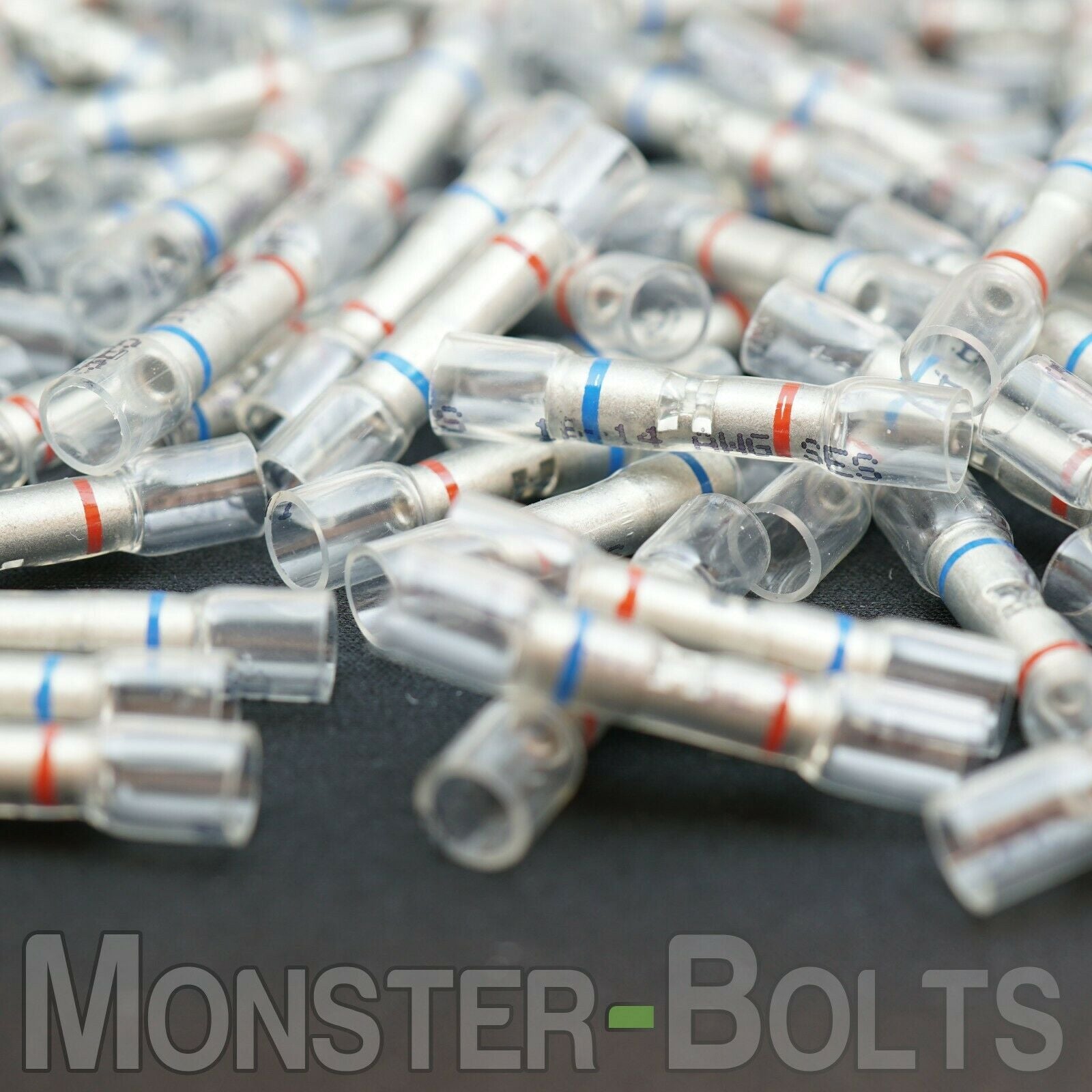

NSPA OptiSeal Waterproof Crimp Step Down Butt Connectors, Red/Blue, 22-18 to 16-14 AWG


Wire Gauge: Red/Blue, 22-18 to 16-14 AWG
Package Quantities: 100
Price:
Sale price$51.07

Description

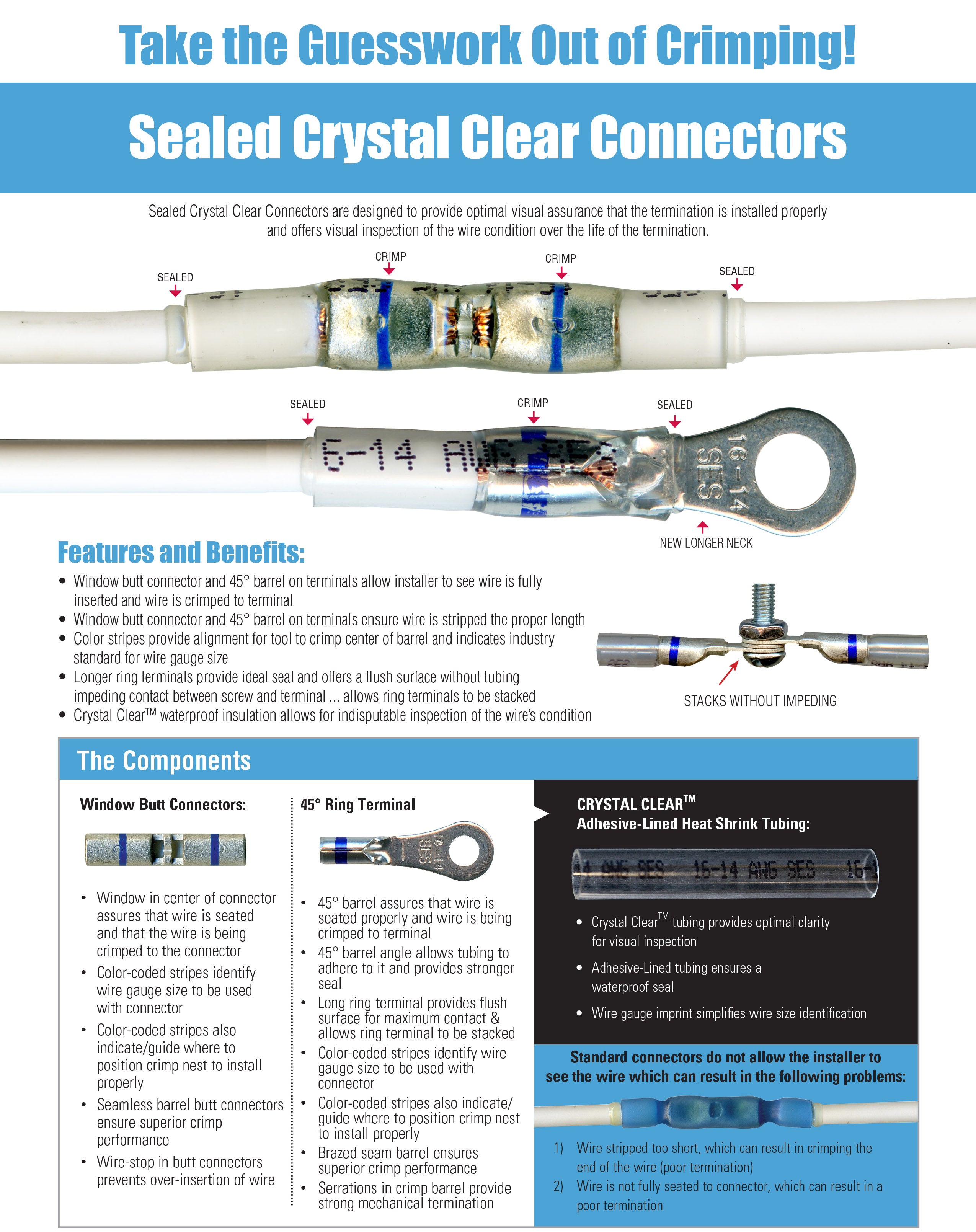

Opti-Seal OS56-16 - Crimp and Seal Step-Down Wire Connectors.  These are waterproof* heat shrink sealed electrical connectors.  These are RoHS compliant and made in the USA.  There simply is no better product made.

  • Color : Crystal Clear with Red/Blue wire size strip marker
  • Wire Size : 22-18 AWG to 16-14 AWG (Part # OS56-16)
  • Product Name : SES Opti-Seal, Heat Shrink Crimp Step Down Connectors
  • Type : Window with Wire Stop, Crimp and Seal with Adhesive-Lined Heat Shrink Tubing
  • Seam Type : Seamless
  • Part # : OS56-16 (Red / Blue; 2-18 AWG to 16-14 AWG)

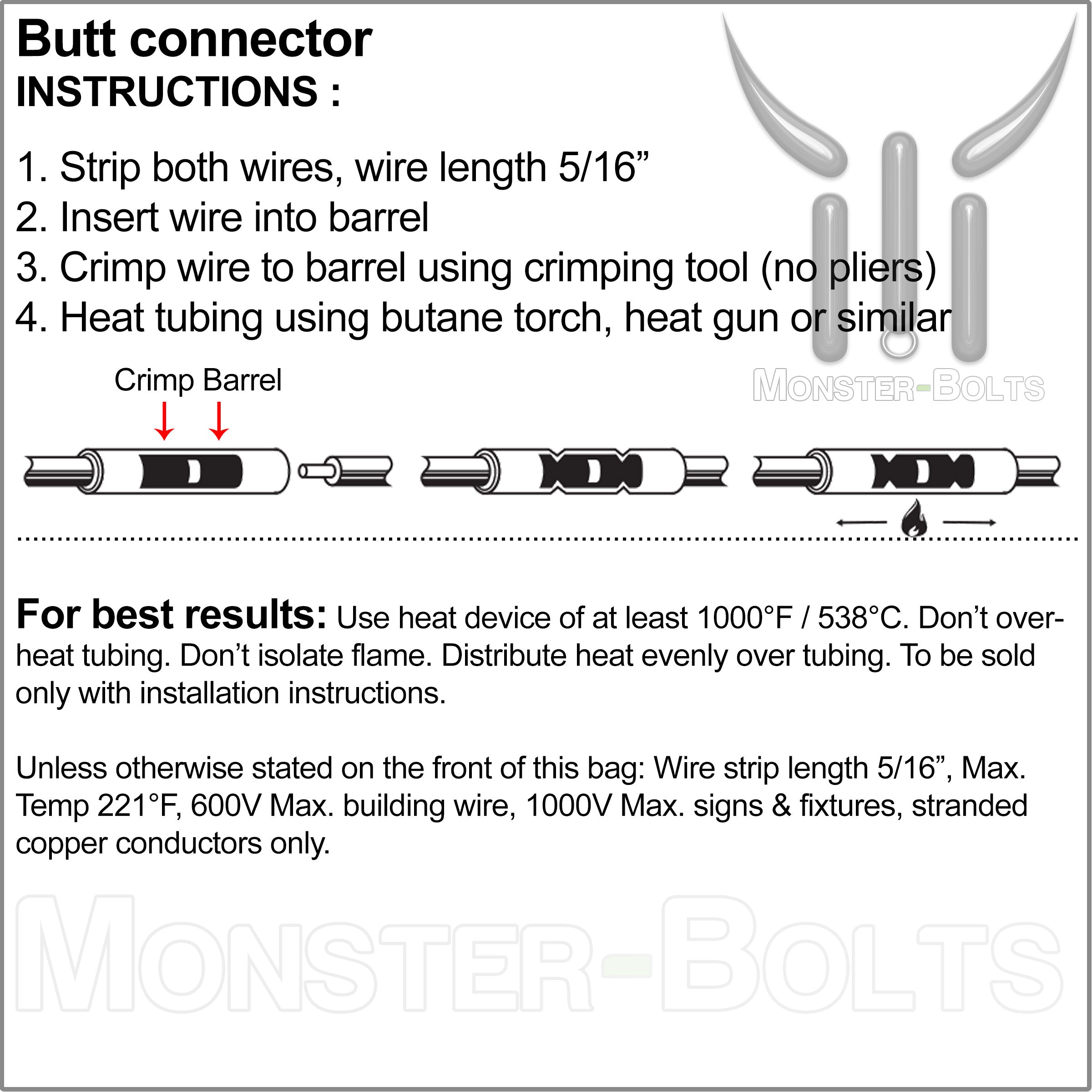

INSTRUCTIONS:

  1. Strip both wires, wire length 5/16" (8mm)
  2. Insert wire into barrel
  3. Crimp wire to barrel
  4. Heat tubing

For best results: Use heat device of at least 1000°F/538°C. Don’t overheat tubing. Don’t isolate flame. Distribute heat evenly over tubing.

NOTE : Crimping tool and Heat Source to reduce tubing and seal connector needed.  Butane Torch and Ratcheting Crimp tool recommended.  Questions, please ask.

* There is no official UL Standard for 'waterproof' electrical connectors. Connectors would most likely fall in the IP67 range (IP - Ingress Protection, 6 - Totally protected against dust, 7 - Protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes)
