Introducing our premium 1"-14 L9 Hex Head Cap Screws, the ultimate solution for high-stress applications requiring maximum strength and precision. Engineered for unmatched performance, these bolts are made in the USA from high-grade alloy steel and boast exceptional mechanical properties, including a tensile strength of 180,000 PSI—the highest in the industry.

Why Choose Our L9 Hex Head Cap Screws?

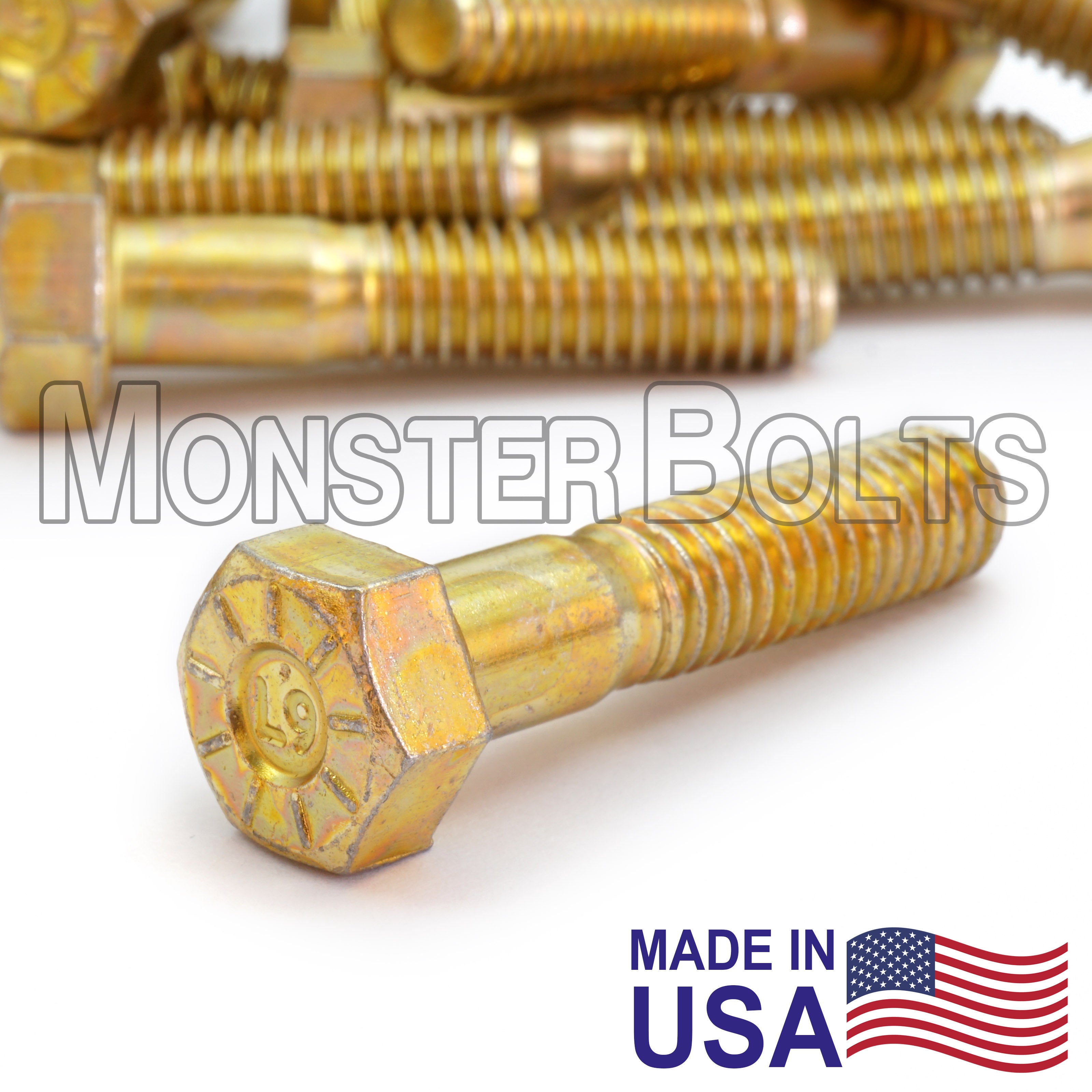

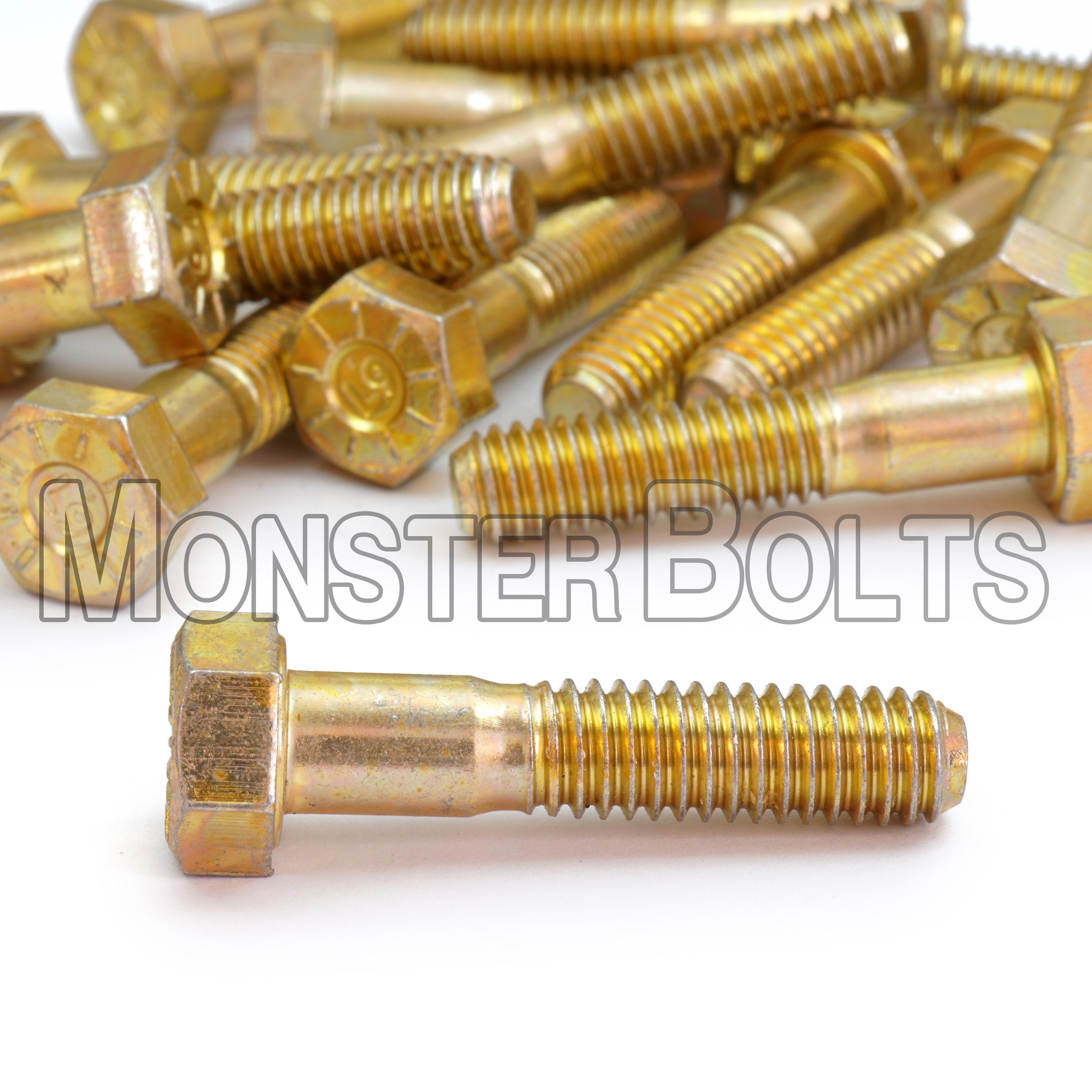

L9 fasteners represent the pinnacle of SAE grading for hex cap screws, designed to withstand extreme loads and stress conditions. Identified by "L9" and nine radial lines on the head, these screws ensure easy recognition of their superior grade. The fine (UNS) thread design offers specialized threading for specific applications requiring precise adjustments and higher tensile strength. The Zinc Yellow CR+3 plating provides enhanced corrosion resistance and a professional finish.

Enhanced Design Features:

• Increased Head Height: Slightly higher head height compared to standard hex cap screws per ASME B18.2.1, allowing for better wrench contact and reduced slippage.
• Radius Under Head: Adds strength by reducing stress concentrations, minimizing the risk of fatigue failure.
• Smooth Washer-Bearing Surface: Ensures even load distribution and reduces the risk of loosening under dynamic loads.

Key Mechanical Properties:

• Hardness: 38 to 42 HRC (Rockwell Hardness Scale)
• Surface Hardness: Maximum HR15N 81.5
• Tensile Strength: Minimum 180,000 PSI, Maximum 200,000 PSI
• Yield Strength: 155,000 PSI Minimum
• Proof Load Strength: 145,000 PSI
• Elongation: 12% Minimum
• Reduction of Area: 35% Minimum
• Head Marking: Identified by "L9" and nine radial lines for easy grade recognition

Advanced Surface Finish:

• Zinc Plated Yellow Finish: Conforms to ASTM F1941/F1941M Fe/Zn 5CN specifications, with a minimum plating thickness of 5 microns (0.0002").
• Yellow Trivalent (Cr+3) Coating: Provides superior corrosion resistance, offering up to 96 hours of protection before red rust appears in salt spray testing.

Technical Specifications:

• Size: 1"-14 (Diameter: 1.000", Threads per Inch: 14)
• Thread Type: Fine Thread (UNS - Unified National Special)
• Material: High-Grade Alloy Steel (Grade L9)
• Finish: Zinc Yellow CR+3 Plating for enhanced corrosion resistance
• Tensile Strength: Minimum 180,000 PSI
• Standards: Meets or exceeds SAE J429 Grade L9 and ASME B18.2.1 specifications
• Manufactured In: United States of America

Ideal Applications:

Our 1"-14 L9 Hex Head Cap Screws with fine (UNS) threads are perfect for applications requiring specialized threading for precise adjustments and maximum strength. They are ideal for high-vibration environments, precision machinery, heavy-duty equipment, and other demanding industrial applications where failure is not an option.
