Monster Bolts

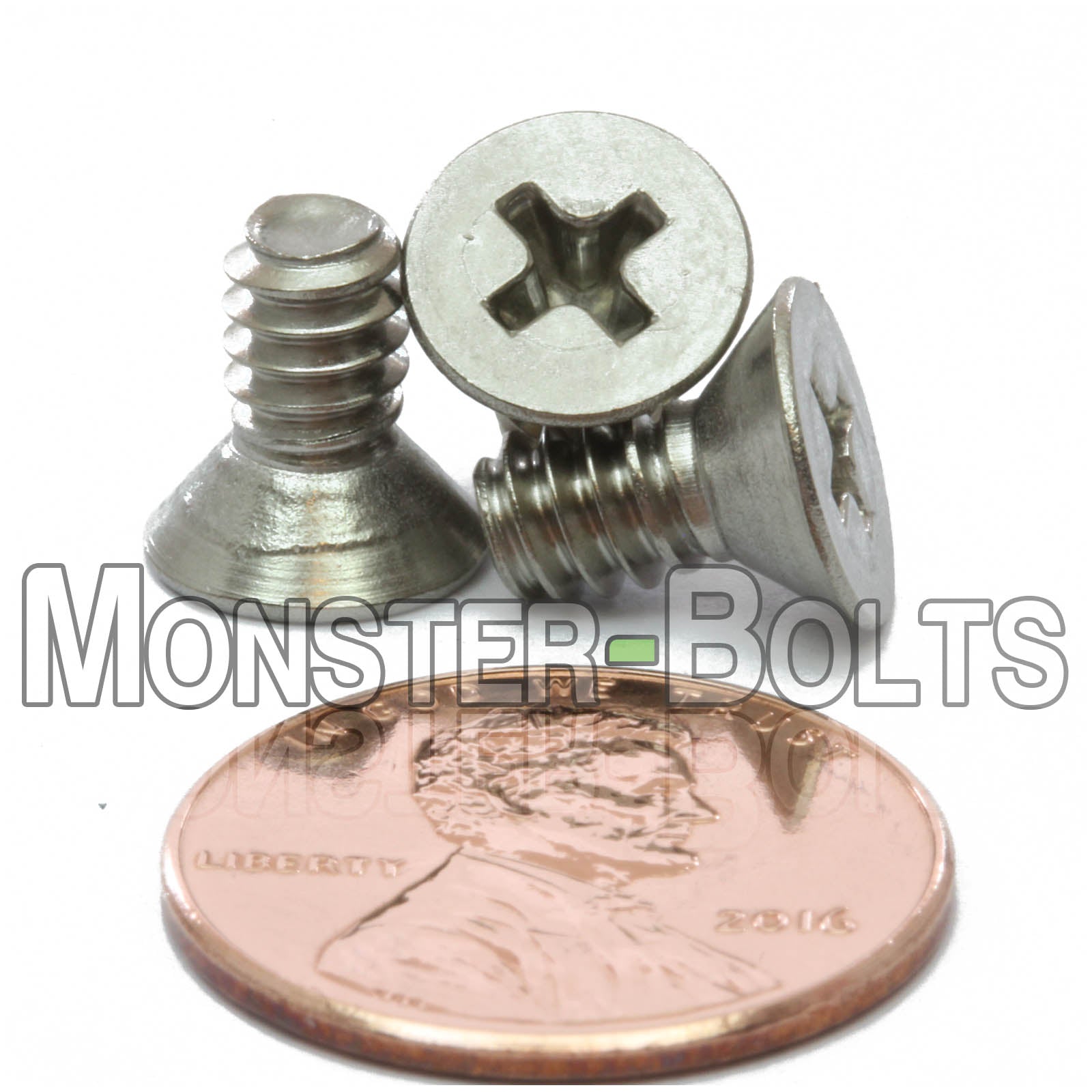

Length: #10-24 x 3/8"
Package Quantity: 10
Price:
$1.10

Description

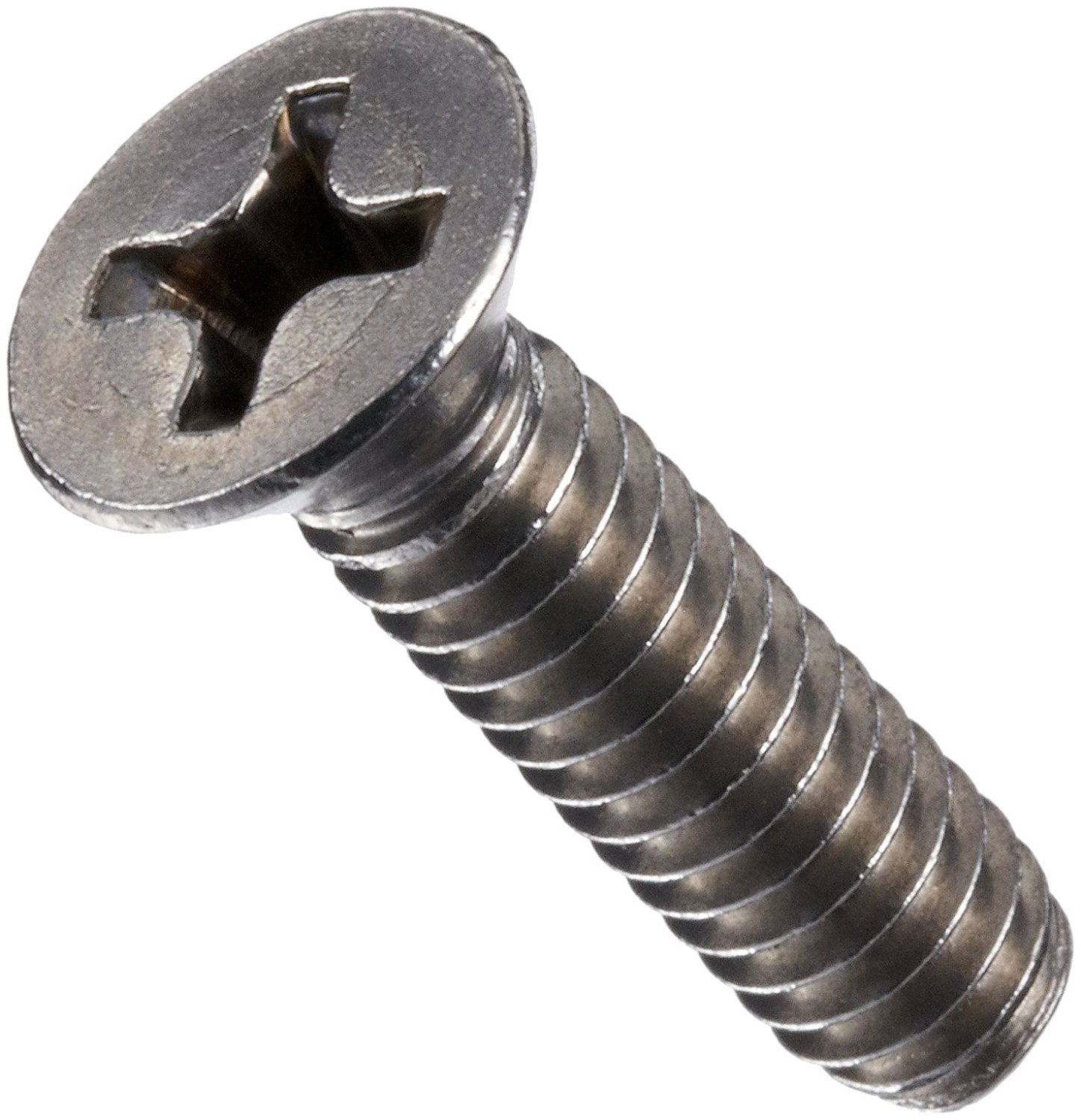

#10-24 Phillips  Flat Head Machine screws. These are made from  Stainless Steel 18-8.
Diameter:  #10
Thread  Size:  24 TPI - Coarse (Standard) Thread
Length: Countersunk screws measured 'overall length' See diagram below ("L")
Drive: Phillips #2
Type:  Flat  Head Machine Screw
Matching Nut & Washer:  #10-24 - Available here
System of Measurement:  U.S. / Inch
Material:  Stainless Steel 18-8
Specifications:  ASME B18.6.3-2002 & SAE J82

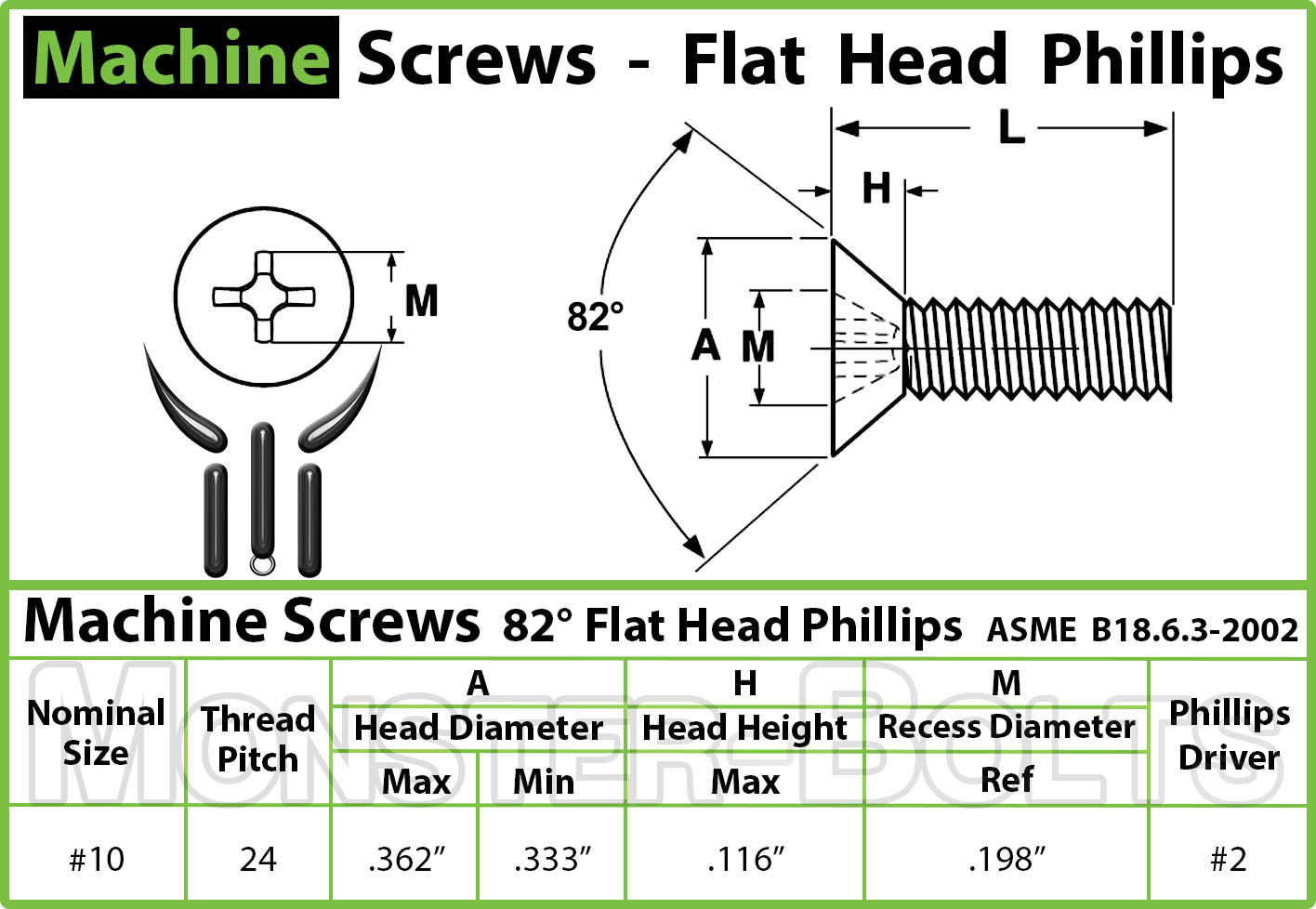

Flat Head Machine Screw #10-24 Size Chart
