Monster Bolts
Length: #10-32 x 3/8"
Package Quantity: 10
Price:
$1.34

Description

#10-32 Phillips Flat Head Machine screws. These are made from Stainless Steel 18-8.

Diameter: #10
Thread Size: 32 TPI - Fine Thread
Length: Countersunk screws measured 'overall length' See diagram below ("L")
Drive: Phillips #2
Type: Flat Head Machine Screw
Matching Nut & Washer: #10-32 - Available here
System of Measurement: U.S. / Inch
Material: Stainless Steel 18-8
Specifications: ASME B18.6.3-2002 & SAE J82

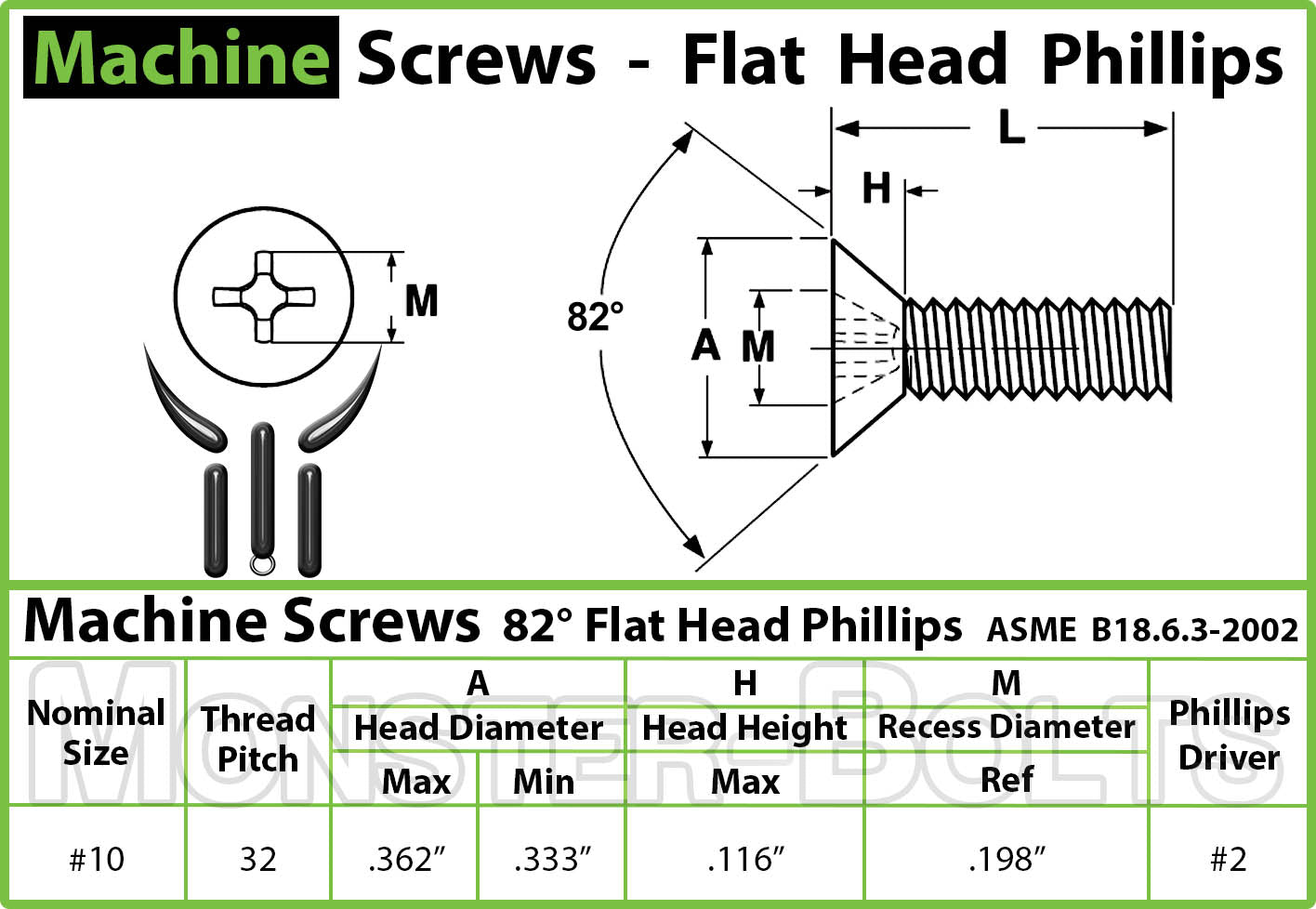

Flat Head Machine Screw #10-32 Size Chart
