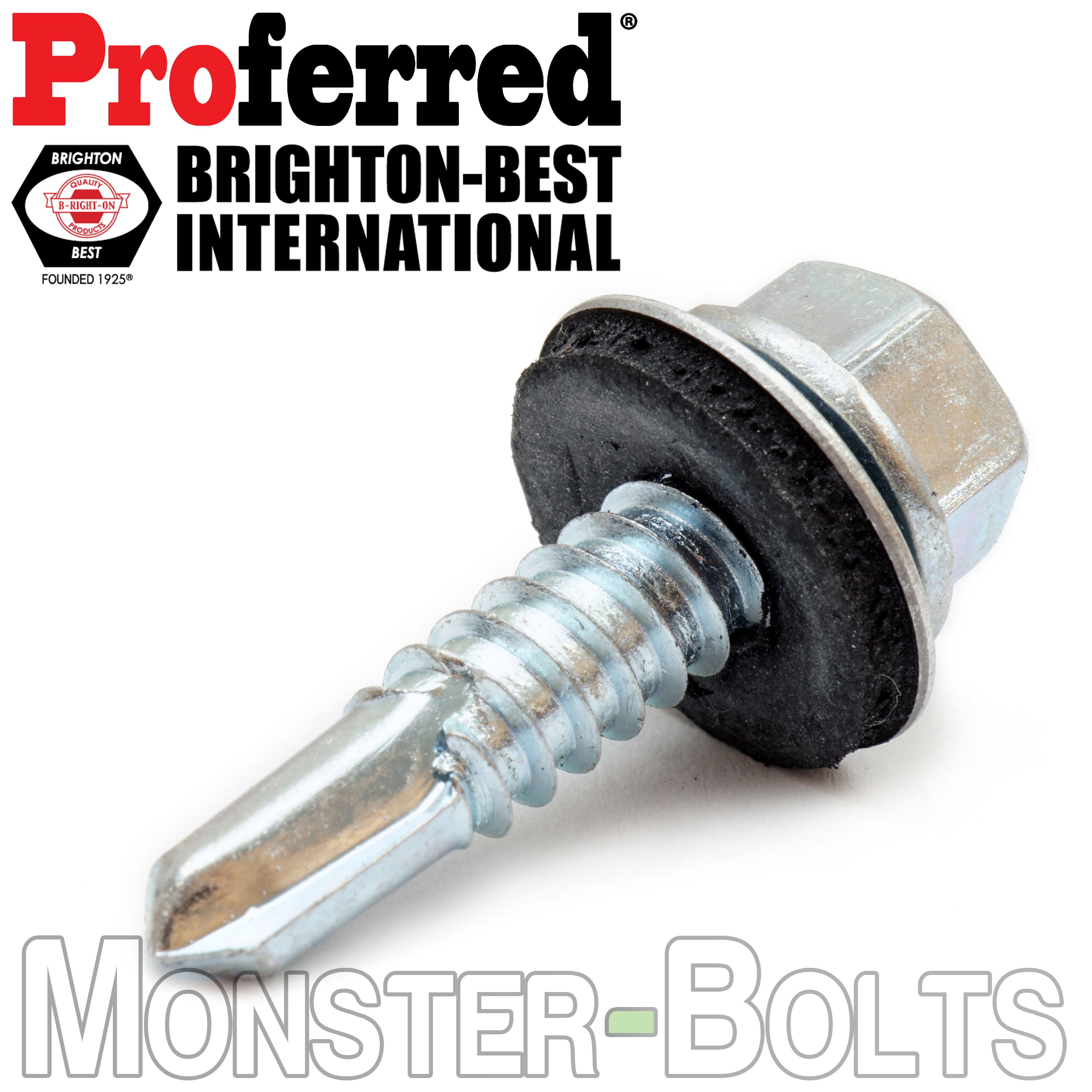

#10 Indent Hex Washer Head Self-Drilling Screws with EPDM Sealing Washers

Premium Steel with Zinc Cr+3 Coating (RoHS Compliant)

Introducing our high-quality #10 Indent Hex Washer Head (HWH) Unslotted Self-Drilling Sheet Metal Screws with EPDM sealing washers. Manufactured by Brighton-Best International's Proferred® line, these screws are made from premium steel with a Zinc Cr+3 plating, ensuring excellent corrosion resistance and compliance with RoHS standards. Each screw head is stamped to guarantee authentic Brighton-Best Proferred products, so you can buy with confidence.

Key Features

• Diameter: #10 / 0.190 inch
• Thread Size: 16 Threads Per Inch (TPI)
• Drive: External Hex, 5/16 inch – Available Here
• Type: Self-Drilling Sheet Metal Roofing Screw with Bonded EPDM Sealing Washer
• Material and Plating: Premium Steel, Zinc Cr+3 (Washer: EPDM Rubber and Steel)
• System of Measurement: Inch (Imperial / US)
• Head Style: Indent Hex Washer Head (Unslotted)
• Hex Size (Across Flats): 5/16 inch (Hex Drive Size)
• Head Diameter (Max, Min): Max 0.414 inch, Min 0.384 inch
• Head Height (Max, Min): Max 0.151 inch, Min 0.124 inch
• EPDM Washer Diameter: 5/8 inch (0.625 inch)
• Standards: Compliant with ASME B18.6.3, IFI-113

Material Properties

These screws are made from premium steel, offering:

• High Strength: Durable construction suitable for demanding applications.
• Excellent Workability: Easy to install with standard tools.
• Zinc Cr+3 Coating: Provides superior corrosion resistance and an attractive finish.

Ideal Applications

• Roofing and Siding Installations
• Metal Building Construction
• HVAC Ductwork
• Automotive Sheet Metal Work
• General Metal Fabrication

Why Choose These Screws?

• Authentic Brighton-Best Quality: Heads stamped ensure genuine Brighton-Best Proferred products.
• Self-Drilling Capability: Designed to drill through metal without pre-drilling, saving time and effort.
• Corrosion Resistance: Zinc Cr+3 plating provides excellent protection against rust and corrosion, suitable for indoor and outdoor use.
• EPDM Sealing Washer: Creates a watertight seal, ideal for roofing and exterior applications where moisture protection is crucial.
• RoHS Compliant: Environmentally friendly Zinc Cr+3 plating complies with RoHS standards.

Installation Tips

For optimal performance when self-drilling through metal:

• Use a suitable drill or driver with the appropriate speed and pressure to prevent overheating the screw tip.
• Ensure the screw is perpendicular to the work surface to prevent wandering.
• A magnetic nutsetter can aid in quick and easy installation.

Need the Right Tools?

Use a 5/16 inch Magnetic Nutsetter for efficient installation. Available here.

Order Yours Today

Upgrade your fastening solutions with our #10 Indent Hex Washer Head Self-Drilling Screws with EPDM sealing washers. Perfect for projects requiring a secure, watertight seal and reliable performance. Order now and benefit from fast shipping and exceptional customer service!

✔️ Trusted by professionals in construction and metalworking industries

✔️ Genuine Brighton-Best Proferred products

✔️ Compliant with ASME B18.6.3, IFI-113 standards
