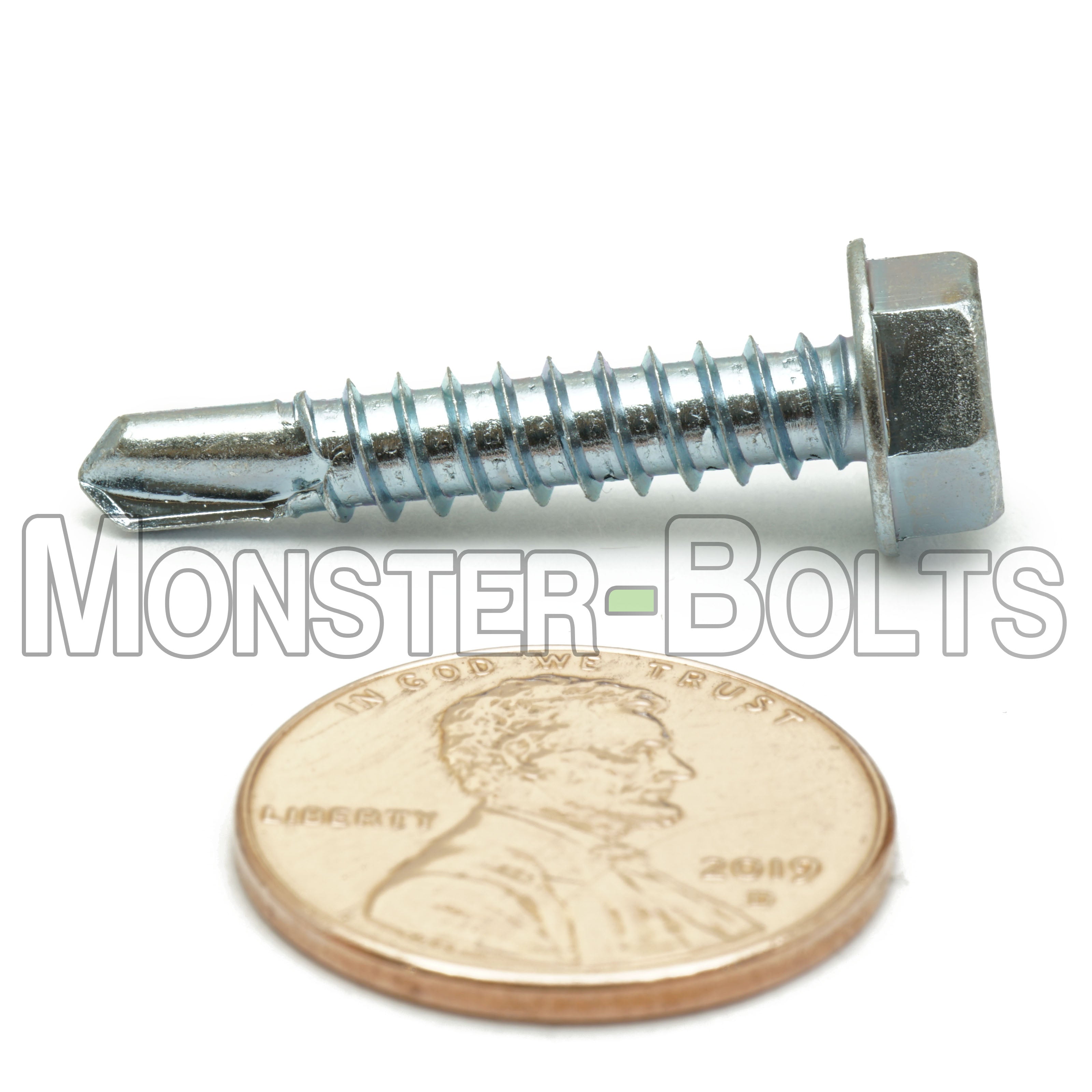

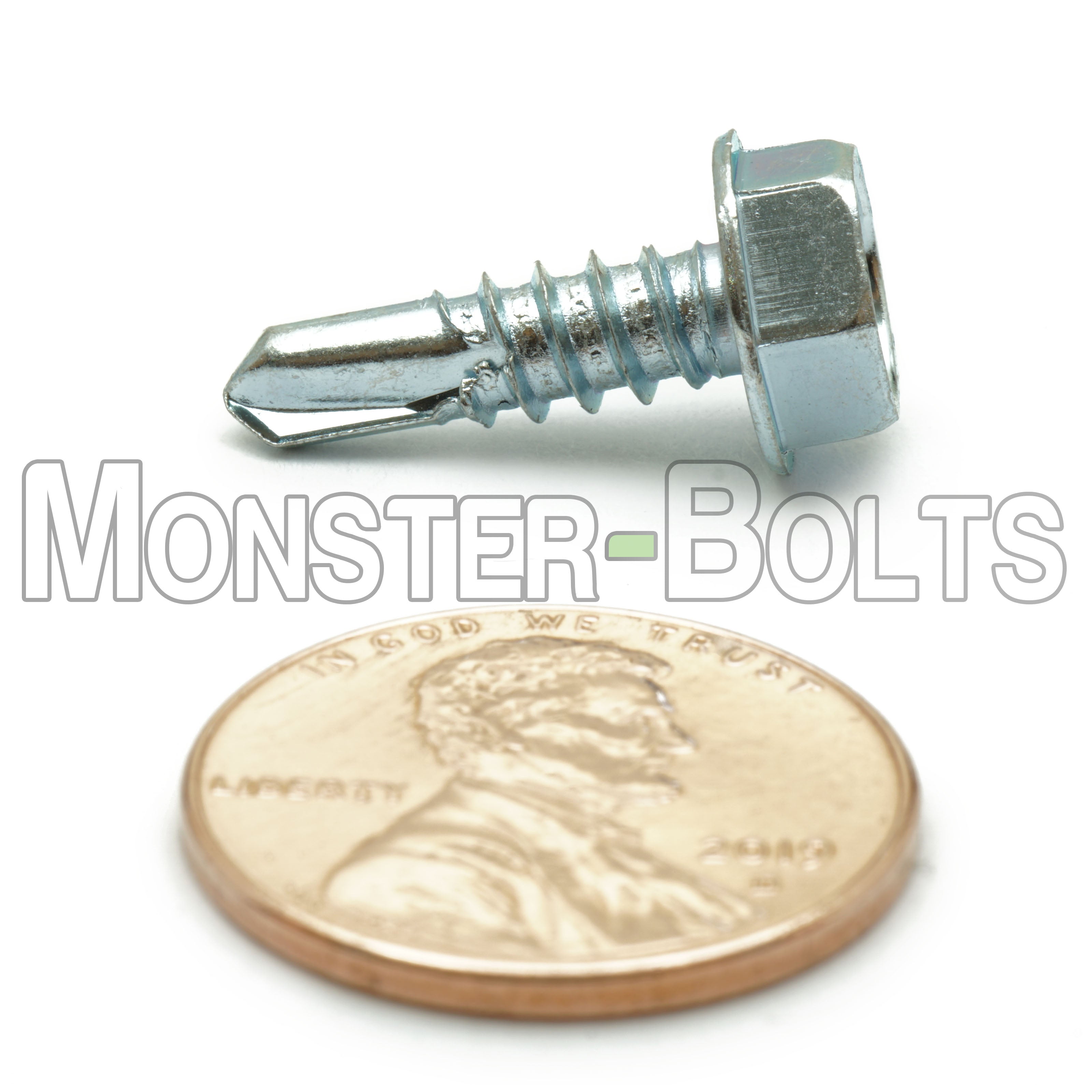

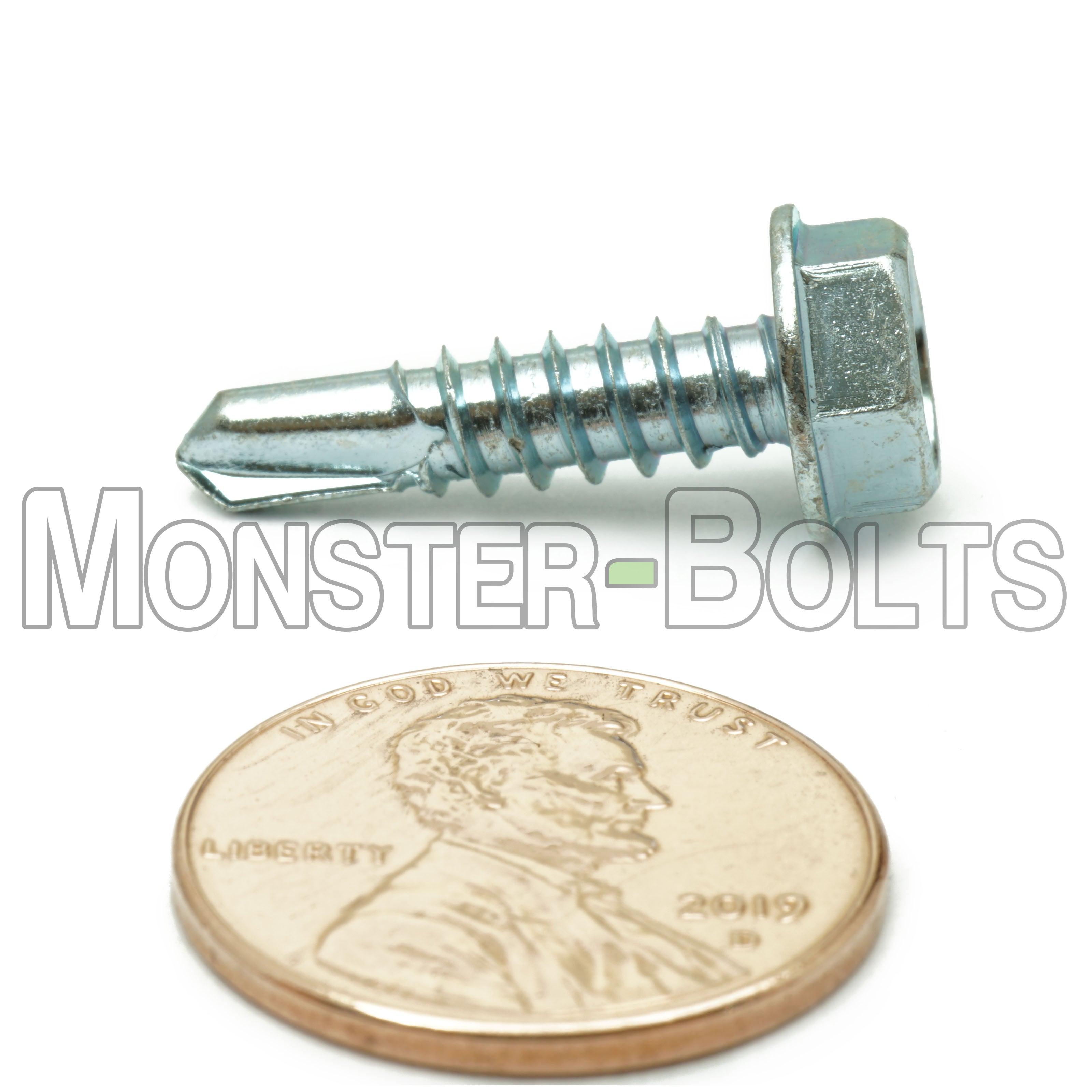

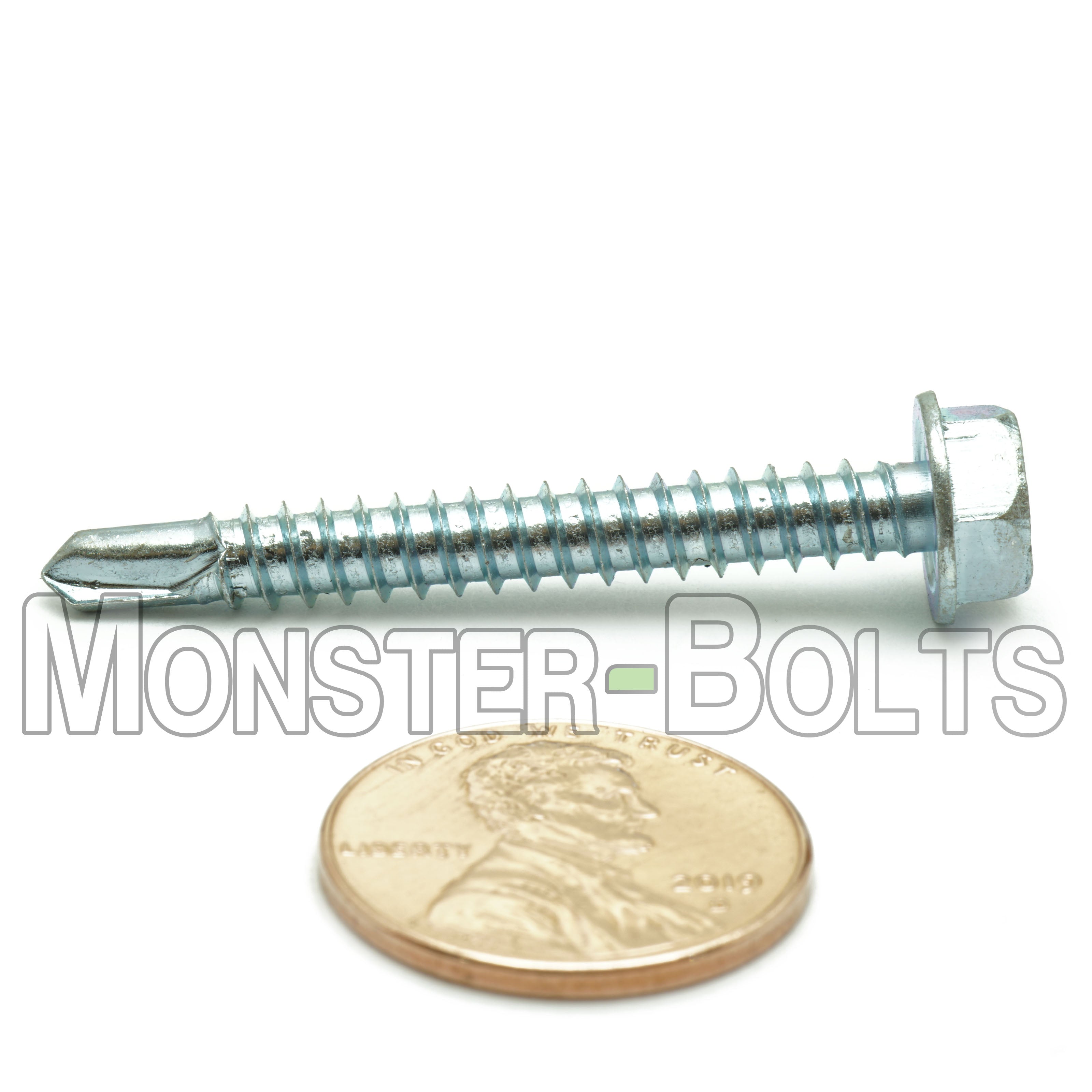

#10 Indent Hex Washer Head Self-Drilling Sheet Metal Screws

Brighton-Best Proferred® Premium Steel with Zinc Cr+3 Coating (RoHS Compliant)

Introducing our high-quality #10 Indent Hex Washer Head (HWH) Unslotted Self-Drilling Sheet Metal Screws with a #3 drill point. Manufactured by Brighton-Best International's Proferred® line, these screws are made from premium steel with a Zinc Cr+3 plating, providing excellent corrosion resistance and compliance with RoHS standards. Please note that all lengths have a #3 drill point except for the 1/2 inch length, which has a #2 drill point due to its shorter length.

Key Features

• Diameter: #10 / 0.190 inch
• Thread Size: 16 Threads Per Inch (TPI)
• Manufacturer and Product Line: Brighton-Best, Proferred®
• Drive: External Hex, 5/16 inch – Available Here
• Material and Plating: Steel, Zinc Cr+3 (RoHS Compliant)
• Type: Self-Drilling Sheet Metal Screw with #3 Drill Point (#2 for 1/2 inch length)
• System of Measurement: Inch (Imperial / US)
• Head Style: Indent Hex Washer Head (Unslotted)
• Hex Size (Across Flats): 5/16 inch (Hex Drive Size)
• Head Diameter (Max, Min): Max 0.414 inch, Min 0.384 inch
• Head Height (Max, Min): Max 0.151 inch, Min 0.124 inch
• Washer Face Thickness (Max, Min): Max 0.031 inch, Min 0.019 inch
• Standards: Compliant with ASME B18.6.3, IFI-113

Material Properties

These screws are made from premium steel with Zinc Cr+3 plating, offering:

• High Strength: Durable construction suitable for demanding applications.
• Excellent Corrosion Resistance: Zinc Cr+3 plating provides superior protection against rust and corrosion.
• RoHS Compliant: Environmentally friendly coating that meets RoHS standards.

Ideal Applications

• Metal Building Construction
• Roofing and Siding Installations
• HVAC Ductwork
• Automotive Sheet Metal Work
• General Metal Fabrication

Why Choose These Screws?

• Authentic Brighton-Best Quality: Manufactured by Brighton-Best International's Proferred® line.
• Self-Drilling Capability: Designed to drill through metal without pre-drilling, saving time and effort.
• Versatile Drill Points: All lengths have a #3 drill point except for the 1/2 inch length, which has a #2 drill point for optimal performance.
• Corrosion Resistance: Zinc Cr+3 plating offers excellent protection against rust, suitable for indoor and outdoor use.
• RoHS Compliant: Environmentally friendly plating meets RoHS standards.

Installation Tips

For optimal performance when self-drilling through metal:

• Use high pressure and low speed to prevent wearing out the self-drilling tip.
• Ensure the screw is perpendicular to the work surface to prevent wandering.
• A magnetic nutsetter can aid in quick and easy installation.

Note: The 1/2 inch length screws have a #2 drill point due to their shorter length.

Need the Right Tools?

Use a 5/16 inch Magnetic Nutsetter for efficient installation. Available here.

Order Yours Today

Enhance your fastening solutions with our #10 Indent Hex Washer Head Self-Drilling Screws. Perfect for projects requiring strength, reliability, and efficient installation. Order now and benefit from fast shipping and exceptional customer service!

✔️ Trusted by professionals in construction and metalworking industries

✔️ Manufactured by Brighton-Best International's Proferred® line

✔️ Compliant with ASME B18.6.3, IFI-113 standards
