Description

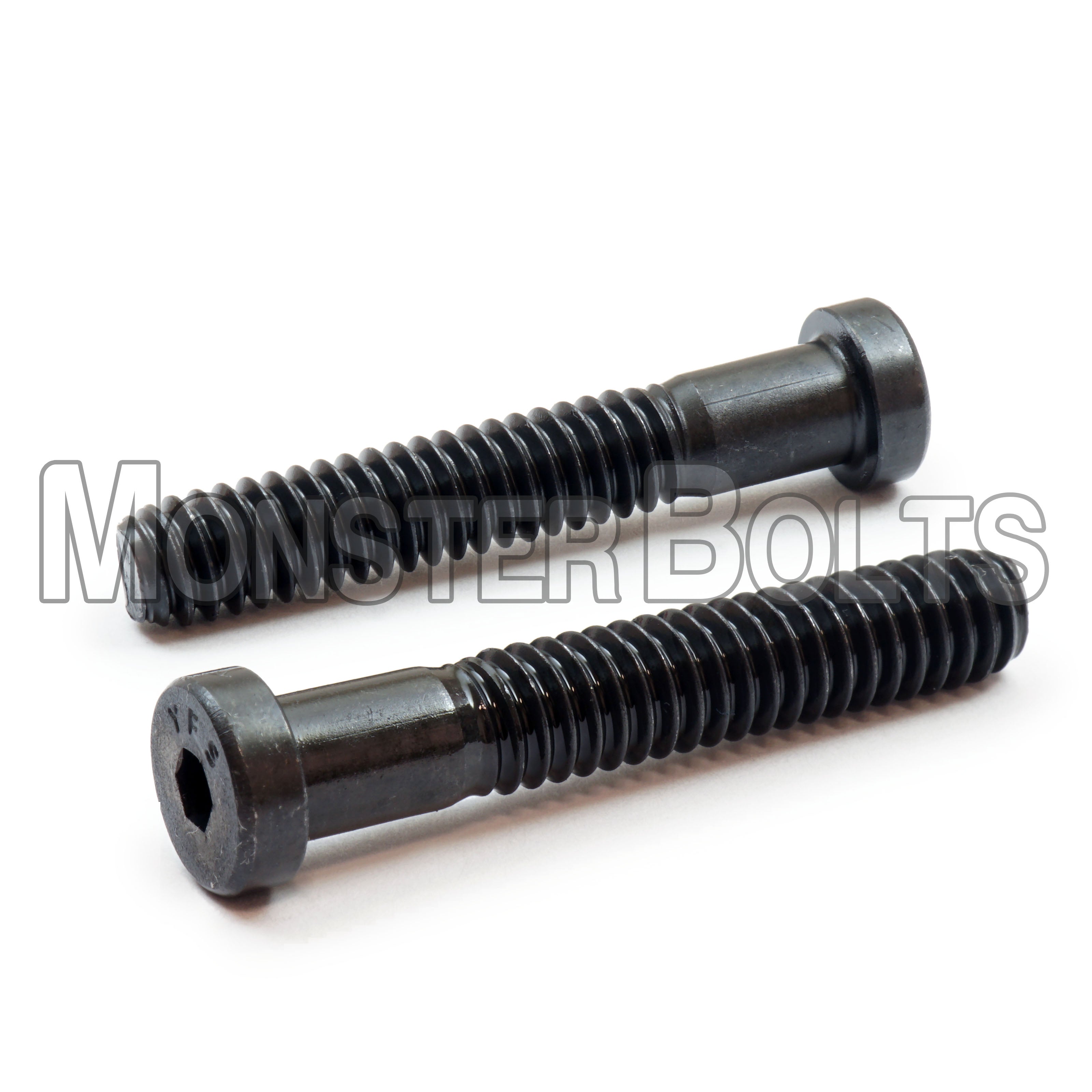

M5-0.80 Low Head Socket Cap Screws
Class 10.9 Black Alloy Steel with Thermal Black Oxide Coating
Our M5-0.80 Low Head Socket Cap Screws are manufactured from high-strength Class 10.9 black alloy steel and feature a thermal black oxide coating for enhanced corrosion resistance. The low-head socket design offers a reduced head height compared to standard socket cap screws, making them ideal for applications where space is limited or a flush finish is required.
Why Choose Low Head Socket Cap Screws?
- Reduced Head Height: Allows the screw to sit flush or nearly flush with the surface, minimizing obstruction and providing a sleek appearance.
- Ideal for Limited Space: Perfect for assemblies with restricted overhead clearance where standard socket cap screws won't fit.
- High Strength: Class 10.9 alloy steel provides excellent tensile strength for demanding applications.
- Corrosion Resistance: Thermal black oxide coating enhances resistance to corrosion and wear.
Ideal Applications
- Automotive Assemblies
- Industrial Machinery
- Aerospace Components
- Electronics Enclosures
- Robotics and Automation
Considerations
While low head socket cap screws offer numerous advantages, consider the following:
- Lower Preload Capacity: Cannot be preloaded as high as standard socket cap screws due to reduced head height.
- Not for High Vibration: Not recommended for applications with significant dynamic loads or vibrations.
- Tool Engagement: Use appropriate tools to prevent cam-out due to the smaller hex socket depth.
Note: (PT) = Partial Thread

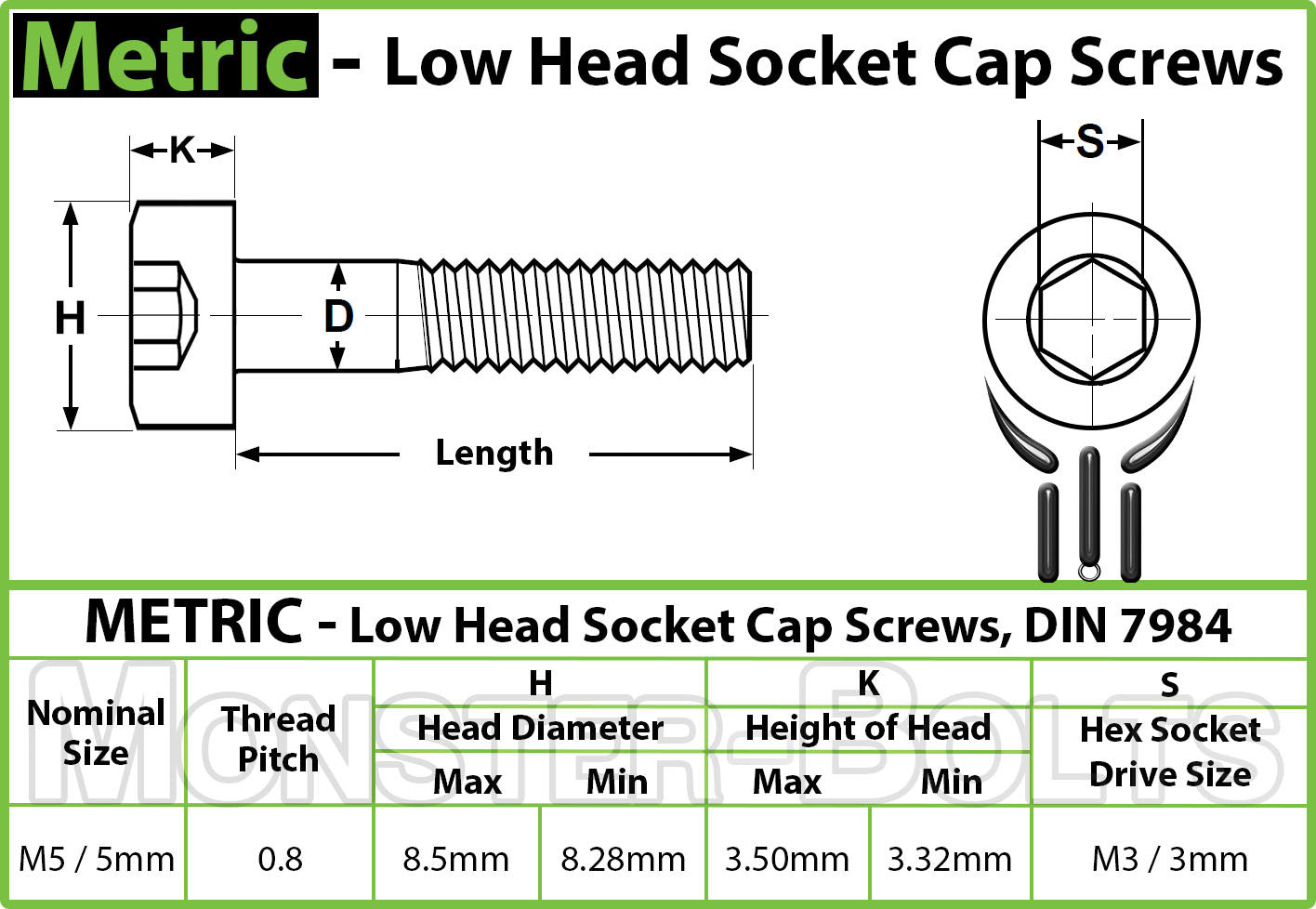

Key Features
- Diameter: M5 / 5mm
- Thread Size: 0.80 - Coarse (Standard) Thread
- Drive: M3 Hex Key – Available here
- Type: Low Head Socket Cap Screw
- Material: Class 10.9 Black Alloy Steel
- Finish: Thermal Black Oxide Coating
- System of Measurement: Metric
- Standards: Compliant with DIN 7984
Matching Products
- Matching Nuts: M5 Nuts – Available here
- Matching Washers: M5 Washers – Available here
Upgrade Your Project Today
Don't let space limitations hinder your designs. Choose our high-strength M5-0.80 Low Head Socket Cap Screws with thermal black oxide coating for a reliable and sleek fastening solution. Order now to enjoy fast shipping and exceptional customer service!
✔️ Trusted by professionals worldwide
✔️ Compliant with DIN 7984 standards
Frequently Asked Questions
Q: What is the advantage of the thermal black oxide coating?
A: The thermal black oxide coating enhances corrosion resistance and provides a sleek, black finish that reduces glare and reflection.
Q: Can these screws be used in outdoor applications?
A: While the black oxide coating offers some corrosion resistance, for prolonged outdoor use or in highly corrosive environments, stainless steel screws may be more suitable.
Looking for different sizes or materials? Explore our full range of Socket Cap Screws.
